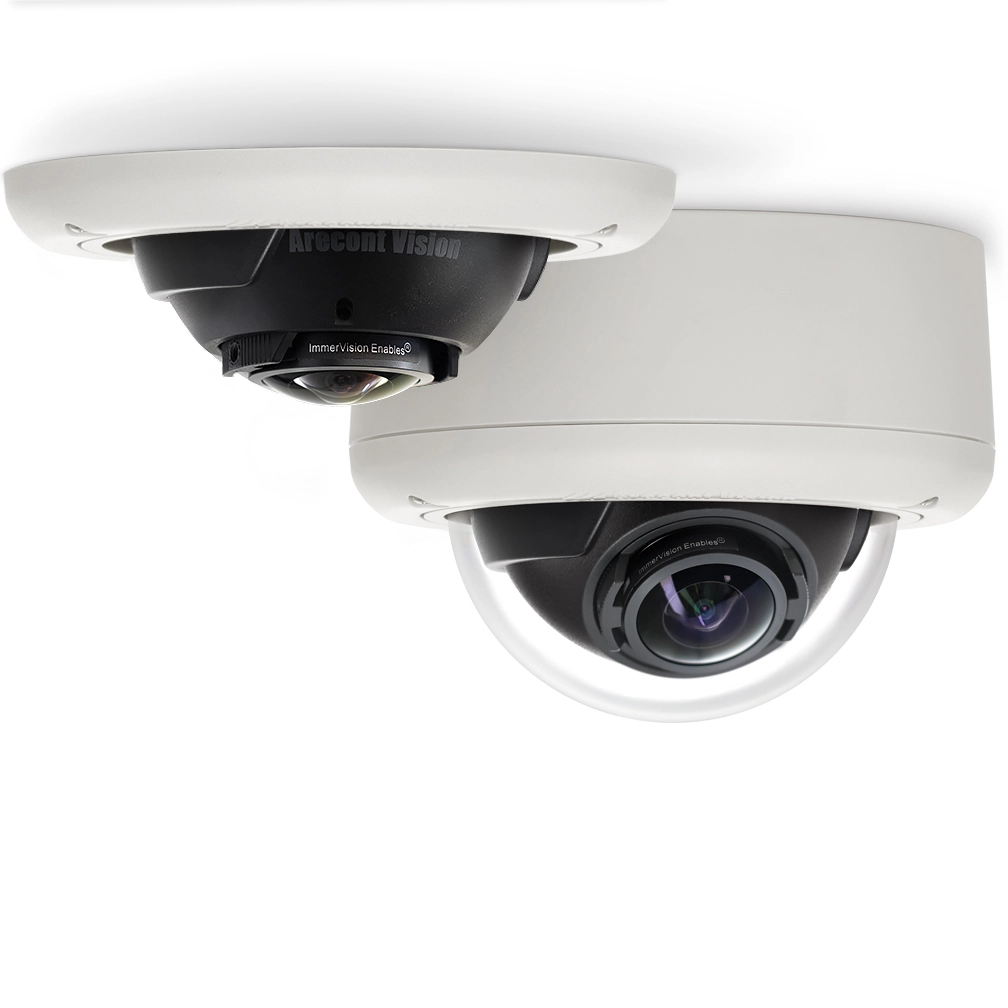

The AV5245DN-01-W MegaBall G2 5-megapixel network camera is part of Arecont Vision’s full line of H.264 MegaBall cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 2592 (H) x 1944 (V) megapixel resolution at full video frame rates of 14 frames per second (fps). The AV5245DN-01-W camera line provides an all-in-one indoor 3" ball shape solution with integrated 5-megapixel camera, 0.98mm (Short axis) &1.12mm (Long axis) Panomorph Lens and wall mount enclosure. With the features of privacy masking, extended motion detection and flexible cropping, the AV5245DN-01-W is a high sensitivity, PoE (IEEE 802.3af) compliant day/night camera with black dome configurations. Built with Arecont Vision’s massively-parallel MegaVideo processing technology, this camera offers more angular resolution in peripheral areas of a scene than conventional fisheye lenses.
The camera's interface allows for an intuitive, fast, and easy configuration; while the Free AV IP Utility tool allows users to quickly configure multiple cameras at one time. The MegaBall G2 is ONVIF Profile S (Open Network Video Interface Forum) compliant, providing interoperability between network video products regardless of manufacturer.
Features:
- Integrated ImmerVision Panomorph Solution for 180° and 360° Field of View
- Binning Mode for Strong Low Light Performance
- True Day/Night Functionality with Mechanical IR Cut Filter
- Tamper-Resistant Housing
- Installer Friendly Cable Management, 3-Axis Adjustment, In-Ceiling and Surface Mount Dome
- PoE and Auxiliary Power: 12–48V DC/24V AC
- Dual Encoder H.264/MJPEG
- Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming and Forensic Zooming
- ONVIF Profile S Conformance
- Reduced Overall System Cost
Programmability
| Optics | Remote focus, remote zoom, and P-iris control (PM models) | |
| Low-Light Performance | STELLAR | 1.2MP models |
| Pixel Binning Mode | 3MP and 5MP models | |
| Adjustable IR | IR models - beam angle and LED | |
| intensity manually changeable | ||
| Programmable | Controls motion blur, 1ms–500ms | |
| Shutter Speed | ||
| Motion Detection | Real-time, 1024 detection zones | |
| Privacy Masking | Unlimited | |
| Casino Mode™ | Maintains 30fps or higher (AV2245 model) | |
| Flexible Cropping | Resolution windowing down to 1x1 pixel for JPEG and 2x2 | |
| pixels for H.264 | ||
| Backlight Compensation | Auto multi-matrix white balance | |
| Flicker Control | 5Hz–255Hz adjustable | |
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) | |
| Scaling | Non-integer scaling down to 128x96 | |
| (See Scaling Resolution Chart on page 3) | ||
(Programmability Cont.)
| Wide Dynamic Range | Auto adjustment between WDR and LDR modes (WDR models) |
| Efficiency | SNAPstream™ (Smart Noise Adaptation and Processing) |
| Bit rate and bandwidth limitation control | |
| Sharpness | Selectable enhancement level |
| Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint |
| Electronic pan, tilt, zoom (PTZ) | |
| Password | 16-digit ASCII character password |
Data Transmission
| Compression Type | H.264 (MPEG-4, Part 10)/Motion JPEG |
| 21 levels of quality | |
| Transmission Protocols | HTTP, HTTPS†, IPv4, IPv6, QoS, 802.1x, RTSP, RTP/TCP, |
| RTP/UDP, TFTP, DHCP | |
| 100Base-T Ethernet network interface | |
| Multi-Streaming | 8 non-identical streams |
Compliance
| Industry Standard | ONVIF Profile S conformant |
| Listings | UL (CB) |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | (CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, |
| EN60950 |
Environmental
| Operating Temperature | -5°C (23°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -20°C (-4°F) to +60°C (140°F) |
General Electrical
| Alarm Input | General purpose opto-coupled (except PMIR models) |
| Alarm Output | General purpose opto-coupled |
| Power Over Ethernet | PoE 802.3af, Class 3 |
| Total PoE solution (no external power requirement) | |
| Auxiliary Power | 12–48V DC, 24V AC |
Max Power Consumption (Watts DC Power)
| Model Number | PM | PMIR | 01-D (Panomorph) |
| AV1245 | – | 8.2W | – |
| AV2245 / AV3245 | 6.7W | 8.1W | – |
| AV2246 / AV3246 | 7.8W | 9.4W | – |
| AV5245 | 7.1W | 8.7W | 5.7W |
| IR Illuminator | (PMIR Models) | |||||
| LEDs | 12 pcs 850nm LEDs with Adjustable IR | |||||
| Projection Distance | 50ft (15m) max | |||||
| Projection Angle | 60° and 80° | |||||
| Audio Electrical (-A Models Only) | ||||||
| Streaming | Two-way | |||||
| Compression | G.711 PCM 8 kHz | |||||
| Input/Output | Integrated microphone/line output | |||||
| Mechanical | ||||||
| Casing | -B | Surface mount with die-cast aluminum housing | ||||
| -D | Plastic surface/in-ceiling dome with acrylic bubble | |||||
| Gimbal | Easy 3-axis camera adjustment with 360° pan, 90° tilt | |||||
| and 360° z-axis | ||||||
| Dimensions | -B (bell) | Ø 3.93" (100mm) x 3.24" H (87mm) | ||||
| (See Dimensions) | -D (in-ceiling) | Ø 5.1" (130mm) x 1.74" H (44mm) | ||||
| -D (surface w/ | Ø 5.1" (130mm) x 3.85" H (98mm) | |||||
| bubble) | ||||||
| Weight | Camera Unit | Packaged | ||||
| -B | 1.15lbs (0.52kg) | 1.65lbs (0.75kg) | ||||
| -D | 1.15lbs (0.52kg) | 1.7lbs (0.77kg) | ||||
| Dome Color | Light gray dome | |||||
