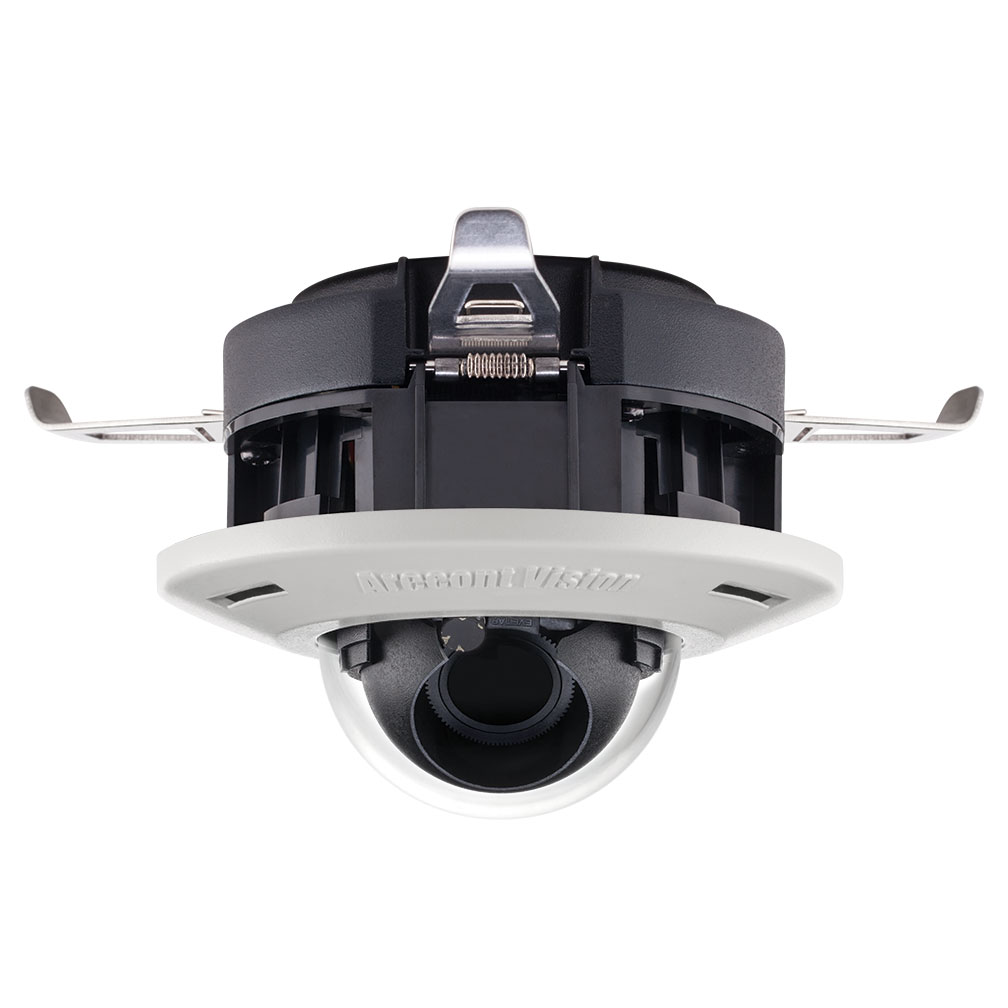

Arecont Vision - AV5756DN-F - 1080p 1920x1080 H.265/H.264 2.8mm Lens 30fps Contera Flush Mount MicroDome LX
Part number:
AV5756DN-F
Price:

1080p Contera Flush Mount MicroDome LX 1920x1080 H.265/H.264/M-JPEG, WDR 120dB, NightView, SNAPstream+, 2.8mm Lens, 30fps, Remote Focus, Defog, SD Card, Onvif, PoE, NO LENS (2.1mm to 16mm)



Features:

  •  1080p (2.1MP) Resolution
  •  Multiple Lens Options Available (Sold Separately)
  •  Remote Focus Module
  •  Easily Adjustable 3-Axis Gimbal
  •  Ultra Low-Profile Design / Small Size
  •  SNAPstream+™ Capability to Reduce Bandwidth without Impacting Image Quality
  •  NightView™ for Strong Low Light Performance
  •  True Day/Night Functionality with Mechanical IR Cut Filter
  •  Enhanced WDR™ up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
  •  CorridorView™ Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
  •  Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, and Scaling
  •  On-Screen Display (OSD)
  •  Defog Technology
  •  Triple Encoder: H.265/H.264/MJPEG
  •  Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
  •  All-in-One PoE Solution
  •  Audio In / Out (Accessory Sold Separately)
  •  Integrated Microphone
  •  Spring-Arm Design for Very Easy Installation
  •  Tamper-Resistant Housing



Model





AV5756DN-F











Image Sensor



1080p (2.1MP) CMOS Progressive











Optical Format



1/2.8"













Minimum



Color (Day Mode)

0.04 Lux











Illumination



B/W (Night Mode)

0.004 Lux

















Full FOV Resolution

1920 H x 1080 V









Scaling (See Scaling Resolutions Below)

Yes











IR Illumination



No









Dynamic Range

120dB











Frame



Single Stream

Up to 30fps (1080p)



Rates1











Multi-Stream

Up to 30fps (1080p) + 20fps (1080p)

























Up to 30fps (1080p) + 30fps (720p)









+ 30fps (VGA)













Lens3



Fixed Iris



















H-FOV

106.7°



Programmability



Optics



M12 lens and remote focus module



Low-Light Performance

NightView technology







IR (IR-S models only)



Programmable

Auto/manual 0.1ms ~ 500ms



Shutter Speed







Motion Detection

Real-time, 1024 detection zones



Privacy Masking

Unlimited



Backlight Compensation

Auto



White Balance Mode

Auto/manual



Gain Control



Auto



Flicker Control*

5Hz–255Hz adjustable



Image Rotation

CorridorView (90°, 180°, and 270° image rotation) + mirror



Scaling

1080p

1920x1080, 1280x720, 960x540, 640x480, 640x360, 320x240













5MP

2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720,







960x540, 640x480, 640x360, 320x240



Wide Dynamic Range

Adjustment between WDR and LDR modes



Efficiency



SNAPstream+ (Smart Noise Adaptation and Processing)







Bit rate and bandwidth limitation control



Defog



Supported



Miscellaneous

Programmable brightness, contrast, sharpness, saturation, hue



Password



16-digit ASCII character password



On-Screen Display (OSD)

Time/date/camera name/custom text

Data Transmission

Compression Type

H.265/H.264 (MPEG-4, Part 10)/Motion JPEG

Bit Rate Control

64K–8000K

Smart Codec

Smart GOP/Smart ROI

Transmission Protocols

SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP,



RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS,



Zero Configure



10/100Base-T Ethernet network interface, RJ45

Multi-Streaming

2 x H.265/H.264 stream, 1 x M-JPEG stream

Users

Live viewing/Administrator for up to 10 clients



Event Management

Event Trigger

Motion detection, tampering detection, alarm in

Notifications

Send a message via e-mail/FTP/NAS, SD Card Recording,



Record JPG/MP4

Compliance

Industry Standard

ONVIF Profile S, G, and T conformant

Listings

UL60950-1, E489591

FCC Compliance

47 CFR 15 Class A

Environmental

RoHS, REACH, WEEE

Markings

CE: EN55032 Class A, EN55035, EN61000-3-2, EN61000-3-3,



IEC 62471 (IR-S Models Only)

Mechanical

IK-10 (EN62262), IP66 (EN60529)

Environmental

Operating Temperature

-5°C (23°F) to +50°C (122°F) (-F Models)



-20°C (-4°F) to +50°C (122°F) (IR-S Models)

Humidity

0% to 90% (non-condensing)

Storage Temperature

-40°C (-40°F) to +60°C (140°F)

General Electrical

Alarm Input/Output

1 input

(wet contact)/1 output (wet contact)

Power Over Ethernet

PoE IEEE 802.3af, Class 3





Total PoE solution (no external power)



Power Consumption

1080p



-F Models

5.5W PoE max



















IR-S Models

7.5W PoE max













5MP



-F Models

5.5W PoE max

















IR-S Models

7.5W PoE max











Audio Electrical

Streaming

Two-way

Compression

G.711 PCM 8 kHz

Input/Output

Line in4/ Line output

Microphone

Integrated (-F models)
