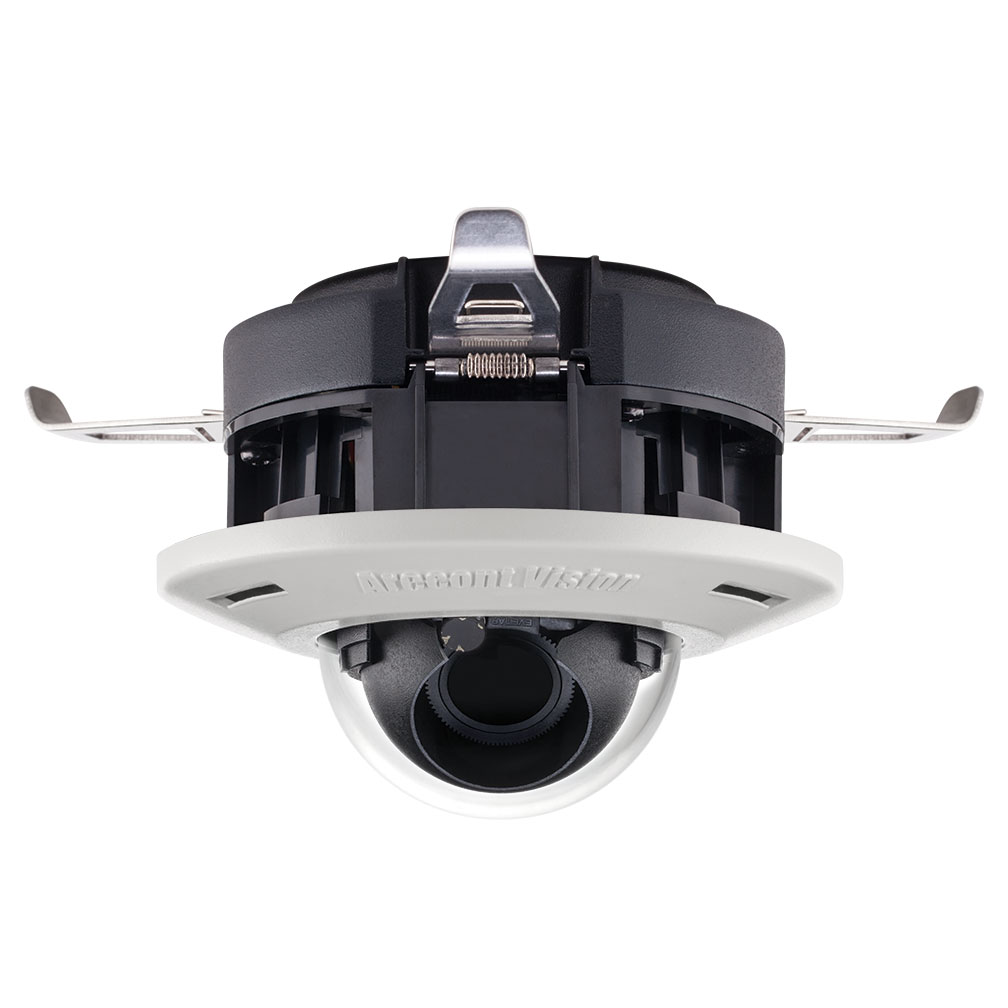

Arecont Vision - AV5756DN-F-NL - 5MP Contera Flush Mount MicroDome LX, 2.8mm Lens
Part number:
AV5756DN-F-NL
Price:
- • 5MP Resolution
- • Multiple Lens Options Available (Sold Separately)
- • Remote Focus Module
- • Easily Adjustable 3-Axis Gimbal
- • Ultra Low-Profile Design / Small Size
- • SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
- • NightView for Strong Low Light Performance
- • True Day/Night Functionality with Mechanical IR Cut Filter
- • Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- • CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, and Scaling
- • On-Screen Display (OSD)
- • Defog Technology
- • Triple Encoder: H.265/H.264/MJPEG
- • Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
- • All-in-One PoE Solution
- • Audio In / Out (Accessory Sold Separately)
- • Integrated Microphone
- • Spring-Arm Design for Very Easy Installation
- • Tamper-Resistant Housing
| Camera | |
|---|---|
| Image Sensor | 1080p (2.1MP) CMOS Progressive |
| Optical Format | 1/2.8" |
| Minimum Illumination | Color (Day Mode): 0.04 Lux |
| B/W (Night Mode): 0.004 Lux | |
| Full FOV Resolution | 1920 H x 1080 V |
| Scaling | Yes |
| IR Illumination | No |
| Dynamic Range | 120dB |
| Frame Rates | Single Stream: Up to 30fps (1080p) |
| Multi-Stream: Up to 30fps (1080p) + 20fps (1080p) | |
| Up to 30fps (1080p) + 30fps (720p) + 30fps (VGA) | |
| Lens | Fixed Iris, H-FOV = 106.7° |
| Programmability | |
| Optics | M12 lens and remote focus module |
| Low-Light Performance | NightView technology |
| IR Support | IR-S models only |
| Programmable Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | CorridorView (90°, 180°, and 270° image rotation) + mirror |
| Scaling | 1080p: 1920x1080, 1280x720, 960x540, 640x480, 640x360, 320x240 |
| 5MP: 2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720, 960x540, 640x480, 640x360, 320x240 | |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Defog | Supported |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP/Smart ROI |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure |
| Ethernet | 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send a message via e-mail/FTP/NAS, SD Card Recording, Record JPG/MP4 |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, and T conformant |
| Listings | UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | CE: EN55032 Class A, EN55035, EN61000-3-2, EN61000-3-3, IEC 62471 (IR-S Models Only) |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| Environmental | |
| Operating Temperature | -5°C (23°F) to +50°C (122°F) (-F Models) |
| -20°C (-4°F) to +50°C (122°F) (IR-S Models) | |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| General Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 Total PoE solution (no external power) |
| Power Consumption | 1080p -F Models: 5.5W PoE max |
| 1080p IR-S Models: 7.5W PoE max | |
| 5MP -F Models: 5.5W PoE max | |
| 5MP IR-S Models: 7.5W PoE max | |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz |
| Input/Output | Line in / Line output |
| Microphone | Integrated (-F models) |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
The MicroDome G2 multi-megapixel camera series offers resolutions of 1.2, 1080p, 3 or 5 megapixels. These true day/night cameras are available with 2.8-, 4-, 6-, 8-, 12-, or 16-millimetre lenses. With a mechanical IR cut filter for day and night use, this camera is ideal for applications with challenging lighting conditions at any time of day. The MicroDome G2 megapixel IP camera series is available with an indoor ceiling housing or a surface-mount IP66-rated housing for indoor and outdoor applications. Surface and flush-mount models feature vandal-resistant, IK-10-rated cast-aluminium housings with polycarbonate bubbles, making them capable of withstanding the equivalent of 55 kg (120 lbs) of force.
