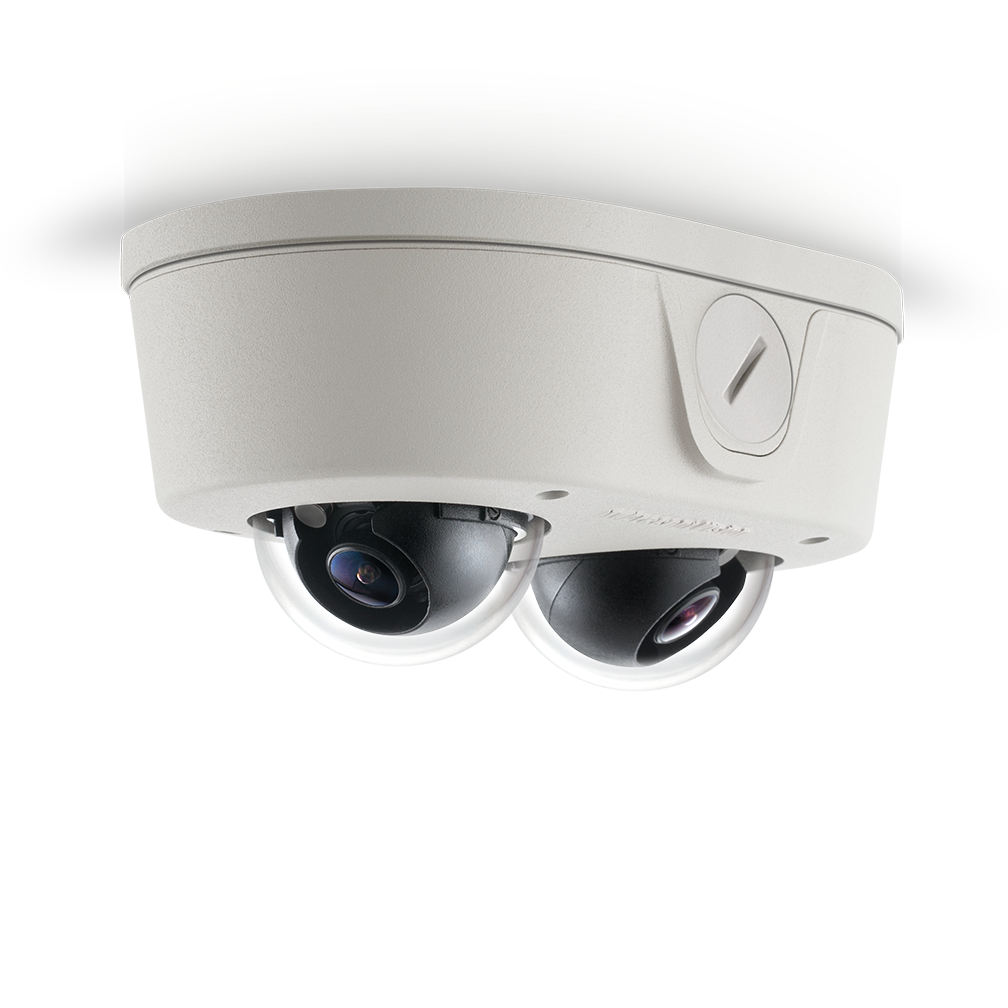

Arecont Vision - AV6656DN-28 - MicroDome Duo-Series 6MP Indoor/Outdoor IP Dome Camera with Night Vision & WDR (2.8mm Lens)



Part number:
AV6656DN-28
Price:

The MicroDome Duo series features twin, independent multi-megapixel cameras in a compact housing, and is ideal for a variety of professional indoor/outdoor surveillance requirements. Applications include coverage of a hallway or walkway, monitoring POS terminals or ATMs, or for viewing of a single wide area or two distinct regions.

The extremely compact MicroDome Duo series offers 4-, 6-, or 10-megapixel resolution models, with choice of 2.1mm, 2.8mm, 4mm, 6mm, 8mm, 12mm, or 16mm lenses. The MicroDome Duo is ideal for applications with challenging lighting conditions regardless the time of day, supported by dual day/night mechanical IR cut filters. For applications with strong backlighting, reflections from wet flooring/puddles, or contrast due to fog, mist, or glare, Wide Dynamic Range (WDR) is available on select 4- and 6-megapixel models. MicroDome Duo features CorridorView for better coverage of hallways and corridors.

Built-in remote focus capability allows installers to simply click “Short-range Focus” or “Full-range Focus” for rapid setup. The three-axis lens adjustment provides multiple camera placement options, allowing the MicroDome Duo to be easily mounted on a wall or ceiling, while the installer can pan, tilt, and rotate the lens in a variety of directions for a precise eld of view.



Features:

  • Strong Low Light Performance with Binning Mode
  • True Day/Night Functionality with Mechanical IR Cut Filter
  • True Wide Dynamic Range (WDR) up to 100dB at Full Resolution
  • CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
  • Dual Encoder H.264/MJPEG
  • Remote Focus Module
  • Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
  • Multiple Lens Options Available (Sold Separately)
  • Network Protocols Include DHCP, and More
  • All-in-One H.264 Total Power Over Ethernet (PoE) Solution
  • Easily Adjustable 3-Axis Gimbal
  • Ultra Low Pro le Design / Small Size
  • IK-10 Impact-Resistant Housing
  • Outdoor Rated IP66

Programmability

OpticsM12 lens and remote focus module
Low Light Performance
Pixel Binning Mode 6MP and 10MP models
Picture-in-Picture
Simultaneous delivery of full field-of-view and zoomed images
ProgrammableControls motion blur, 1ms–500ms
Shutter Speed

Motion DetectionReal-time, 1024 detection zones
Privacy MaskingUnlimited
Flexible CroppingResolution windowing down to 1x1 pixel for JPEG and 2x2
 pixels for H.264
Backlight CompensationReference windows for auto exposure and white balance
Flicker Control50/60Hz selectable
Image RotationCorridorView™ (90°, 180°, and 270° image rotation)
Wide Dynamic RangeAuto switch control adjustment between WDR and LDR modes
 (WDR models)
Noise ReductionLow light noise filtercontrol
EfficiencyBit rate and bandwidth limitation control
 Bandwidth and storage savings by running at 1/4 resolution
SharpnessSelectable enhancement level
MiscellaneousProgrammable resolution, brightness, saturation, gamma, tint
 Electronic pan, tilt, zoom (PTZ)

Data Transmission

Compression TypeH.264 (MPEG-4, Part 10)/Motion JPEG
 21 levels of quality
Network ProtocolsHTTP, RTSP, RTP/TCP, RTP/UDP, TFTP, DHCP
Network Interface100Base-T Ethernet
Multi-Streaming8 non-identical streams

Compliance

Industry StandardONVIF Profile S
ListingsUL (CB)
FCC Compliance47 CFR 15 Class A
EnvironmentalRoHS, REACH, WEEE
Markings(CE) EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3,
 EN60950-1
MechanicalIP66 (EN60529), IK-10
CoOMade in the USA

Environmental

Operating Temperature-40°C (-40°F) to +50°C (122°F)
Humidity0% to 90% (non-condensing)
Storage Temperature-40°C (-4°F) to +60°C (140°F)

Electrical

Alarm Input/OutputGeneral purpose opto-coupled, 1 input /1 output
Power Over EthernetPoE 802.3af, Class 3
Power Consumption7.9W DC power max
