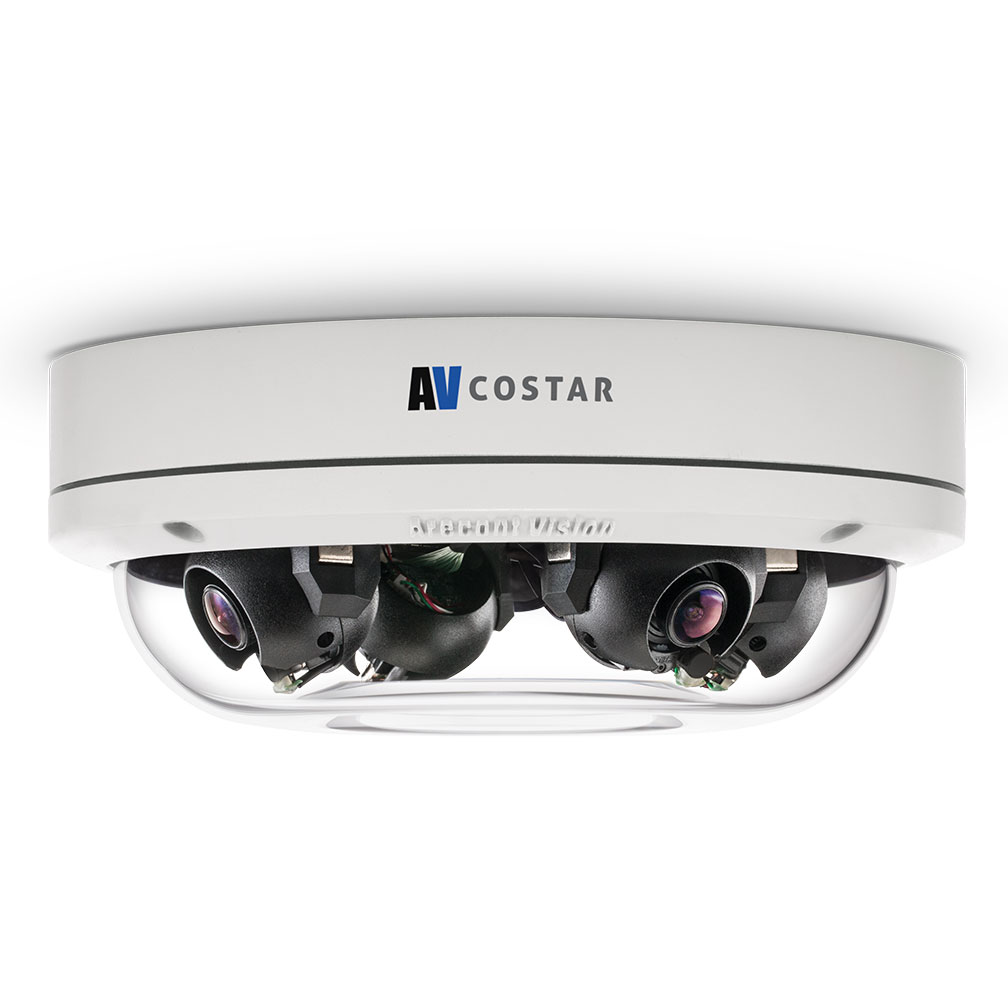

Arecont Vision - AV8476DN-28 - 8MP Contera Omni Directional Outdoor Dome, 2.8mm Lens
Part number:
AV8476DN-28
Price:
- • 8MP Resolution
- • 4 x 2.8mm Lenses
- • Remote Focus
- • 3-Axis Gimbal – Up to 4 Individual Camera Gimbals can be Independently Placed in Any Orientation Around a 360° Track with Extra Positions for Looking Straight Down
- • Multiple Lens Options in a Single Camera Housing
- • SNAPstream+ Advanced Compression Algorithm Reduces Bandwidth without Impacting Image Quality
- • NightView for Strong Low Light Performance
- • True Day/Night Functionality with Mechanical IR Cut Filter
- • On-Screen Display (OSD)
- • WDR at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, and Multicasting
- • Triple Encoder: H.265/H.264/MJPEG
- • Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
- • All-in-One H.265/H.264 Total PoE+ Solution PoE+ and Auxiliary Power: 12V-48V DC/24V AC
- • MicroSDXC Card Slot for Onboard Storage
- • Ultra-Discrete, Low-Profile Housing
- • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
| Camera | |
|---|---|
| Image Sensor (CMOS) | 8MP (1080p x 4) CMOS Progressive Sensor |
| Optical Format | 1/2.8" |
| Pixel Pitch | 2.9μm |
| Minimum Illumination | Color (Day Mode): 0.04 Lux |
| B/W (Night Mode): 0.004 Lux | |
| Full FOV Resolution | Total: 7680 H x 1080 V |
| Per Sensor: 1920 H x 1080 V | |
| Dynamic Range | Up to 100dB |
| Frame Rates at Max Resolution | 30fps (8MP) |
| Multi-Stream | Up to 30fps (8MP) + 20fps (8MP) + 30fps (3.7MP) |
| Lens (x4) 2.8mm Lens Option (-28 Models) | 2.8mm, 1/2.7", F2.0, H-FOV = 106.7° |
| Programmability | |
| Optics | M12 lens and remote focus module |
| Low-Light Performance | NightView technology |
| Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Scaling (Per Sensor) | 8MP: 1920x1080, 1280x960, 1280x720, 960x540, 800x600, 640x480, 640x360 |
| 20MP: 2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480 | |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG 21 levels of quality |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP/Smart ROI |
| Network Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure |
| Network Interface | 10/100/1000Mbps Ethernet, RJ45 |
| Max Camera Bandwidth | 40Mbps (10Mbps per sensor) |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream (per sensor) |
| Users | Live Viewing/Administrator for up to 10 clients |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send a message via e-mail/FTP/NAS, SD Card Recording, Record JPG/MP4 |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, and T conformant |
| Listings | UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | CE: EN55032 Class A, EN55035, EN61000-3-2, EN61000-3-3 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| Environmental | |
| Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
| Power Over Ethernet | IEEE 802.3at (PoE+) |
| Auxiliary Power | 12-48V DC, 24V AC |
| Power Consumption | 15W max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz |
| Input/Output | Line in / Line output |
| Mechanical | |
| Casing | Die-cast aluminum chassis with polycarbonate dome bubble IP66 weather proof standard Impact resistant, IK-10 rated |
| Gimbal | Easily adjustable, 3-axis w/360° pan, 90° tilt, and 360° z-axis |
| Dimensions | Unit: Ø 7.7" (196mm) x 3.1" H (78.5mm) |
| Bubble Only: Ø 6.7" (169.2mm) x 1.3" H (33.4mm) | |
| Packaged: 8" W (203mm) x 8" L (203mm) x 4" H (102mm) | |
| Weight | Unit: 3.8lbs (1.7kg) |
| Packaged: 4.4lbs (2.0kg) | |
| On Board Storage | MicroSDXC slot up to 256GB (card not included) |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
The ConteraIP Omni LX is available with 8- or 20-megapixel resolutions. These cameras provide an all-in-one solution for wide-area video surveillance, maximising the field of view and reducing the total number of cameras required, thereby saving installers time and end users money. The ConteraIP Omni LX is ideal for applications with normal to challenging lighting conditions. The Omni combines a day/night mechanical IR cut filter to deliver the highest image quality at any time of day. NightView offers strong low-light sensitivity for capturing details in extremely poorly lit scenes, providing clear colour images in low light. Power can be supplied via a single PoE+ (802.3at)-compliant network cable or a 12–48 V DC/24 V AC power supply. The ConteraIP Omni LX is designed for demanding environments. Having passed rigorous dust and water tests, the camera carries an IP66 rating. Its rugged dome housing is IK-10 rated, meaning it can withstand the equivalent of 55 kg (120 lbs) of force, making it ideal for areas prone to vandalism.
