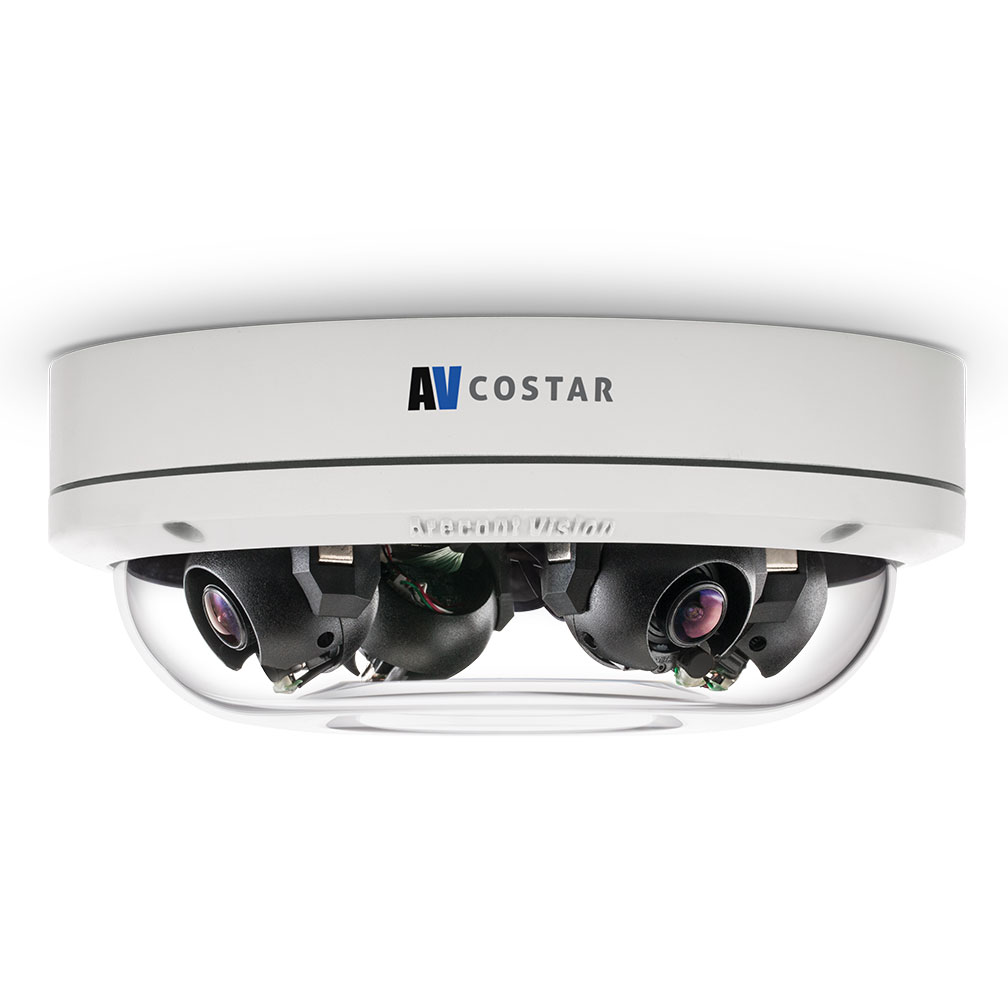

Arecont Vision - AV8476DN-NL - 8MP 2.8mm Lens 7680x1080 H.265/H.264 30fps Contera Omni Directional Outdoor Dome



Part number:
AV8476DN-NL
Price:

8MP Contera Omni Directional Outdoor Dome, Remote Focus, 2.8mm Lens, Day/Night, 7680x1080 H.265/H.264/M-JPEG, WDR, NightView, SNAPstream+, 30fps, SD Card, Audio, IP66, IK-10, Onvif, PoE+/12-48V DC/24V AC, NO LENS (2.1mm to 16mm)



Features:

  • 8MP Resolution
  • Multiple Lens Options Available (Sold Separately)
  • Remote Focus
  • 3-Axis Gimbal – Up to 4 Individual Camera Gimbals can be Independently Placed in Any Orientation Around a 360° Track with Extra Positions for Looking Straight Down
  • Multiple Lens Options in a Single Camera Housing
  • SNAPstream+™ Advanced Compression Algorithm Reduces Bandwidth without Impacting Image Quality
  • NightView™ for Strong Low Light Performance
  • True Day/Night Functionality with Mechanical IR Cut Filter
  • On-Screen Display (OSD)
  • WDR at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
  • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, and Multicasting
  • Triple Encoder: H.265/H.264/MJPEG
  • Network Protocols Include SNMP, HTTPS, IPv6, DHCP, 802.1x, and More
  • All-in-One H.265/H.264 Total PoE+ Solution PoE+ and Auxiliary Power: 12V-48V DC/24V AC
  • MicroSDXC Card Slot for Onboard Storage
  • Ultra-Discrete, Low-Profile Housing
  • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing

Programmability

Optics



M12 lens and remote focus module

Low-Light Performance

NightView technology

Programmable



Auto/manual 0.1ms ~ 500ms

Shutter Speed







Motion Detection



Real-time, 1024 detection zones

Privacy Masking



Unlimited

Backlight Compensation

Auto

White Balance Mode

Auto/manual

Gain Control



Auto

Flicker Control



5Hz–255Hz adjustable

Scaling

8MP

1920x1080, 1280x960, 1280x720, 960x540, 800x600,

(Per Sensor)



640x480, 640x360









20MP

2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080,





1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480

Wide Dynamic Range



Adjustment between WDR and LDR modes

Efficiency







SNAPstream+ (Smart Noise Adaptation and Processing)





Bit rate and bandwidth limitation control

Miscellaneous



Programmable brightness, contrast, sharpness, saturation, hue

Password



16-digit ASCII character password

On-Screen Display (OSD)

Time/date/camera name/custom text

Data Transmission

Compression Type

H.265/H.264 (MPEG-4, Part 10)/Motion JPEG



21 levels of quality

Bit Rate Control

64K–8000K

Smart Codec

Smart GOP/Smart ROI

Network Protocols

SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP,



RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS,



Zero Configure

Network Interface

10/100/1000Mbps Ethernet, RJ45

Max Camera Bandwidth

40Mbps (10Mbps per sensor)

Multi-Streaming

2 x H.265/H.264 stream, 1 x M-JPEG stream (per sensor)

Users

Live Viewing/Administrator for up to 10 clients

2

Event Management

Event Trigger

Motion detection, tampering detection, alarm in

Notifications

Send a message via e-mail/FTP/NAS, SD Card Recording,



Record JPG/MP4

Compliance

Industry Standard

ONVIF Profile S, G, and T conformant

Listings

UL60950-1, E489591

FCC Compliance

47 CFR 15 Class A

Environmental

RoHS, REACH, WEEE

Markings

CE: EN55032 Class A, EN55035, EN61000-3-2,



EN61000-3-3

Mechanical

IK-10 (EN62262), IP66 (EN60529)

Environmental

Operating Temperature

-40°C (-40°F) to +50°C (122°F)

Humidity

0% to 90% (non-condensing)

Storage Temperature

-40°C (-40°F) to +60°C (140°F)

Electrical

Alarm Input/Output

1 input (wet contact)/1 output (wet contact)

Power Over Ethernet

IEEE 802.3at (PoE+)

Auxiliary Power

12-48V DC, 24V AC

Power Consumption

15W max

Audio Electrical

Streaming

Two-way

Compression

G.711 PCM 8 kHz
