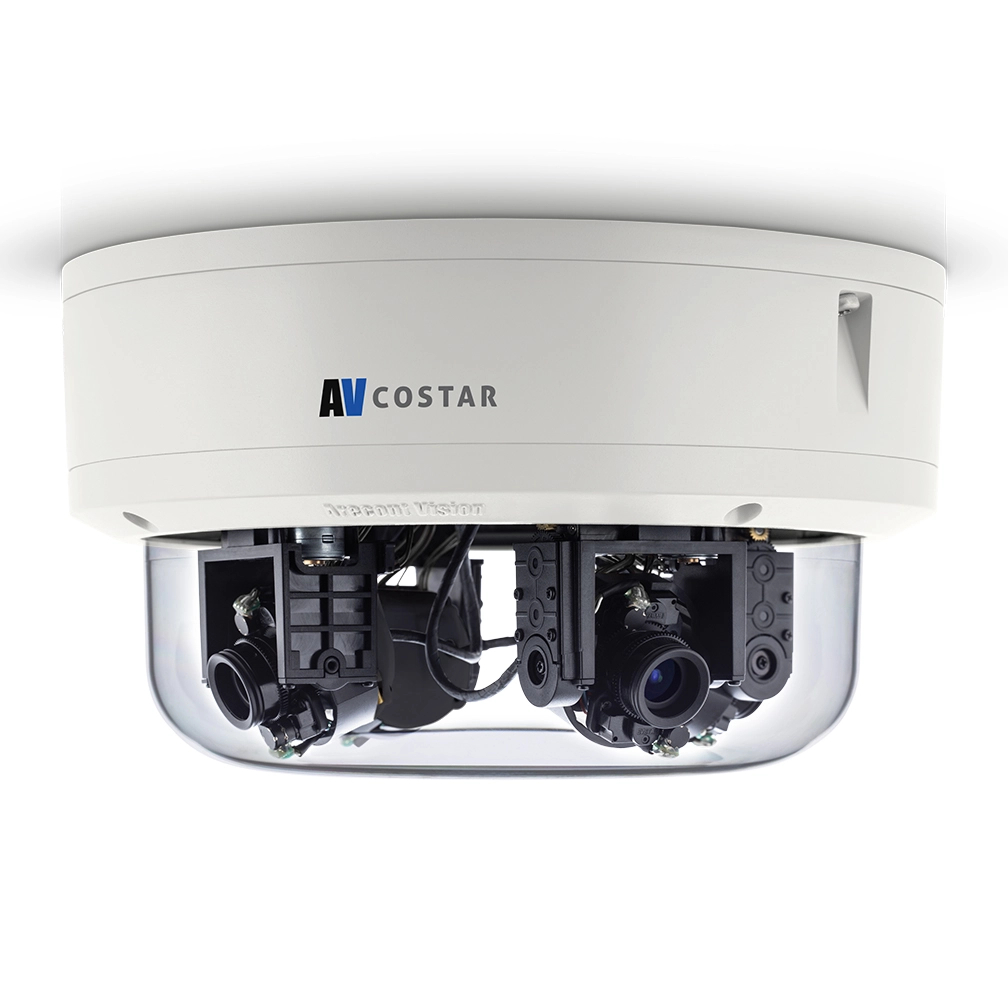

Arecont Vision - AV8476RS - 8MP Zoom Pan Tilt & Day/Night Contera Omni Directional Remote Setup Outdoor Dome
Part number:
AV8476RS
Price:
- • 8MP Resolution
- • No Touch Setup: 4 Individual Camera Gimbals Each with a Varifocal Motorized Lens That Can be Remotely Setup in Any Position Around a 360° Track
- • Preset Positions to Create a 360°, 270°, or 180° Field of View, or Save Custom Presets
- • SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
- • NightView for Strong Low Light Performance
- • Forensic Zooming – Zoom Live or After the Event While Recording Full Field-of-View in HD – Replace PTZ Devices
- • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
- • On-Screen Display (OSD)
- • True Day/Night Functionality with Mechanical IR Cut Filter
- • Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, and Multicasting
- • Triple Encoder: H.265/H.264/MJPEG
- • Network Protocols Include SNMP, IPv6, HTTPS, DHCP, 802.1x, and More
- • All-in-One H.265/H.264 Total PoE+ Solution; PoE+ and Auxiliary Power: 12V-48V DC/24V AC
- • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- • Complete Mounting Options
| Camera | |
|---|---|
| Image Sensor (CMOS) | 8MP (1080p x 4) CMOS Progressive Sensor |
| Optical Format | 1/2.8" |
| Pixel Pitch | 2.0μm |
| Minimum Illumination | Color (Day Mode): 0.04 Lux |
| B/W (Night Mode): 0.004 Lux | |
| Full FOV Resolution | Total: 7680 H x 1080 V |
| Per Sensor: 1920 H x 1080 V | |
| Dynamic Range | Up to 100dB |
| Frame Rates at Max Resolution | 30fps (8MP) |
| Multi-Stream | Up to 30fps (8MP) + 20fps (8MP) |
| Up to 30fps (8MP) + 20fps (8MP) + 30fps (3.7MP) | |
| Lens (x4) | 3.3–6.6mm, F1.7, H-FOV = 52°–99° |
| Programmability | |
| Optics | Remote focus / zoom |
| Low-Light Performance | NightView™ technology |
| Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Scaling (Per Sensor) | 8MP: 1920x1080, 1280x960, 1280x720, 960x540, 800x600, 640x480, 640x360 |
| 20MP: 2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480 | |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+™ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue Electronic pan, tilt, zoom (PTZ) |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG 21 levels of quality |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP/Smart ROI |
| Network Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure |
| Network Interface | 10/100/1000Mbps Ethernet, RJ45 |
| Max Camera Bandwidth | 40Mbps (10Mbps per sensor) |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream (per sensor) |
| Users | Live Viewing/Administrator for up to 10 clients |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS, record JPG/mp4 |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, Q, T conformant |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | CE: EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| Environmental | |
| Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
| Power Over Ethernet | IEEE 802.3at (PoE+) |
| Auxiliary Power | 12-48V DC, 24V AC |
| Power Consumption | 23W max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz |
| Input/Output | Line in / Line output |
| Mechanical | |
| Casing | Die-cast aluminum chassis with polycarbonate dome bubble IP66 weather proof standard Impact resistant, IK-10 rated |
| Gimbal | Remotely adjustable, 3-axis w/360° pan, 135° tilt |
| Dimensions | Unit: Ø 8.8" (223.4mm) x 4.9" H (125.4mm) |
| Bubble Only: Ø 7.2" (183.3mm) x 2.3" H (59.3mm) | |
| Packaged: 11.1" W (281mm) x 11.1" L (281mm) x 7.4" H (188mm) | |
| Weight | Unit: 5.2lbs (2.36kg) |
| Packaged: 5.9lbs (2.68kg) | |
| On Board Storage | MicroSDXC slot up to 256GB (card not included) |
| Body Color | Arecont Vision® White (Pantone® Cool Gray 1C) |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
The ConteraIP Omni LX RS is available with 8- or 20-megapixel resolutions. Thanks to its four customisable remote sensor gimbals, the number of cameras required for a project can be dramatically reduced with a single ConteraIP® Omni LX RS. Installation is quick and straightforward. Simply install the hinged mounting plate, connect the PoE+ (Power over Ethernet) IP cable and then configure the camera remotely. Choose a preset for 180°, 270° or 360° views, or use the intuitive interface to remotely pan, tilt, zoom and focus each sensor. Two custom presets created by the user can be saved to memory. The camera is also integrated with the industry's leading VMS/NVR platforms.
