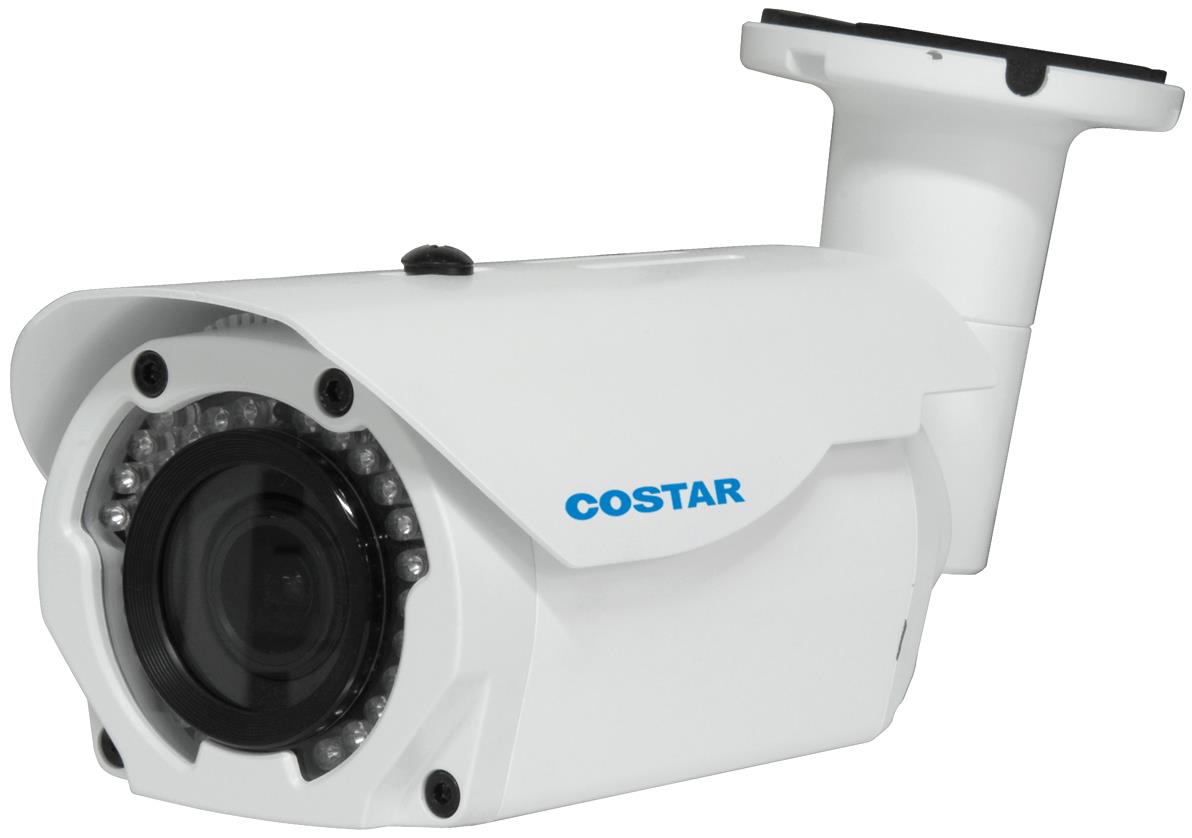

Arecont Vision - CBI2H51IFP - 2 MP 1/2.8" Costar Licence Plate Bullet
• 2 Mega Pixel Resolution
• Smart Codec
• Intelligent Video Motion Detection, Intrusion Detector
• Quad Stream(H.264 MJPEG)
• Onvif Pro le S
• Easy Install : Zero Con guration, Discovery, PoE
• Multi User Authority, IP Filtering, HTTPS, SSL
• Cross Web Browsing(IE, Safari, Firefox, Chrome)
| Camera | |
|---|---|
| Lens | 10x / 5.1mm ~ 51mm |
| Angle of View | Wide: 54° (H) ~ 30.3° (V) ~ 61.9° (D) |
| Tele: 4.9° (H) ~ 2.7° (V) ~ 5.5° (D) | |
| Min. Illumination | --- |
| Scanning Mode | Progressive Scan |
| Noise Reduction | 2DNR, 3DNR |
| Digital Zoom | 16x |
| Exposure Control | Manual, Multi-Shutter, IRIS Priority |
| White Balance Control | --- |
| Image Effect | Flip |
| Flicker Free Mode | 50Hz, 60Hz |
| Shutter Speed | Manual |
| IR Illuminator | Up to 82ft, 32 IR LEDs |
| Compression | H.264(Baseline, Main, High Profile), MJPEG |
| Bitrate Control | CBR, CVBR |
| Resolution | 1920x1080, 1280x1024, 1280x720, 704x480, 640x360, 320x240 |
| Streaming | Triple Stream: H.264 x3, MJPEG x1 |
| Frame Rate | Max. 60fps |
| Motion Detection Area | 16 Programmable Area (Include Area 8, Exclude Area 8) |
| Privacy Mask Zone | 8 Programmable Zone |
| FTP Uploading | MJPEG |
| Event Notification | E-mail, FTP, Notification Server, XML Notification, Audio Alert |
| Login Authority | Administrator, Operator, Guest |
| Manual Trigger | 4 Programmable Trigger |
| Event Buffering FTP | Pre: 30sec, Post: 30sec |
| Micro SD Type | SDHC, SDXC (Class 10, 128GB Max) |
| Micro SD Recording Mode | Event, Continuous |
| Image Sensor Type | 1/2.8" SONY STARVIS™ CMOS Sensor |
| Pixels | 1945(H) x 1097(V) |
| Operating Humidity | 0~90% RH (Non-Condensing) |
| Operating Temperature | -22°F ~ 122°F (-30° ~ +50°C) |
| Power Source | PoE (IEEE802.3at Compliance, Class4) / 12V DC |
| Power Consumption | 0.47A (22.6W) @ PoE w/Heater ~ 1.6A (19.2W) @ 12V DC w/Heater |
| Dimensions | 3.87" (W) x 4.89" (H) x 9.73" (D) in |
| Net Weight | 0.89 lbs |
| Protocol | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour |
| Client Software | Web, SmartManager, Client S/W, Mobile S/W |
| Max. User Connection | Live: 10 Users, Playback: 3 Users |
| Camera Protocol | ONVIF S |
| Mobile Support | Android, iOS |
| Composite Out | Yes / 3.5pi Stereo Jack |
| Audio Compression | G.711 |
| Audio Streaming | 2 Way |
| Audio | 1 Input, 1 Output (Terminal Block) |
| Alarm | 1 Input, 1 Output (Terminal Block) |
| Ethernet | RJ-45 (10/100Base-T) |
| Software Reset | Restart, Reset, Factory Default |
| Network Time Sync | NTP Server, Synchronized Computer, Manual |
| Remote Upgrade | Yes |
| Web Browsing | IE, Chrome, Safari, Firefox, SmartManager |
| Security | Multi User Authority, IP Filtering, HTTPS, SSL |
| Approvals | FCC, CE, KC |
| Video Contents Analytics | |
| Line Detection, Tampering, Motion Detection, Intrusion Detector | |
The CBI2H51IFP licence plate capture bullet camera provides high-quality video with 2-megapixel resolution. Infrared LEDs provide illumination for clear images at night. Its IP66 weatherproof rating and sunshield cover make it suitable for outdoor use. Costar Video's IP cameras are compatible with the StarNET user interface platform. StarNET incorporates features such as simplified user management, advanced camera mapping and logical camera grouping, making it easier to monitor and access your cameras. StarNET can also integrate both analogue and IP camera technology on the same platform, enabling you to create a diverse surveillance system. Costar Video’s IP cameras support the ONVIF protocol. The ONVIF protocol is an industry standard that makes it easy to integrate Costar-branded IP cameras with ONVIF-compatible recorders.
