59232XANR - EOL Replacement: 5A445XANR
This product has been discontinued. Replacement: 5A445XANR
Part number:
59232XANR
Price:
1/2.8-in. STARVIS™ CMOS, 32x optical zoom, Starlight technology, Max. 25/30fps@2MP, Deep-learning-based auto tracking and perimeter protection, Support PoE+, IR distance up to 150 m, SMD, IP66

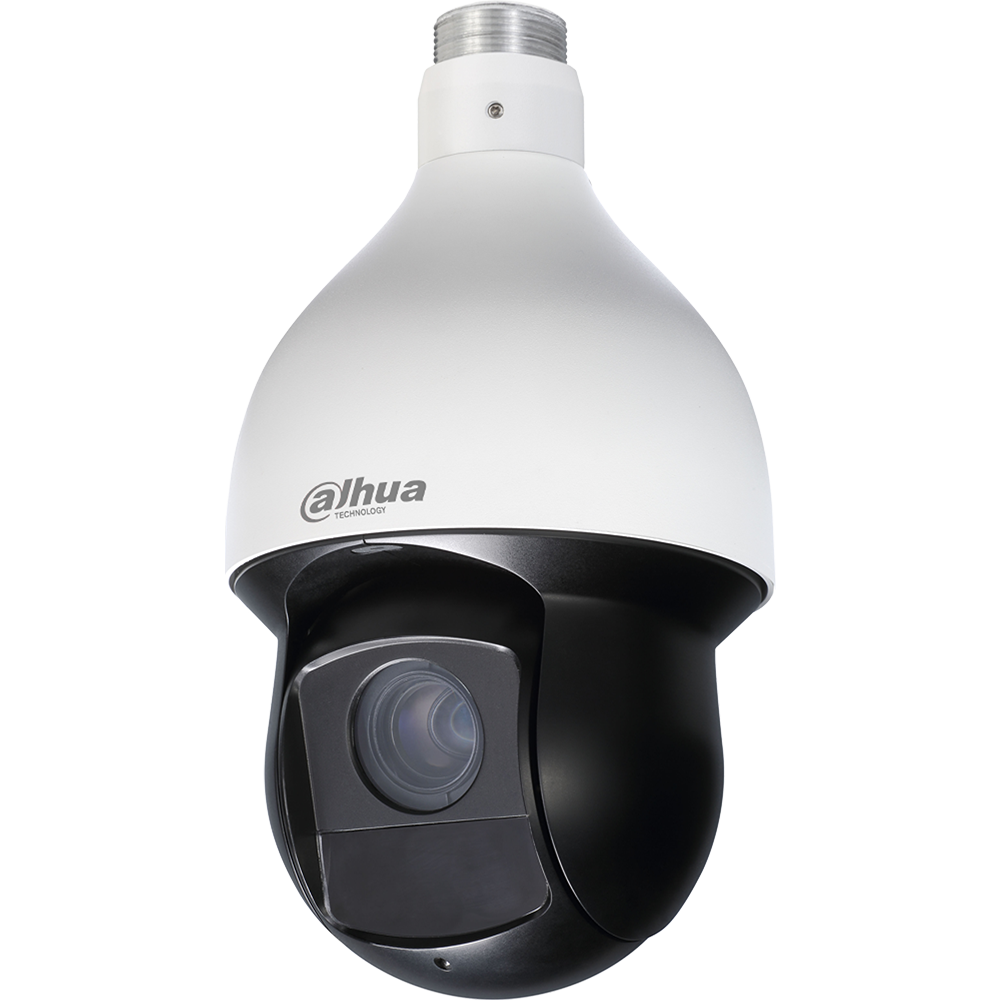

The 2 MP Starlight IR PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 32x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for outdoor applications. The camera uses the Smart H.265+ video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.
Features:
- 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
- 1080p at 30 fps Maximum Resolution
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- Powerful 32x Optical Zoom
- Starlight Technology for Ultra-low Light Sensitivity
- True Wide Dynamic Range (120 dB)
- Analytics+ Function – Perimeter Protection and Smart Motion Detection
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP66 Ingress Protection
- Intelligent Video System with Auto-tracking
- Maximum IR Distance up to 150 m (492 ft)
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| Image Sensor | 1/2.8-in. STARVIS™ CMOS Sensor | ||||
| Effective Pixels | 1920(H) x 1080(V), 2 MP | ||||
| RAM/ROM | 1GB/4GB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | 1/3 s to 1/30,000 s | ||||
| Minimum Illumination | Color: 0.005 lux at F1.3 | ||||
| B/W: 0.0005 lux at F1.3 | |||||
| 0 lux at F1.3 with IR on | |||||
| IR Distance | Distance up to 150.0 m (492.13 ft) | ||||
| IR On/Off Control | Zoom Priority, Manual, Smart IR | ||||
| IR LEDs | Four (4) | ||||
| Lens | |||||
| Focal Length | 4.9 mm to 156 mm | ||||
| Max. Aperture | F1.3 to F4.4 | ||||
| Horizontal | 68.3° to 2.2° | ||||
| Angle of View | Vertical | 38.9° to 1.3° | |||
| Diagonal | 68.3° to 1.4° | ||||
| Optical Zoom | 32x | ||||
| Focus Control | Auto, Semi-auto, Manual | ||||
| Close Focus Distance | 100 mm to 1500 mm (0.33 ft to 4.92 ft) | ||||
| DORI Distance¹ | |||||
| Detect (8 ppf) | Observe (19 ppf) | Recognize (38 ppf) | Identify (76 ppf) | ||
| 2092 m (6863 ft) | 836 m (2742 ft) | 418 m (1371 ft) | 209 m (685 ft) | ||
| PTZ | |||||
| Pan/Tilt Range | Pan: 0° to 360° endless | ||||
| Tilt: –15° to 90° | |||||
| Manual Control Speed | Pan: 0.1° to 300° /s | ||||
| Tilt: 0.1° to 200° /s | |||||
| Preset Speed | Pan: 400° /s | ||||
| Tilt: 300° /s | |||||
| Presets | 300 | ||||
| PTZ Mode | 5 Pattern, 8 Tour (up to 32 presets per tour), | ||||
| Auto Pan, Auto Scan | |||||
| Speed Setup | Human-oriented Focal Length, Speed Adaptation | ||||
| Power up Action | Auto restore to previous PTZ and lens status after | ||||
| power failure | |||||
| Idle Motion | Activate Preset, Scan, Tour, Pattern if there is no | ||||
| command in the specified period | |||||
| Protocol | DH-SD | ||||
| Pelco-P/D (auto recognition) | |||||
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, | ||
| MJPEG (sub stream only) | |||
| Streaming Capability | Three (3) Streams | ||
| Resolution | 1080p (1920 x 1080), 1.3 MP (1280 x 960), | ||
| 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) | |||
| Main Stream | |||
| 1080p, 1.3 MP, or 720p at 30 fps | |||
| Frame Rate | Sub Stream 1 | D1 or CIF at 30 fps | |
| Sub Stream 2 | 720p at 30 fps | ||
| Bit Rate Control | |||
| CBR, VBR | |||
| Bit Rate | H.265/H.264: 3 Kbps to 20480 Kbps | ||
| Day/Night | Auto (ICR), Color, B/W | ||
| Backlight Compensation | BLC, HLC, True WDR (120 dB) | ||
| White Balance | Auto, Indoor, Outdoor, ATW, Manual, Sodium Lamp, | ||
| Natural, Street Lamp | |||
| Gain Control | Auto, Manual, Aperture Priority, Gain Priority, | ||
| Shutter Priority | |||
| Noise Reduction | 2D/3D | ||
| Advanced Features | Motion Detection, Region of Interest, | ||
| Electronic Image Stabilization (EIS), Defog | |||
| Digital Zoom | 16x | ||
| Flip | 180° | ||
| Privacy Masking | Up to 24 areas | ||
| Audio | |||
| Compression | G.711a, G.711Mu, AAC, G.722.1, G.726, G.723, | ||
| G.729, MPEG2-L2 | |||
| Network | |||
| Ethernet | |||
| RJ-45 (10/100 Base-TX) | |||
| IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, | |||
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, | ||
| DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, | |||
| 802.1x | |||
| Interoperability | ONVIF Profile S & G, CGI | ||
| Streaming Method | Unicast / Multicast | ||
| Max. User Access | 19 users (total bandwidth 48 Mbps) | ||
| Edge Storage | FTP, P2P | ||
| Micro SD Card Slot, up to 256 GB | |||
| Web Viewer | IE 7 and later | ||
| Firefox version 52 and later | |||
| Chrome version 42 and later | |||
| Management Software | Smart PSS, DSS Express S | ||
| Smart Phone | IOS, Android | ||
| Certifications | |||
| CE | EN 55032, EN 55024, EN 50130-4 | ||
| Electromagnetic Compatibility | 47 CFR FCC Part 15 Subpart B | ||
| (EMC) | ANSI C63.4-2014 | ||
| Interface | |||
| Input: One (1) Channel | |||
| Audio | |||
| Output: One (1) Channel | |||
| Alarm | Input: Two (2) Channels | ||
| Output: One (1) Channel | |||

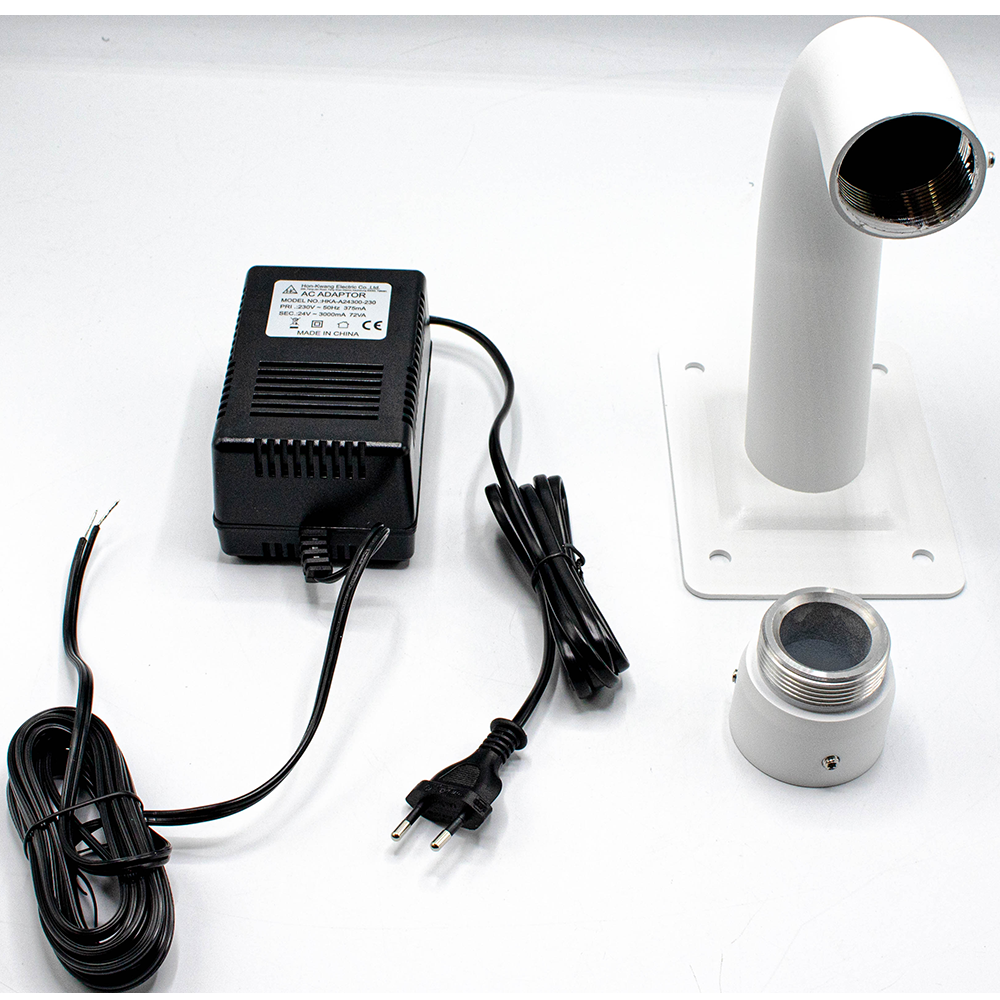

| Power Supply | 24 VAC, 3 A (± 25%), PoE+ (IEEE802.3at, Class 4) | |
| Power Consumption | Basic: 13 W | |
| Maximum: 24 W with IR on | ||
| Environmental | ||
| Operating Conditions | –40 °C to 70 °C (–40 °F to +158 °F) | |
| Less than 95% RH | ||
| Ingress Protection | IP66 | |
| Surge Protection | TVS 6000V | |
| Construction | ||
| Casing | Metal | |
| Dimensions | �186.0 mm x 309.0 mm (� 7.32 in. x 12.16 in.) | |
| Net Weight | 3.90 kg (8.60 lb) | |
| Gross Weight | 7.01 kg (15.45 lb) | |
| Analytics+ Functions | ||
| • Detects human or vehicle violations using the following | ||
| methods: | ||
| Perimeter Protection | Tripwire: a target crosses a defined line. | |
| Intrusion: a target enters or exits a defined perimeter. | ||
| • Monitors a combination of ten (10) detection methods. | ||
| • Search and retrieve video based on target type. | ||
| • Differentiates between and classify human and vehicle | ||
| objects. | ||
| Smart Motion Detection² | • Filters false alarms due to leaves, lights, animals, and | |
| other inconsequential objects. | ||
| • Extracts human or vehicle objects from recorded video | ||
| for quick target search and retrieval. | ||
| Face Detection | • Detects and captures a snapshot of a human face | |
| within a scene. | ||
| Intelligence | ||
| IVS triggers an alarm and takes a defined action for the following events: | ||
| • Tampering with the camera. | ||
| Standard Features | • Error writing to an onboard Micro SD card. | |
| • Error sending or receiving data over the network. | ||
| • Unauthorized access to the camera. | ||
| Premium Features | ||
| Motion | An object moves through any part of the scene. | |
| Scene Change | A person or object moves the camera to change the scene | |
| or covers the camera to obscure the scene. | ||
| Abandoned/Missing | A target leaves an object in designated area, or a target | |
| Object | removes an object from the same designated area. | |
| Advanced Features | ||
| Auto-tracking | Controls the pan/tilt/zoom actions of the camera to | |
| automatically track an object in motion and to keep it in | ||
| the scene. | ||
