Name: Dahua - 6AL445XANR - 4MP Starlight Network PTZ Camera with Analytics+
Brand: Dahua
SKU: 6AL445XANR

Home — Brands — Dahua — Network Products — Network PTZ Cameras —

Dahua - 6AL445XANR - 4MP Starlight Network PTZ Camera with Analytics+

Part number:

6AL445XANR

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

1/2.8-in. 4MP CMOS, 45x optical zoom, Starlight technology, Max. 30 fps@1080P, Deep-learning-based auto tracking and perimeter protection, face detection, Support Hi-PoE, SMD, IP67

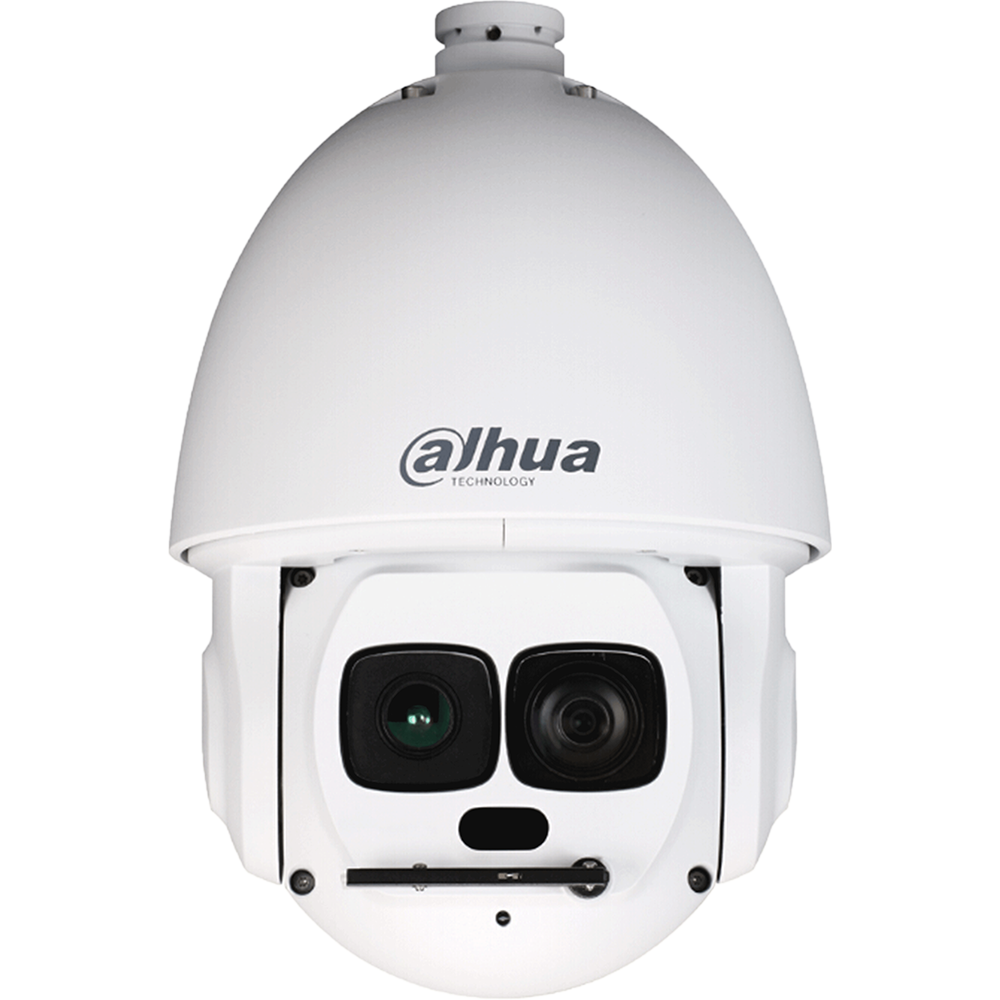

The 4 MP Laser IR PTZ Dome camera features a 1/2.8-in CMOS imager with a 45x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for outdoor applications. The camera uses the Smart H.265+ video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.

Features:

1/2.8-in. 4 MP Progressive-scan CMOS Sensor
Powerful 45x Optical Zoom Lens
Smart H.265+ and Smart H.264+ Dual Codecs
4 MP at 30 fps Maximum Resolution
Starlight Technology for Ultra Low-light Sensitivity
True Wide Dynamic Range (120 dB)
Predictive Focus Algorithm
ArcticPro Series Camera – Operational down to –40° C (–40° F)
IP67 Ingress Protection
Analytics+ Function – Perimeter Protection, Smart Motion Detection, and Face Detection
Maximum IR Distance up to 550 m (1,804 ft)
Supports Dahua Proprietary Hi-PoE Power Source
Five-year Warranty (for products sold through an authorized Dahua Dealer)

Technical Specification
Image Sensor	1/2.8-in. CMOS
Effective Pixels	2560(H) x 1440(V), 4 MP
RAM/ROM	1GB/4GB
Scanning System	Progressive
Electronic Shutter Speed	1/1 s to 1/30,000 s
Minimum Illumination	Color: 0.005 lux at F1.6
	B/W: 0.0005 lux at F1.6
	0 Lux with IR on
IR Distance	Distance up to 550.0 m (1804.46 ft)
IR On/Off Control	Zoom Priority, Manual, Smart IR,Off
Illuminators	Two (2) IR Illuminators
	One (1) Laser Module

Lens
Focal Length	3.95 mm to 177.7 mm
Maximum Aperture	F1.6 to F4.9
Angle of View	Horizontal: 70.3° to 1.8°
	Vertical: 37.0° to 1.0°
	Diagonal: 63.9° to 2.0°
Optical Zoom	45x
Iris Control	Automatic
Focus Control	Automatic, Semi-automatic, Manual
Close Focus Distance
	0.01 m to 3.0 m (0.03 ft to 9.84 ft)
DORI Distance¹
Detect (8 ppf)	Observe (19 ppf)	Recognize (38 ppf)
3554 m (11660 ft)	1421 m (4664 ft)	710 m (2332 ft)
PTZ
Pan/Tilt Range	Pan: 0° to 360° endless
	Tilt: –20° to 90°, Auto Flip 180°

Manual Control Speed	Pan: 0.1° to 200° /s
	Tilt: 0.1° to 120° /s

Preset Speed	Pan: 240° /s;
	Tilt: 200° /s

Presets	300
PTZ Mode	5 Pattern, 8 Tour (up to 32 presets per tour), 5 Scan
Speed Setup	Human-oriented focal Length/ speed adaptation
Power up Action	Auto restore to previous PTZ and lens status after
	power failure

Idle Motion	Activate Preset/ Scan/ Tour/ Pattern if there is no
	command in the specified period

Protocol
	DH-SD, Pelco-P/D (Auto recognition)
Video
Compression	Smart H.265+, H.265, Smart H.264+, H.264B, H.264,
	H.264H, MPEG4, MJPEG (sub-stream only)

Streaming Capability	Three (3) Streams
Resolution	4 MP (2560 x 1440), 3 MP (2048 x 1536),
	1080p (1920 x 1080), 1.3 MP (1280 x 960),
	720p (1280 x 720), D1 (704 x 380), CIF (352 x 240)
	4 MP at 30 fps
Frame Rate	D1 or CIF at 30 fps
	1080p or 720p at 30 fps

Bit Rate Control	CBR, VBR
Bit Rate	Main stream with default resolution:
Bit Rate	H.265 / H.264: 3 Kbps to 20480 Kbps
	H.265 / H.264: 3 Kbps to 20480 Kbps
Day/Night	Auto (ICR), Color, B/W
Backlight Compensation	BLC, HLC, True WDR (120 dB)
White Balance	Auto, Manual, Aperture Priority, Gain Priority,
White Balance	Shutter Priority
	Shutter Priority
Gain Control	Auto, Manual
Noise Reduction	2D/3D
Advanced Features	Motion Detection, Region of Interest,
Advanced Features	Electronic Image Stabilization (EIS), Defog
	Electronic Image Stabilization (EIS), Defog
Digital Zoom	16x
Flip	180°
Privacy Masking	Up to 24 areas, with 8 areas in the same view
Audio
Compression	G.711a, G.711Mu, G.726, AAC, G.722.1, G.729,
Compression	G.723, MPEG2-L2
	G.723, MPEG2-L2
Network
Ethernet	RJ45 (10/100 Base-T)
	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
Protocol	ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
Protocol	DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,
	DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,
	802.1x
Interoperability	ONVIF (Profile S and G), CGI
Streaming Method	Unicast / Multicast
Max. User Access	19 users
Edge Storage	FTP, P2P
Edge Storage	Micro SD Card Slot, maximum 256 GB
	Micro SD Card Slot, maximum 256 GB
Web Viewer	IE 7 and later
Web Viewer	Firefox version 52 and later
	Chrome version 42 and later
Management Software	Smart PSS, DSS Express S, DMSS, IVSS
Mobile Operating System	IOS, Android
Certifications
CE	EN 62368-1, EN 55032, EN 61000-3-2,
CE	EN 61000-3-3, EN 55024, EN 55035, EN 50130-4
	EN 61000-3-3, EN 55024, EN 55035, EN 50130-4
Electromagnetic Compatibility	47 CFR FCC Part 15 Subpart B
(EMC)	ANSI C63.4:2014
Interface
Audio Interface	Input: One (1) Channel
Audio Interface	Output: One (1) Channel
	Output: One (1) Channel
RS485	One (1)
Alarm	Input: Seven (7) Channels
Alarm	Output: Two (2) Channels
	Output: Two (2) Channels
Electrical
Power Supply	36 VDC, 2.23 A or
Power Supply	via Dahua proprietary Hi-PoE power source
	via Dahua proprietary Hi-PoE power source
Power Consumption	Basic: 20 W
Power Consumption	Maximum: 36 W with IR on
	Maximum: 36 W with IR on

Operating Conditions	–40° C to 70° C (–40° F to +158° F)
Operating Conditions	Less than 95% RH
	Less than 95% RH
Ingress Protection	IP67
Surge Protection	TVS 8000V
Construction
Casing	Metal
Dimensions	ø239.80mm x 382.0 mm (ø9.44 in. x 15.04 in.)
Net Weight	6.80 kg (14.99 lb)
Gross Weight	9.20 kg (20.28 lb)
Analytics+ Functions
	• Detects human or vehicle violations using the
	following methods:
	Tripwire: a target crosses a defined line.
Perimeter Protection	Intrusion: a target enters or exits a defined
Perimeter Protection	perimeter.
	perimeter.
	• Monitors a combination of ten (10) detection
	methods.
	• Search and retrieve video based on target type.
	• Differentiates between and classifies human and
	vehicle objects.
Smart Motion Detection²	• Filters false alarms due to leaves, lights, animals, and
Smart Motion Detection²	other inconsequential objects.
	other inconsequential objects.
	• Extracts human or vehicle objects from recorded
	video for quick target search and retrieval.
Face Detection	• Detects and captures a snapshot of a human face
Face Detection	within a scene.
	within a scene.

	• Tampering with the camera.
Standard Features	• Error writing to an onboard Micro SD card.
Standard Features	• Error sending or receiving data over the network.
	• Unauthorized access to the camera.
	• IP Address Conflict
Premium Features
Motion	An object moves through any part of the scene.
Scene Change	A person or object moves the camera to change the
Scene Change	scene or covers the camera to obscure the scene.
	scene or covers the camera to obscure the scene.
Abandoned/Missing	A target leaves an object in designated area, or a target
Object	removes an object from the same designated area.
Advanced Features
Auto-tracking	Controls the pan/tilt/zoom actions of the camera to
Auto-tracking	automatically track an object in motion and to keep it
	in the scene.
