A22CF63 - EOL Replacement: A22DF63
This product has been discontinued. Replacement: A22DF63
Part number:
A22CF63
Price:

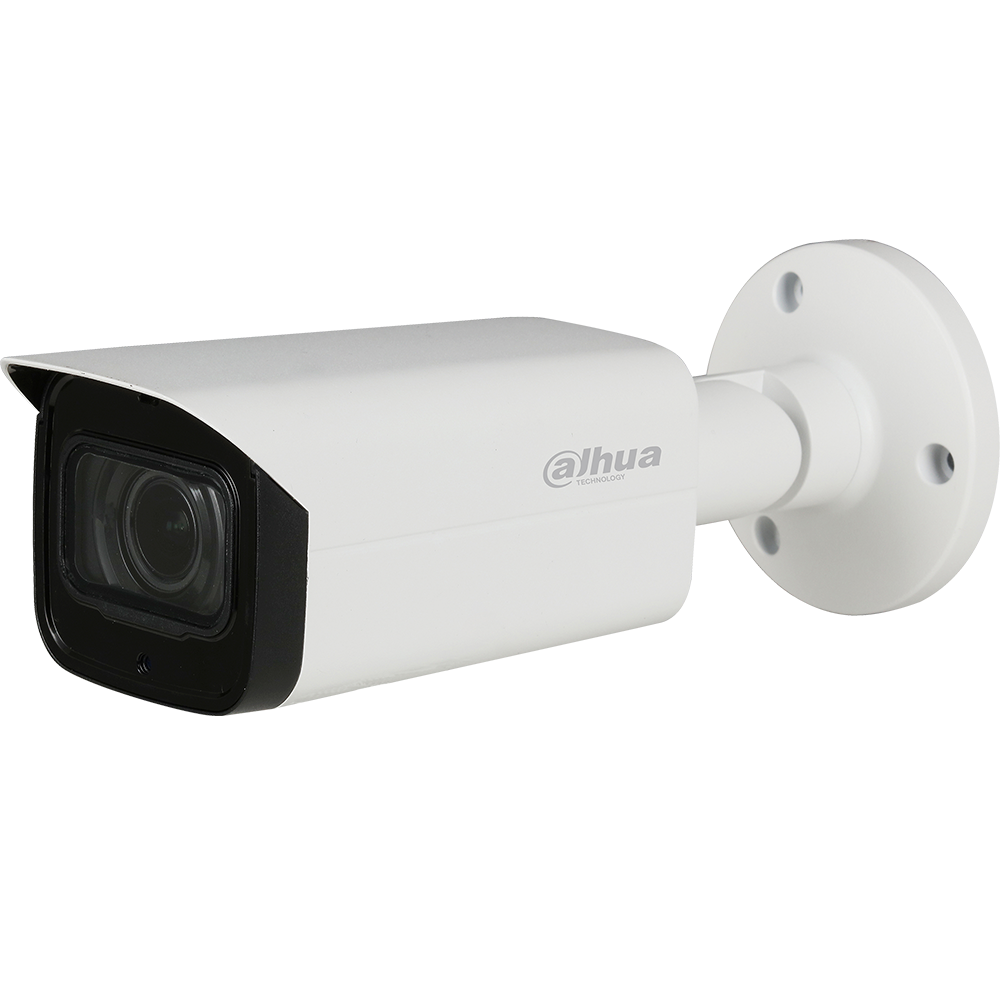

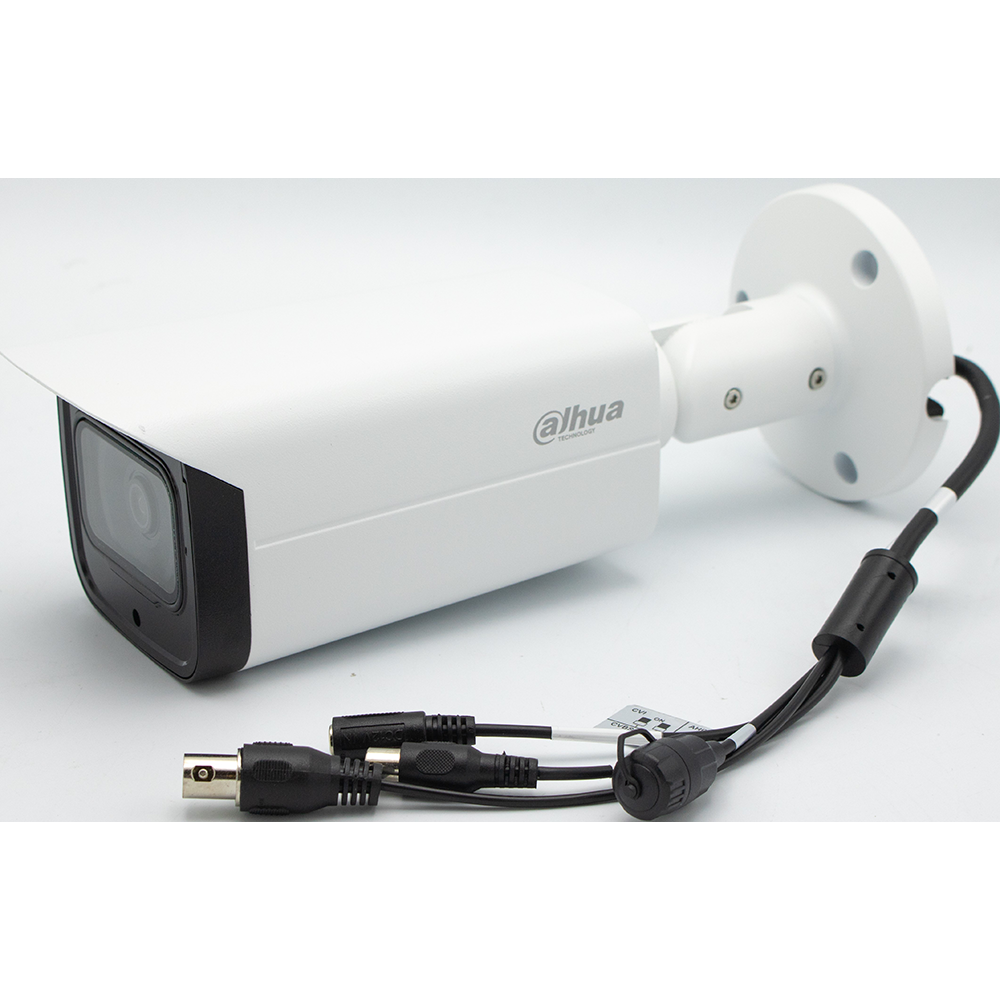

Experience the superior clarity of Dahua’s 2 MP HDCVI camera for vast coverage and superior image details. The 2 MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera offers a 3.6 mm fixed lens, a multi-language On-screen Display, and HD/SD switchable output. The camera is ideal for hosting diverse applications — Starlight Technology and True Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
Features:
- 1/2.8-in. 2 MP Progressive-scan CMOS Sensor
- 2 MP (1920 x 1080) at 30 fps Maximum Resolution
- 3.6 mm Fixed Lens
- Starlight Technology for Low-light Applications
- True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- Built-in Microphone
- HD or SD Output, Switchable
- Maximum IR Length 80 m (262 ft), Smart IR
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua dealer)
| Technical Specification | |
| Image Sensor | 1/2.8-in. CMOS Sensor |
| Effective Pixels | 1920 (H) x 1080 (V), 2 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.004 lux at F1.6, 30 IRE |
| 0 lux at F1.6 with IR On | |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 80.0 m (262.47 ft) |
| IR Control | Auto, Manual |
| IR LEDs | Four (4) |
| Lens | |
| Lens Type | Fixed Lens, Fixed Iris |
| Mount Type | Board-in |
| Focal Length | 3.6 mm |
| Maximum Aperture | F1.6 |
| Angle of View | Horizontal: 86.9° |
| Close Focus Distance | 1200.0 mm (47.24 in.) |
| Installation Angle | |
| Range | Pan: 0° to 360° |
| Tilt: 0° to 90° | |
| Rotation: 0° to 360° | |
| DORI Distances² | |
| Detect | Observe |
| (8 ppf) | (19 ppf) |
| 55 m | 22 m |
| (180 ft) | (72 ft) |
| Maximum Resolution | 1080p (1920 x 1080) | |
| Frame Rate | 1080p at 30 fps or 720p at 60 fps | |
| Video Output | One (1) BNC, Transmits HDCVI High-definition signal or CVBS, | |
| AHD or TVI Channel, switchable | ||
| RG-59/U Coax | 720p: 800 m (2624.67 ft) | |
| 1080p: 500 m (1640.42 ft) | ||
| Video Transmission³ | RG-6/U Coax | 720p: 1200 m (3937.01 ft) |
| 1080p: 800 m (2624.67 ft) | ||
| CAT 6 UTP | 720p: 450 m (1476.38 ft) | |
| (balun required) | 1080p: 300 m (984.25 ft) | |
| Day/Night | Auto (ICR), Manual | |
| OSD Menu | Multi-language | |
| BLC Mode | BLC, HLC, True WDR | |
| WDR | 120 dB | |
| Gain Control | AGC | |
| Noise Reduction | 2D, 3D | |
| White Balance | Auto, Manual | |
| Smart IR | Auto, Manual | |
| Certifications | ||
| CE | EN55032 | |
| EN55024 | ||
| EN50130-4 | ||
| Safety | UL60950-1 | |
| CAN/CSA C22.2 No.60950-1 | ||
| Electromagnetic Compatibility FCC CFR 47 Part 15 subpart B, | ||
| (EMC) | ANSI C63.4-2014 | |
| Interface | ||
| Audio⁴ | Input: One (1) Channel, RCA Jack, plus | |
| One (1) Built-in Microphone | ||
| Electrical | ||
| Power Supply | 12 VDC ± 30% | |
| Power Consumption | Maximum 10.1 W (12 VDC, IR On) | |
| Environmental | ||
| Operating Conditions | –40° C to +60° C (–40° F to +140° F) | |
| Less than 90% RH | ||
| *Initiate start up above –40° C (–40° F) | ||
| Storage Conditions | –40° C to +60° C (–40° F to +140° F) | |
| Less than 90% RH | ||
| Ingress Protection | IP67 | |
| Construction | ||
| Casing | Aluminium | |
| Dimensions | 244.10 mm x 90.40 mm x 90.40 mm | |
| (9.61 in. x 3.56 in. x 3.56 in.) | ||
| Net Weight | 0.75 kg (1.65 lb) | |
| Gross Weight | 0.92 kg (2.03 lb) | |
