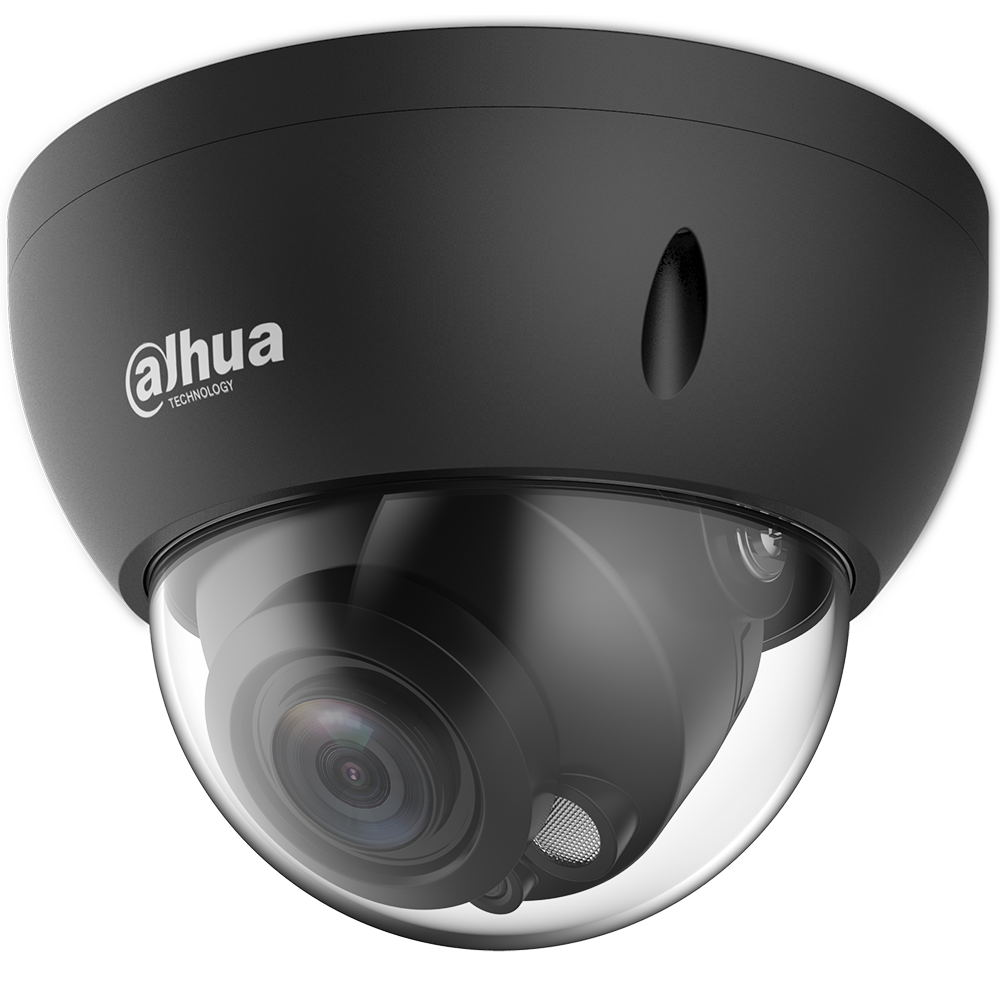

Experience the superior clarity of Dahua’s 5 MP HDCVI cameras for vast coverage and superior image details. The 5 MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera uses a STARVIS™ sensor and next-generation ISP chip technology developed by Dahua to deliver stunning video. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production, Dahua can offer the latest security systems at a cost-effective price.
Features:
- 1/2.8-in. 5 MP Progressive-scan STARVIS™ CMOS Sensor
- 5 MP (2592 x 1944) at 20 fps Maximum Resolution
- 2.7 mm to 13.5 mm Motorized Vari-focal Lens
- Starlight Technology for Low-light Applications
- True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
- HD or SD Output, Switchable
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- Maximum IR Length 30 m (98 ft), Smart IR
- IP67 Ingress Protection and IK10 Vandal Resistance
- Dual Power Input, 24 VAC or 12 VDC
- Five-year Warranty (for products sold through an authorized Dahua dealer)
|
Image Sensor |
|
|
|
1/2.8-in. STARVIS™ CMOS Sensor |
|
|
|
||
|
Effective Pixels |
|
|
|
2592 (H) x 1944 (V), 5 MP |
|
|
|
||
|
Scanning System |
|
|
Progressive |
|
|
|
|
||
|
Electronic Shutter Speed |
|
|
1/3 s to 1/100,000 s |
|
|
|
|
||
|
Minimum Illumination |
|
|
Color: 0.005 lux at F1.3, 30 IRE |
|
|
|
|||
|
|
|
0 lux with IR on |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
S/N Ratio |
|
|
|
More than 65 dB |
|
|
|
|
|
|
IR Distance |
|
|
|
Up to 30.0 m (98.43 ft) |
|
|
|
||
|
IR On/Off Control |
|
|
Auto, Manual |
|
|
|
|
||
|
IR LEDs |
|
|
|
Two (2) |
|
|
|
|
|
|
Lens |
|
|
|
|
|
|
|
|
|
|
Lens Type |
|
|
|
Motorized Lens, Fixed Iris |
|
|
|
||
|
Mount Type |
|
|
|
Board-in |
|
|
|
|
|
|
Focal Length |
|
|
|
2.7 mm to 13.5 mm |
|
|
|
|
|
|
Maximum Aperture |
|
|
F1.3 |
|
|
|
|
||
|
Angle of View |
|
|
|
Horizontal: 102° to 29° |
|
|
|
||
|
Focus Control |
|
|
|
Auto, Manual |
|
|
|
|
|
|
Close Focus Distance |
|
|
200 mm (7.87 in.) |
|
|
|
|
||
|
Installation Angle |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Range |
|
|
|
Pan: 0° to 355° |
|
|
|
|
|
|
|
|
|
Tilt: 0° to 75° |
|
|
|
|
||
|
|
|
|
|
|
Rotation: 0° to 355° |
|
|
|
|
|
DORI Distances¹ |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Detect |
|
|
Observe |
Recognize |
Identify |
|
|
|
|
|
(8 ppf) |
|
|
(19 ppf) |
(38 ppf) |
(76 ppf) |
|
|
|
Wide |
64 m |
|
|
26 m |
13 m |
6 m |
|
||
|
(210 ft) |
|
|
(85 ft) |
(43 ft) |
(20 ft) |
|
|||
|
|
|
|
|
|
|||||
|
Tele |
222 m |
|
|
89 m |
44 m |
22 m |
|
||
|
(728 ft) |
|
|
(292 ft) |
(144 ft) |
(72 ft) |
|
|||
|
|
|
|
|
|
|||||
|
Video |
|
|
|
|
|
|
|
|
|
|
Maximum Resolution |
5 MP (2592 x 1944) |
|
|
|
|
||||
|
Frame Rate |
|
5 MP at 20 fps, 4 MP at 30 fps, 1080p at 30 fps |
|
|
|
||||
|
|
|
|
|
|
|
|
|||
|
Video Output |
|
One (1) BNC HDCVI High-definition Channel or, |
|
|
|
||||
|
|
One (1) BNC CVBS Channel, switchable |
|
|
|
|||||
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
720p: |
800 m (2624.67 ft) |
|
|
|
|
RG-59/U Coax |
1080p: |
500 m (1640.42 ft) |
|
|
|
|
|
4 MP: |
500 m (1640.42 ft) |
|
|
|
Video |
|
720p: |
1200 m (3937.01 ft) |
|
|
|
RG-6/U Coax |
1080p: |
800 m |
(2624.67 ft) |
|
|
|
Transmission² |
|
4 MP: |
700 m |
(2296.59 ft) |
|
|
|
CAT 6 UTP |
720p: |
450 m (1476.38 ft) |
|
|
|
|
1080p: |
300 m (984.25 ft) |
|
||
|
|
(balun required) |
|
|||
|
|
4 MP: |
300 m (984.25 ft) |
|
||
|
|
|
|
|||
|
Day/Night |
|
Auto (ICR), Manual |
|
||
|
OSD Menu |
|
Multi-language |
|
|
|
|
BLC Mode |
|
BLC, HLC, True WDR |
|
||
|
WDR |
|
120 dB |
|
|
|
|
Gain Control |
|
AGC |
|
|
|
|
Noise Reduction |
|
2D, 3D |
|
|
|
|
White Balance |
|
Auto, Manual |
|
|
|
|
Smart IR |
|
Auto, Manual |
|
|
|
