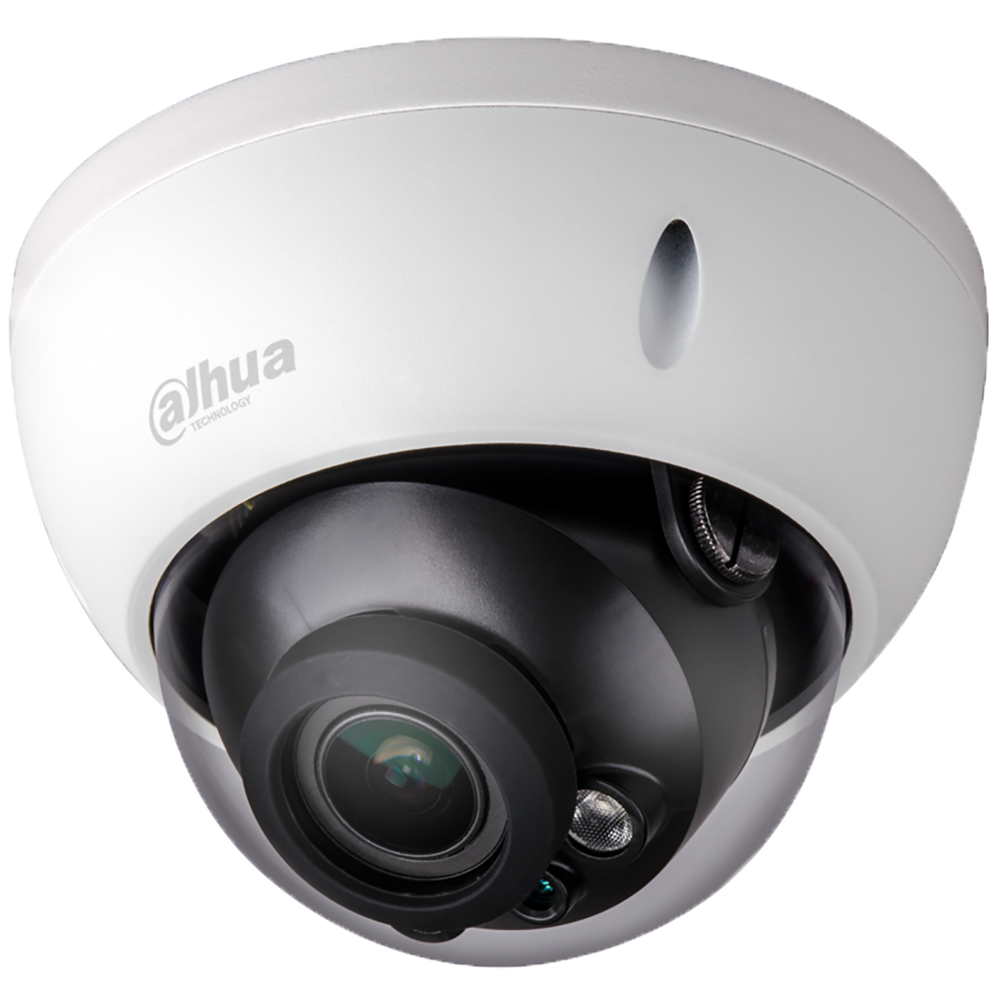

Experience the superior clarity of Dahua’s Ultra 4K HDCVI cameras for vast coverage and superior image details. Dahua Ultra 4K HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The 4K HDCVI camera uses next-generation ISP chip technology developed by Dahua to deliver stunning video. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production, Dahua can offer the latest security systems at a cost-effective price.
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Features :
- 1/1.8-in. 8MP Progressive-scan CMOS Imager
- 4K (3840 x 2160) at 15 fps Maximum Resolution
- 3.7 mm to 11 mm Motorized Optical Zoom Lens
- Starlight Technology for Ultra Low-light Applications
- True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
- HD or SD Output, Switchable
- Maximum IR Length 30 m (98 ft), Smart IR
- Dual Power Input, 24 VAC or 12 VDC Power Supply
- IP67 Ingress Protection and IK10 Vandal Resistance
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| Image Sensor | 1/1.8-in. CMOS Sensor | |
| Effective Pixels | 3840 (H) x 2160 (V), 8 MP | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s | |
| Minimum Illumination | Color: 0.005 Lux at F1.5, 30 IRE | |
| 0 Lux with IR on | ||
| S/N Ratio | More than 65 dB | |
| IR Distance | Up to 30.0 m (98.43 ft) | |
| IR On/Off Control | Auto, Manual | |
| IR LEDs | Two (2) | |
| Lens | ||
| Lens Type | Motorized Lens, Fixed Iris | |
| Mount Type | Board-in | |
| Focal Length | 3.7 mm to 11 mm | |
| Maximum Aperture | F1.5 | |
| Angle of View | Horizontal: 112° to 46° | |
| Focus Control | Auto, Manual | |
| Close Focus Distance | 200 mm (7.87 in.) | |
| Pan / Tilt / Rotation | ||
| Pan/Tilt/Rotation | Pan: 0° to 355° | |
| Tilt: 0° to 75° | ||
| Rotation: 0° to 355° | ||
| DORI Distances¹ | ||
| Observe | Recognize | |
| (19 ppf) | (38 ppf) | |
| Wide-angle | 33 m | 17 m |
| (109 ft) | (54 ft) | |
| Telephoto | 76 m | 38 m |
| (250 ft) | (125 ft) | |
| Video | ||
| Maximum Resolution | ||
| 8 MP at 15 fps, | ||
| 6 MP at 20 fps, or | ||
| 4 MP at 30 fps | ||
| 5 MP at 20 fps | ||
| Frame Rate | 4 MP at 30 fps | |
| 5 MP at 20 fps | ||
| 4 MP at 30 fps | ||
| 960H | ||
| Video Output | One (1) BNC HDCVI 4K Ultra High-definition Channel or, | |
| One (1) BNC CVBS Channel, switchable | ||
| 720p: | 800 m (2624.67 ft) | |||
| RG-59/U Coax | 1080p: | 500 m (1640.42 ft) | ||
| 4K: | 500 m (1640.42 ft) | |||
| Video | 720p: | 1200 m (3937.01 ft) | ||
| RG-6/U Coax | 1080p: | 800 m | (2624.67 ft) | |
| Transmission² | 4K: | 700 m | (2296.59 ft) | |
| CAT 6 UTP | 720p: | 450 m (1476.38 ft) | ||
| 1080p: | 300 m (984.25 ft) | |||
| (balun required) | ||||
| 4K: | 300 m (984.25 ft) | |||
| Day/Night | Auto (ICR), Manual | |||
| OSD Menu | Multi-language | |||
| BLC Mode | BLC, HLC, True WDR | |||
| WDR | 120 dB | |||
| Gain Control | AGC | |||
| Noise Reduction | 2D/3D | |||
| White Balance | Auto, Manual | |||
| Smart IR | Auto, Manual | |||
