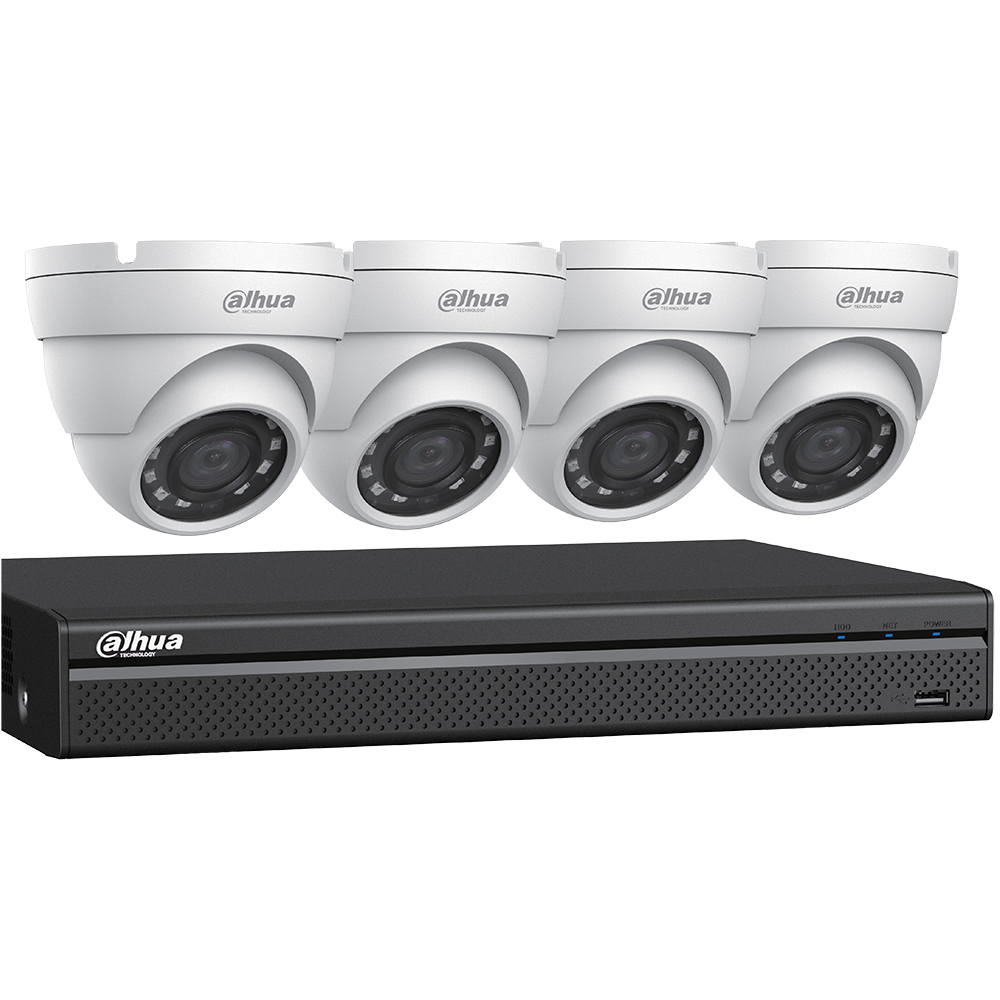

Four (4) 1080p HDCVI Eyeball Cameras with One (1) 4-channel 1080p HDCVI DVR
The Dahua HDCVI Security System provides all the components to quickly install, configure, and employ a complete video surveillance solution. The HDCVI cameras offer the clarity of Full HD 1080p video, and the HDCVI DVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The cameras and the HDCVI DVR supports multiple video outputs making the kit compatible with many existing systems. The kit features Dahua’s HDCVI technology that leverages an existing coaxial infrastructure, saving time and costs from running networking and power cables.
Features:
1080p HDCVI Cameras
- 1080p at 30 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Maximum IR Length 30 m (98 ft) with Smart IR
- IP67 Environmental Protection
2 MP HDCVI DVR
- 2 TB Pre-installed Hard Disk Drive
- Embedded Processor
- Four (4) Channel Penta-brid Recorder
- Support for 4+2 IP Channels
- Smart H.265+ and Smart H.264+ Dual Codec
- 1080p at 15 fps Maximum Record Rate
- Automatically Detects HDCVI, AHD, TVI, and CVBS Inputs
- 24 Mbps Incoming Bandwidth
| Technical Specification | |
| A211K02 1080p HDCVI Camera | |
| Camera | |
| Image Sensor | 1/2.7-in. CMOS |
| Effective Pixels | 1920(H) x 1280(V), 2 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/30 s to 1/100000 s |
| Minimum Illumination | Color: 0.02 Lux at F1.85 (30 IRE) 0 Lux with IR on |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 30 m (98.04 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | 12 |
Lens
| Lens Type | Fixed Lens / Fixed Iris |
| Mount Type | Board-in |
| Focal Length | 2.8 mm |
| Max Aperture | F1.85 |
| Horizontal Angle of View | 103° |
| Close Focus Distance | 900 mm (35.43 in.) |
Video
| Resolution | 1080p (1920 x 1080) | |
| Frame Rate | 1080p at 30 fps 720p at 30/60 fps | |
| Video Output | One (1) BNC HDCVI High-definition Channel or One (1) BNC CVBS, AHD or TVI Channel, switchable | |
| Video Transmission² | RG-59/U Coax | 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) |
| RG-6/U Coax | 720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) | |
CAT 6 UTP (balun required) | 720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) | |
| Day/Night | Auto (ICR), Manual | |
| OSD Menu | Multi-language | |
| BLC Mode | BLC, HLC, DWDR | |
| WDR | Digital WDR | |
| Gain Control | AGC | |
| Noise Reduction | 2D | |
| White Balance | Auto, Manual | |
| Smart IR | Auto, Manual | |
| Technical Specification |
| X51B1H2 1080p H.265 Penta-brid HDCVI DVR |
System
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
Interface
| Analog Camera Input | Four (4) Channels, BNC |
| Preview Ability³ | Channels 1 and 2: 5 M-N at 20 fps or 4 M-N, 1080p, 720p at 30 fps Other Channels: 4 M-N, 1080p, 720p at 30 fps |
| HDCVI | 5 MP, 4 MP, 1080p at 30 fps, 720p at 60 fps, 720p at 30 fps |
| AHD | 5 MP, 4 MP, 1080p at 30 fps, 720p at 30 fps |
| TVI | 5 MP, 4 MP, 1080p at 30 fps, 720p at 30 fps |
| CVBS | NTSC |
| IP Camera Input | 4 + 2 |
| Audio Input | One (1) Channel, RCA |
| Output | One (1) Channel, RCA |
| Two-way Talk | Reuse Audio In/Out, RCA |
Recording
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 | |
| Recording Resolution¹ | 5 M-N (1296 x 1944), 4 M-N (1280 x 1440), 1080p, 1080N, 720p, 960H, D1, CIF | |
| Record Rate³ | Main Stream | 5 M-N at 10 FPS, 4 M-N at 15 fps, 1080N/720p at 30 fps |
| Interface | One (1) HDMI (3840 x 2160) One (1) VGA (1920 x 1080) |
| Native Output Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Maximum Decoding | 4 Channels of 5 M-N at 10 fps 4 Channels of 1080p at 7 fps 4 Channels of 720p at 15 fps 4 Channels of 960H at 30 fps |
| Multi-screen Display | |
| IP extension mode disabled | 1/4 |
| IP extension mode enabled | 1/4/6 |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
