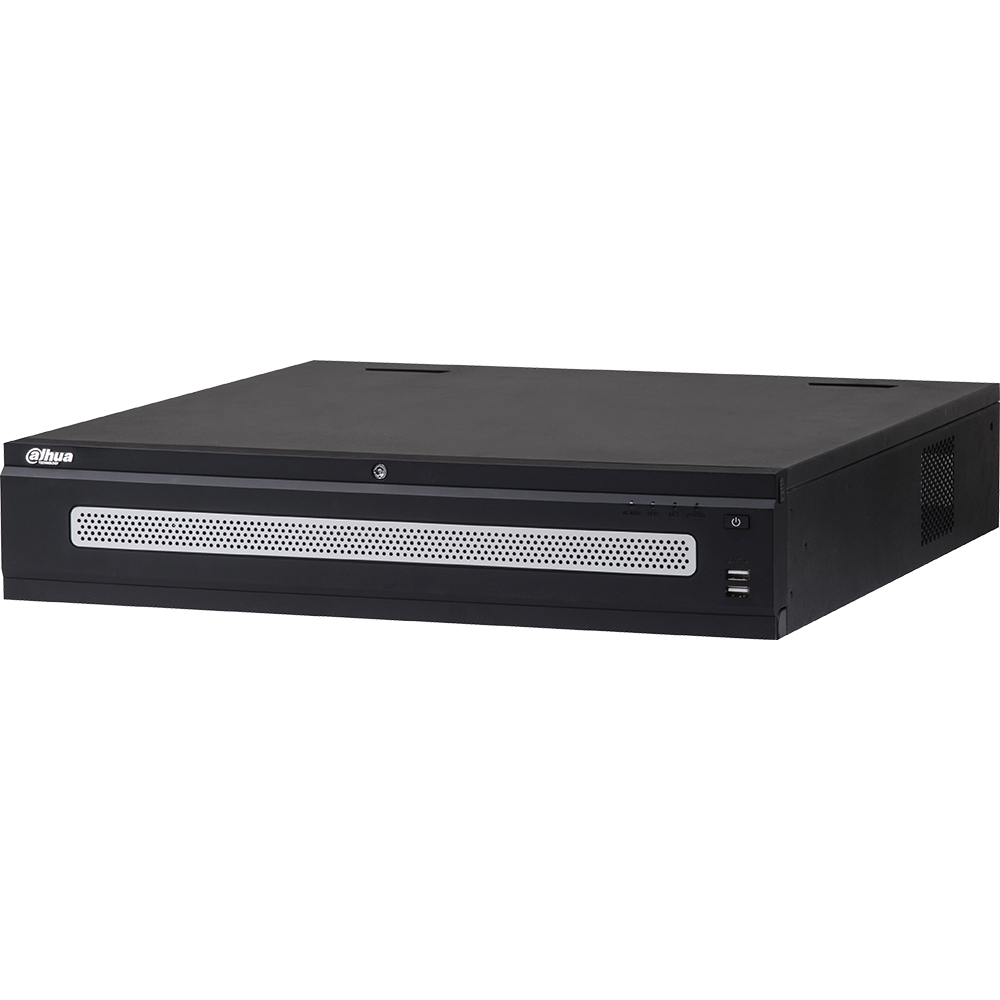

NVR, 384Mbps/384Mbps (128 channel IP Video Inputs), 4ch@4K/16ch@1080p, Audio, Alarm, 2U, With 4 TB included
Dahua’s network video recorder offers unparalleled recording technology for IP video surveillance applications. For applications where details are critical for identification, this enterprise‐level NVR provides a powerful Intel processor with up to 4K resolution.
Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage. The NVR is compatible with numerous third‐party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi‐user access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.
Features:
- H.265/H.264/MJPEG Video Compression
- Maximum 128 IP Camera Inputs with IVS Recording
- Maximum 384 Mbps Incoming Bandwidth
- Up to 12 MP Resolution for Preview and Playback
- Supports RAID 0 /1/5/6/10
- Smart Tracking
- Intelligent Video System with Business Analytics (two IP channels)
| System | |
| Main Processor | Intel Quad-core Processor |
| Operating System | Embedded LINUX |
| Display |
| Interface | 2 HDMI (up to 3840 x 2160, Different Source), 1 VGA |
| Native Output Resolution | 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 |
| Maximum Decoding | 4ch @12MP 20fps 4ch @8MP 30fps 8ch @8MP 15fps 5ch @6MP 30fps 6ch @5MP 30fps 8ch @5MP 25fps 8ch@ 4MP 30fps 9ch @4MP 20fps 12ch @3MP 25fps 8ch@1080p 60 fps 16ch @1080p 30fps 25ch@720p 30fps |
| Multi-screen Display | 1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Video Detection and Alarm |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank |
| Alarm Input | 16 Channel, Low Level Effective, Green Terminal Interface |
| Relay Output | 8 Channel, NO/NC Programmable, Green Termina Interface |
| Tracking Trigger Event | t Targeting, Zoom, Tracking, Recording, Snapshot, Alarm, etc. |
| Playback and Backup |
| Playback | Mbps in Raid 5 Mode Mbps in single HDD Mode |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate tosecond) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device |
| Auxiliary Interface |
| Front Cover | Support Hot-swap |
| USB | USB Ports (2 USB 2.0 , 2 USB 3.0 ) |
| RS232 | Port for PC Communication and Keyboard |
| RS485 | Port for PTZ Control |
| Audio and Video |
| IP Camera Input | Channel |
| Two-way Talk | Channel Input, 1 Channel Output, RCA |
| Recording |
| Compression | H.265/H.264/MJPEG |
| Supported IP Camera Resolution | MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, MP, 720p |
| Maximum Incoming Bandwidth | Mbps |
| Bit Rate | Kbps to 20 Mbps per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Alarm, Stop |
| Record Interval | to 120 min (default: 60 min), Pre-record: 1 to 30 sec, Post-record: 10 to 300 sec |
| Network |
| Ethernet | RJ-45 Ports (10/100/1000 Mbps) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS) |
| Max. User Access | users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, CGI Conformant |
| Power Supply | to 240 VAC, 50/60 Hz |
| Power Consumption | < 20 W, without HDD |
| Environmental | |
| Operating Conditions | -10°C to +55°C (+14°F to +131°F), 86 to 106 |
| Storage Conditions | -20°C to +70°C (-4°F to +158°F), 0 to 90% RH |
