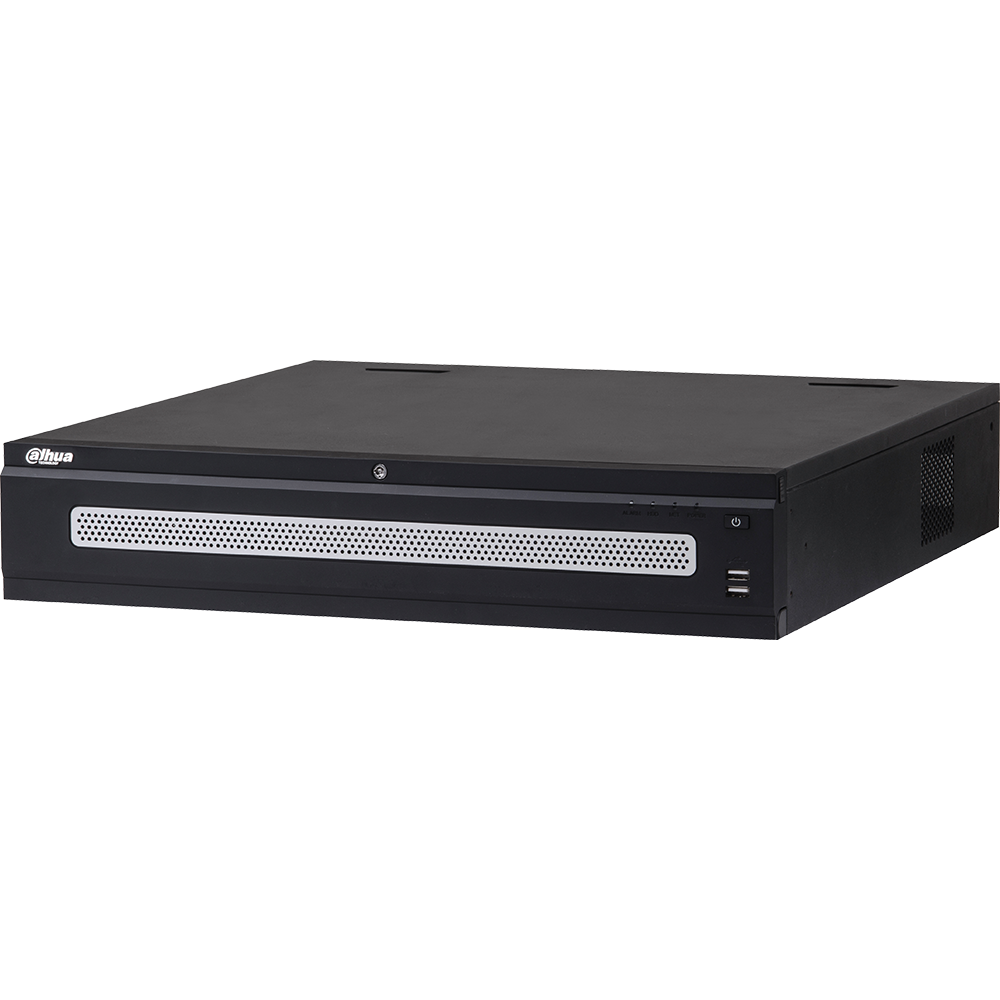

NVR, 384Mbps/384Mbps (64 channel IP Video Inputs), 4ch@4K/16ch@1080p, Audio, Alarm, 2U, 24TB included
Dahua's next generation network video recorder offers unparalleled recording technology for IP video security applications. This enterprise-level NVR provides a powerful Intel processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, center storage, edge storage, and back up storage.
The NVR is compatible with numerous third-party devices making it the perfect solution for security systems with or without a video management system (VMS). Its open architecture supports multiuser access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.
Features:
- Smart H.265+, H.265, Smart H.264+, H.264, MJPEG Video Compression
- Maximum 64 IP Camera Inputs with IVS Recording
- Maximum 384 Mbps Incoming Bandwidth
- Up to 12 MP Resolution for Preview and Playback
- Supports RAID 0 /1/5/6/10
- iSCSI for Expanded Storage Space
- Smart Tracking
| System | |
| Main Processor | Intel Quad-core Processor |
| Operating System | Embedded LINUX |
| Display |
| Interface | 2 HDMI (up to 3840 x 2160 , Different Source), 1 VGA |
| Spot Output | HDMI 2 |
| Native Output Resolution | 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 |
| Maximum Decoding | 4ch @12MP 20fps 4ch @8MP 30fps 8ch @8MP 15fps 5ch @6MP 30fps 6ch @5MP 30fps 8ch @5MP 25fps 8ch@ 4MP 30fps 9ch @4MP 20fps 12ch @3MP 25fps 8ch@1080p 60 fps 16ch @1080p 30fps 25ch@720p 30fps |
| Multi-screen Display | 1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Video Detection and Alarm |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank |
| Alarm input | 16 Channel, Low Level Effective, Green Terminal Interface |
| Relay Output | 8 Channel, NO/NC Programmable, Green Termina Interface |
| Tracking Trigger Event | Targeting, Zoom, Tracking, Recording, Snapshot, Alarm, etc. |
| Playback and Backup |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to one second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device |
| Storage |
| Internal HDD | 8 SATA III Ports, Up to 10 TB per HDD |
| HDD Mode | Single, Raid 0/1/5/6/10 (Supports Global HDD Hot-spare) Enterprise-level HDD Recommended |
| eSATA | 1 eSATA Port |
| Auxiliary Interface |
| Front Cover | Support Hot-swap |
| USB | 4 USB Ports (2 USB 2.0 , 2 USB 3.0 ) |
| RS232 | 1 Port, for PC Communication and Debug |
| RS485 | 1 Port, for PTZ Control |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panaso Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and more |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Supported IP Camera Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p |
| Maximum Incoming Bandwidth | 384 Mbps |
| Bit Rate | 1 Kbps to 20 Mbps per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Alarm, Stop |
| Record Interval | 1 to 120 min (default: 60 min), Pre-record: 1 to 30 sec, Post-record: 10 to 300 sec |
| Network |
| Ethernet | Two (2) RJ-45 Ports (10/100/1000Mbps) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, CGI Conformant |
| Power Supply | 110 to 240 VAC, 50/60 Hz |
| Power Consumption | < 20 W, without HDD |
| Environmental | |
| Operating Conditions | -10°C to +55°C (+14°F to +131°F), 86 to 106 |
| Storage Conditions | 0°C to +40°C (32°F to +104°F), 30 to 85% RH |
