Dahua - DHI-VTO4202F-P-S2 - Intercom Modular Outdoor station, 2 MP camera, Required
Part number:
DHI-VTO4202F-P-S2
Price:

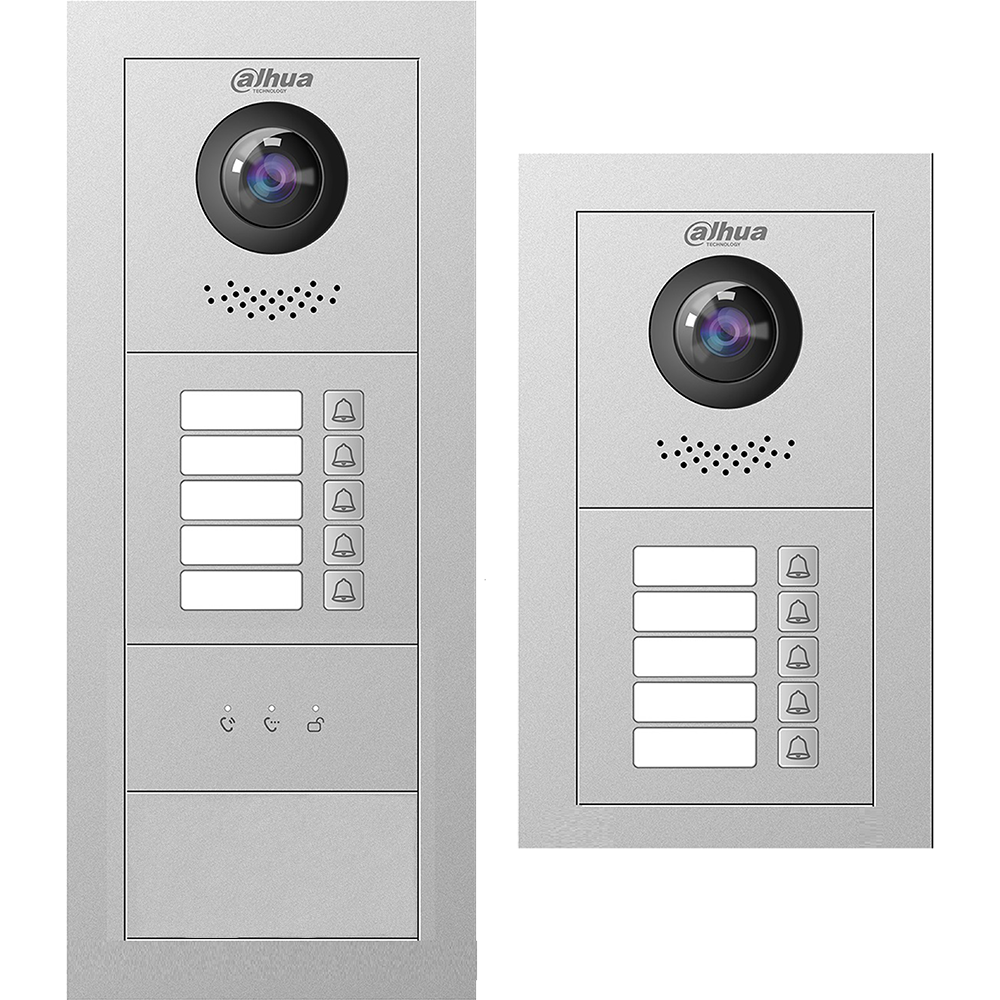

The Dahua Intercom Modular System is a complete intercom solution that offers full customization of the entire system. This intercom system starts with a 2 MP outdoor video intercom module that offers a wide-angle view lens, high-resolution images even in dark environments, and two-way talk. Then, add optional modules that offer door access capability (card reader and keypad), call buttons, information text display, and status light indicators. The system also offers optional accessories to flush-or surface-mount a two-or three-module intercom system.
Modular Intercom Components:

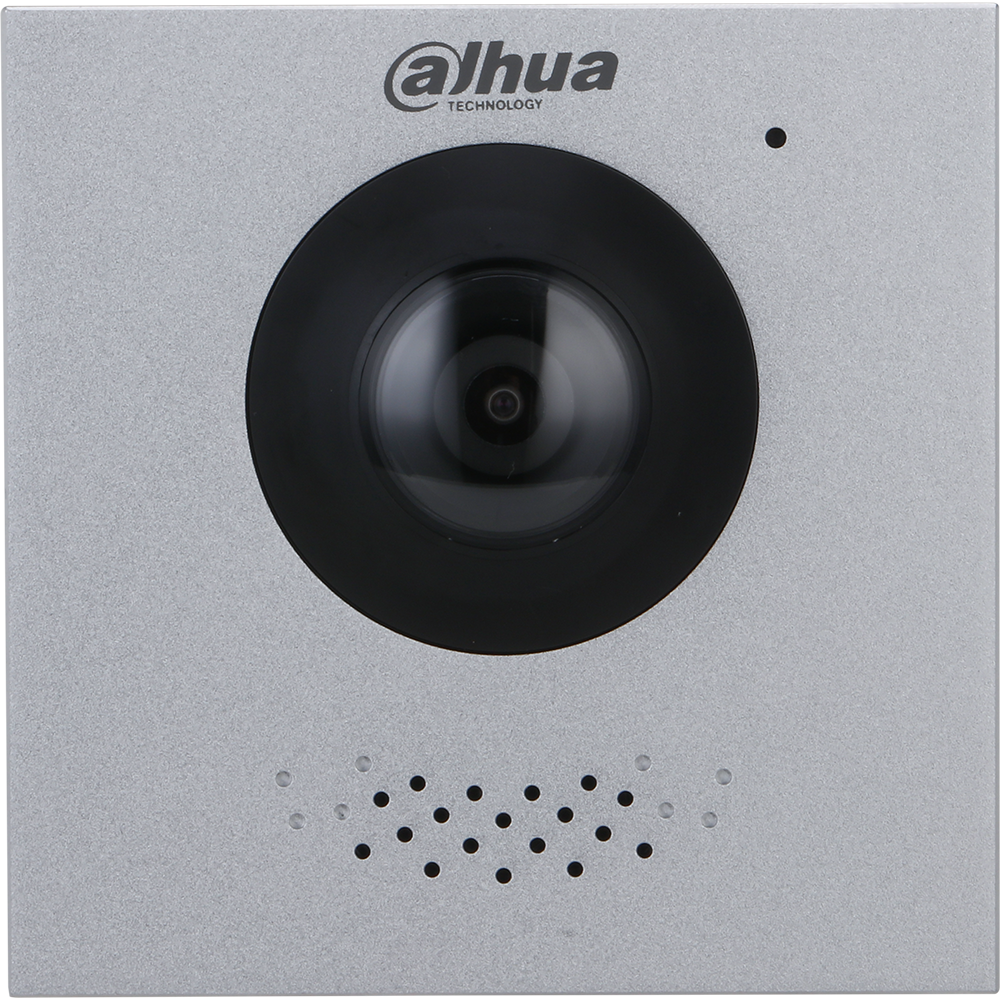

- DHI-VTO4202F-P-S2: 2 MP Outdoor Video Intercom (Required)
- DHI-VTO4202F-MB5: Five-button Call Panel
- DHI-VTO4202F-MF: Fingerprint Reader

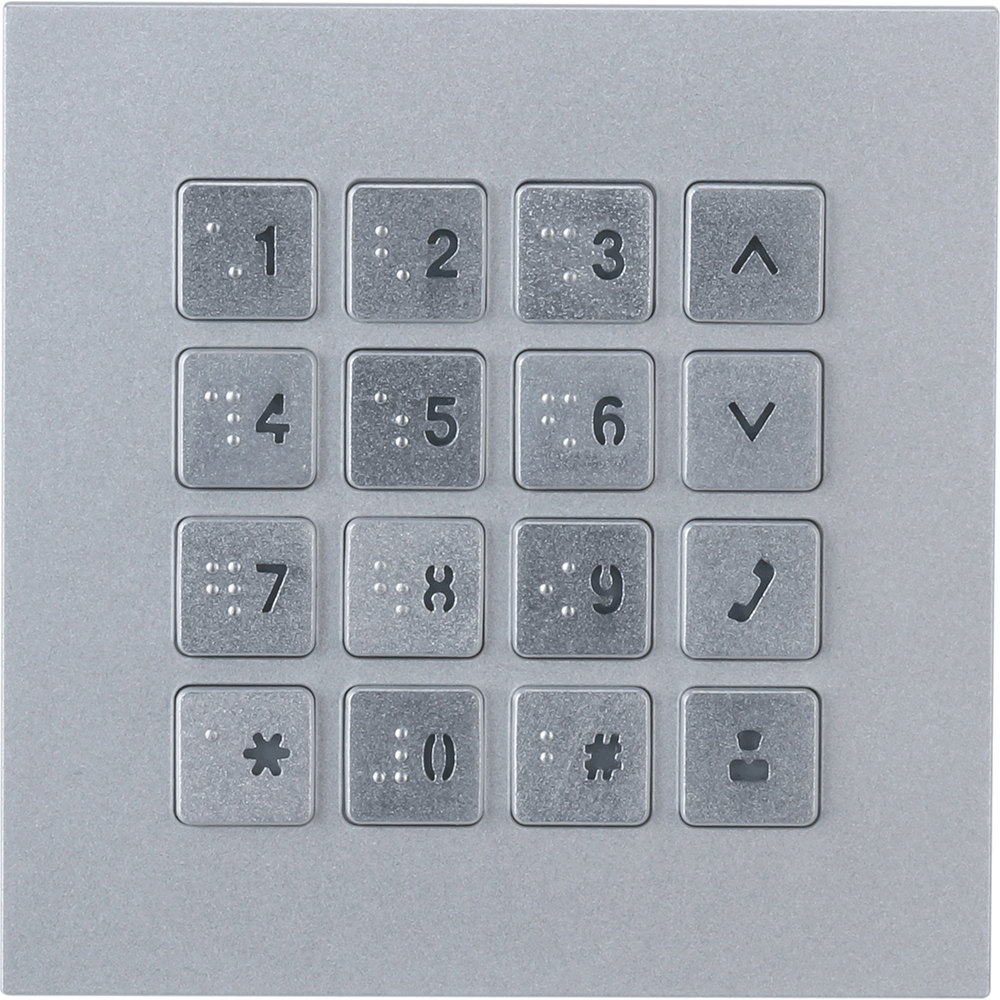

- DHI-VTO4202F-MK: Keypad
- DHI-VTO4202F-ML: Status Light Panel
- DHI-VTO4202F-MN: Blank Panel
- DHI-VTO4202F-MS: Information Text Display
Features:
- 2MP Wide Angle Camera with Night Vision
- Built-in Microphone with Two-way Talk
- Records Call Sessions from the Indoor Monitor
- Access Control Supports Two Locks
- Performs Remote Door Unlock
- Compatible with Two-wire or RJ45 Connection
- Supports Secure Password Entry
- Anodized Aluminum Panel can be Surface- or Flush-mounted
- Fully Customizable System
- IP65 Ingress Protection and IK07 Vandal Resistance
| Technical Specification: DHI-VTO4202F-P-S2 | |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Video | |
| Image Sensor | 1/2.5-in. 2 MP CMOS Sensor |
| Lens | 1.9 mm |
| Angle of View | Horizontal: 168.6° Vertical: 87.1° Diagonal: 176.7° |
| Wide Dynamic Range | 120 dB |
| Noise Reduction | 3D NR |
| Compression | H.265, H.264 |
| Resolution | Main Stream: 720p at 30 fps Sub Stream: 1080p 30 fps |
| Bit Rate | 256 Kbps to 4 Mbps |
| Day/Night | Auto (ICR) |
| Audio | |
| Compression | G.711a, G.711u, PCM |
| Input | Omnidirectional Microphone |
| Output | Built-in Speaker |
| Bi-directional Talk | Support for Dual-way Bi-directional Talk |
| Enhancement | Echo Suppression, Digital Noise Reduction |
| Bit Rate | 16 KHz, 16 Bit |
| Interface | |
| Ports | One (1) Electric Lock One (1) Exit Button One (1) Door Status Detection One (1) Lock Control |
| Alarm Output | One (1) Channel |
| Power Output | 12 VDC, 100 mA |
| Network | |
| Ethernet | One (1) RJ45 10/100 Mbps Port |
| Network Protocols | SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP |
| Certifications | |
| Safety | EN 62368-1:2014/A11:2017 |
| Electromagnetic Compatibility (EMC) | CFR 4 7 FCC P art 15 subpart B EN 55032:201 5; EN 61000 3 2:2014 EN 61000 3 3:2013; EN 55024:2010/A1:2015; EN 55035:2017; EN 50130 4:2011/A1:2014 |
| Electrical | |
| Power | • DHI-VTNS2003B-2, Dahua Two-wire Switch (maximum power supply distance 50.0 m [164.04 ft]) • 48 VDC, 1 A • PoE (IEEE802.3af Class 0) |
| Power Consumption | ≤ 12 W |
| Environmental | |
| Operating Temperature | –30° C to +60° C (–22° F to +140° F) |
| Operating Humidity | 10% to 95%, Relative (non-condensing) |
| Operating Altitude | 0 m to 3000.0 m (0 ft. to 9842.52 ft) |
| Ingress Protection | IP65 |
| Vandal Resistance | IK07 |
| Construction | |
| Material | Anodized Aluminum |
| Color | Silver |
| Dimensions | 100.0 mm x 100.0 mm x 36.0 mm (3.94 in. x 3.94 in. x 1.41 in.) |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 0.40 kg (0.88 lb) |
| Installation | Surface- or Flush-mount |
