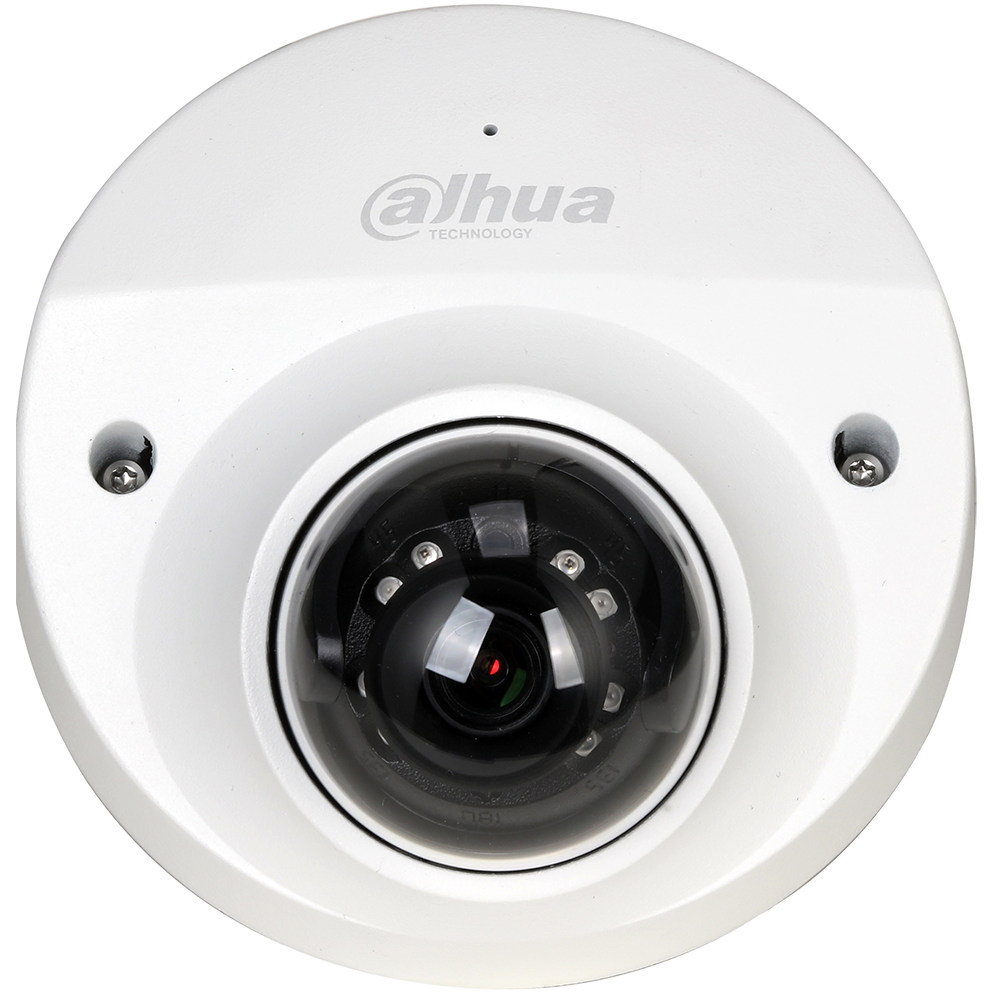

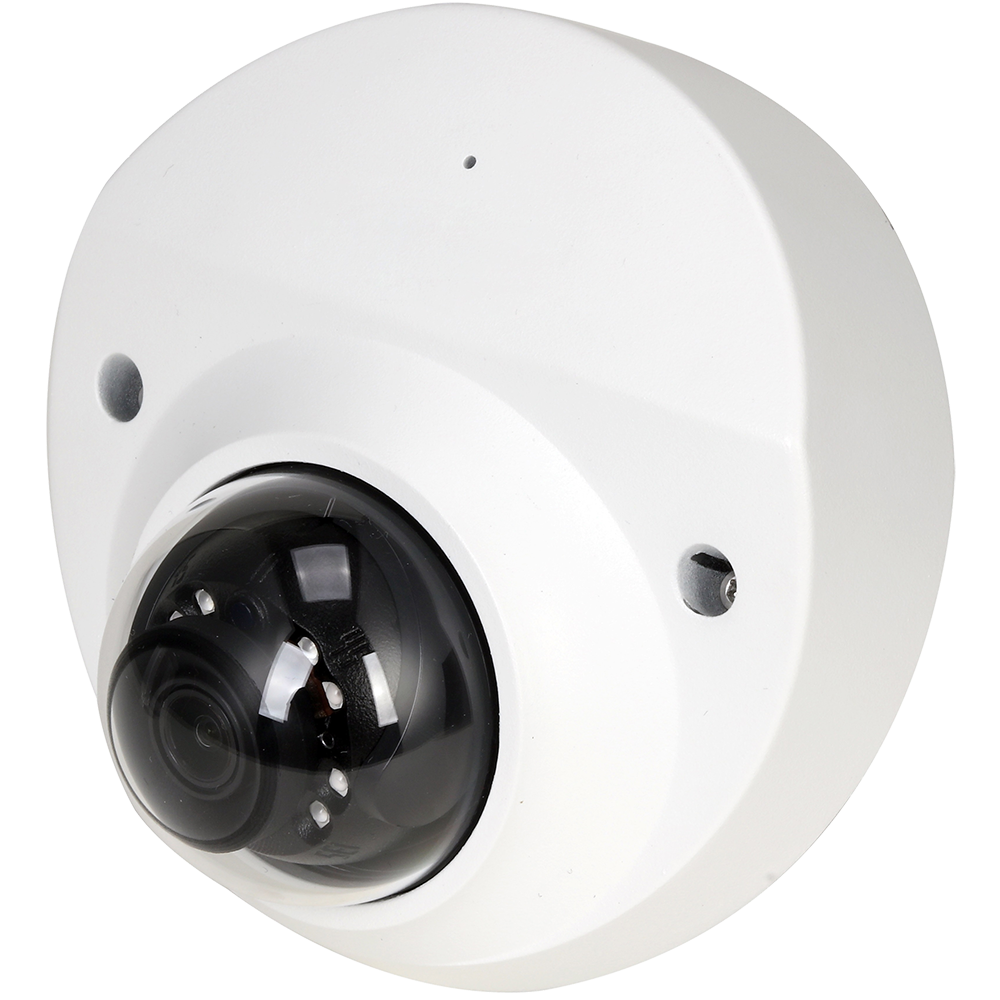

IPC-HDBW5241FN-M12 2.8mm - EOL
Part number:
IPC-HDBW5241FN-M12 2.8mm
Price:

Dahua’s Mobile series cameras offer high-resolution video and cutting-edge technology in a compact and accessible package. The cameras feature H.265 video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera series incorporates True Wide Dynamic Range, and Smart IR features typically found on high-end surveillance systems. This series provides a rugged enclosure rated to IP67 Ingress Protection to protect your security investment.



Features :

  • 1/2.8-in. 2 MP Progressive-scan STARVIS™ CMOS Sensor
  • Triple-stream Encoding

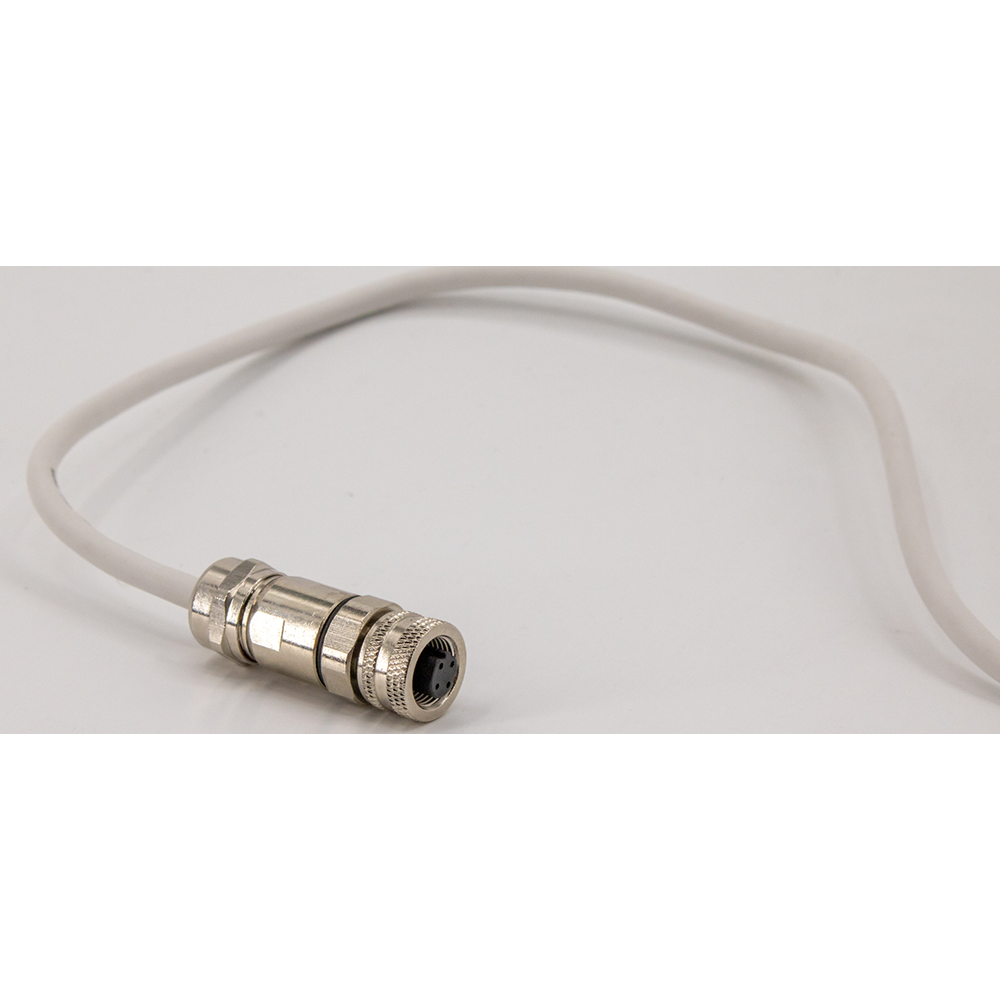

  • M12 D-Coding Aviation Connection
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 2 MP (1920 x 1080) at 30 fps
  • 2.8 mm Fixed Lens
  • Smart Detection Support
  • True Wide Dynamic Range (120 dB) and True Day/Night
  • Built-in Microphone
  • EN 50155 Shock and Vibration Certification
  • Maximum IR LED Distance 30 m (98.43 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • 5-year Warranty (for products sold through an authorized Dahua dealer)
Camera
Image Sensor 1/2.8-in. 2 MP Progressive Scan STARVIS™ CMOS
Effective Pixels 1920(H ) x 1080(V)
RAM/ROM 512 MB / 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual; 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.002 lux at F1.6
0 lux at F1.6 with IR on
S/N Ratio More than 56 dB
IR Distance Distance up to 30.0 m (98.43 ft)
IR On/Off Control Auto, Manual
IR LEDs Eight (8)
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm
Maximum Aperture F1.6
Angle of View Horizontal: 106°
Vertical: 56°
Diagonal 126°
Iris Type Fixed
Close Focus Distance 0.60 m (1.97 ft)
Name
Description
Size
Downloads
File
Datasheet
0.3mb
