ITC215-PW6M-IRLZF-B
Part number:
ITC215-PW6M-IRLZF-B
Price:

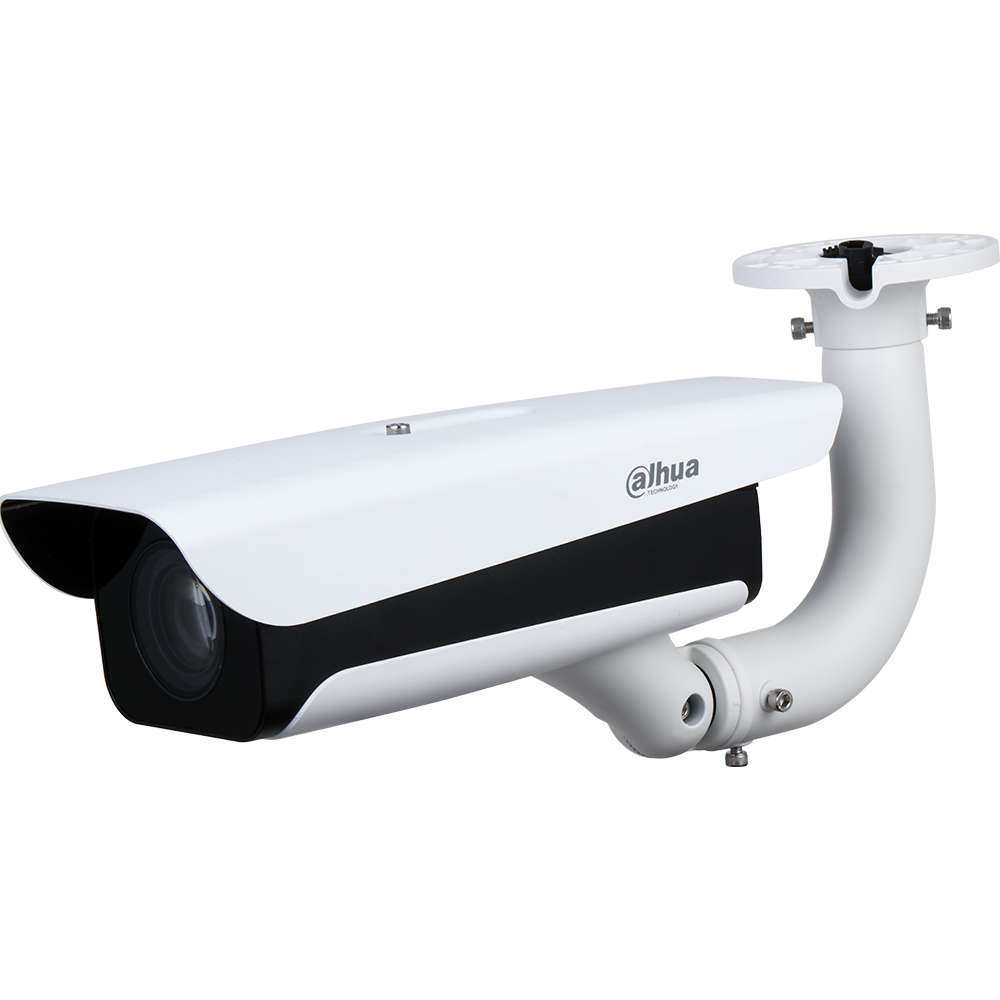

The ITC215-PW6M-IRLZF-B is a license plate capture camera with a recording resolution of 1920 x 1080 (1080p) at 30 frames per second with a 1/2.8-in. CMOS sensor. The camera includes a 3.2 mm to 10.5 mm vari-focal lens that lets the installer adjust the zoom angle of the picture, providing a 108.1° to 30.3° horizontal angle of view. The camera can capture license plates of vehicles traveling up to 60 kph (37 mph). The camera can be mounted between 3 m and 8 m (9.84 ft and 26.25 ft) from where the vehicles will be traveling.



Features:

  • 1/2.8-in 2 MP CMOS Sensor
  • License Plate Recognition Distance Distance up to 8 m (26.25 ft)
  • Capture and Recognize License Plates from Vehicles Traveling up to
  • 40 kph (25 mph)
  • H.265 and H.264 Dual Codec
  • 1080p at 30 fps Maximum Resolution
  • 3.2 mm to 10.5 mm Motorized Vari-focal Lens

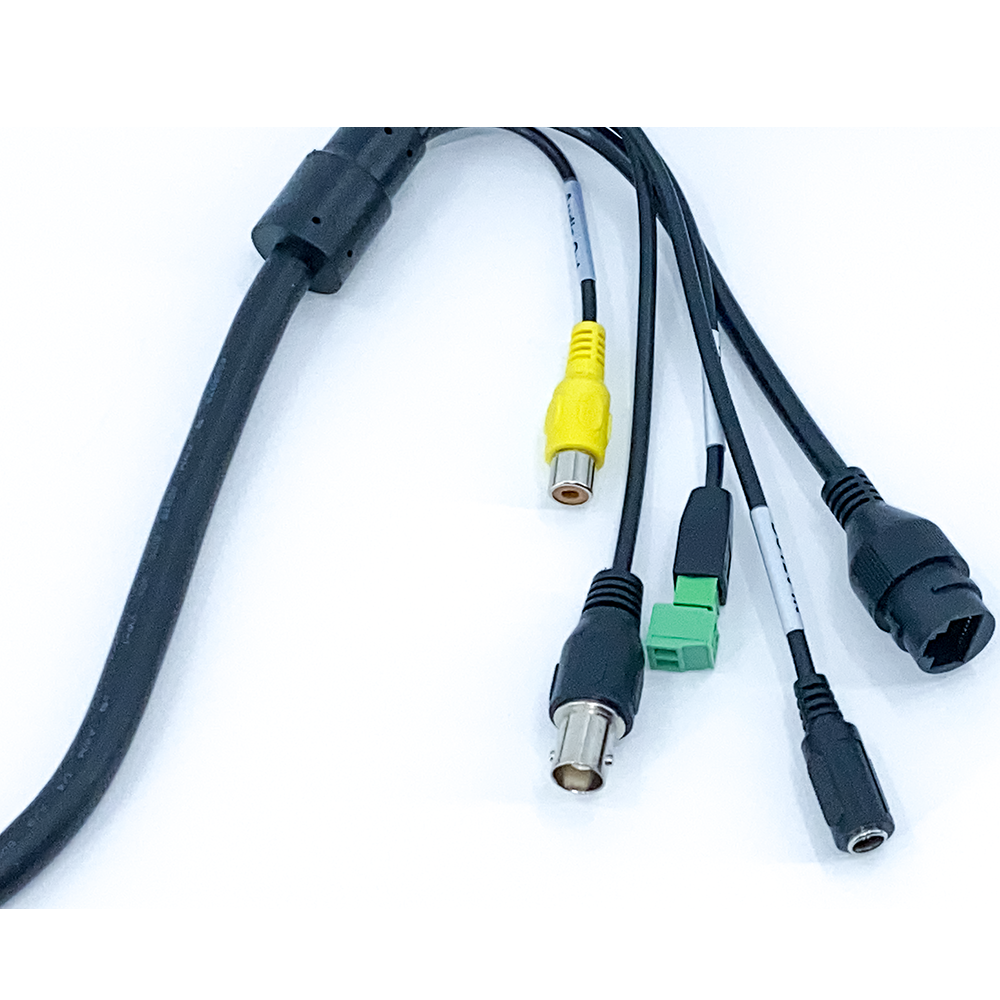

  • Supports Signal, Data, and Communication Interfaces and Connection to External Devices
  • Maximum IR LED Distance 12 m (39.37 ft)
  • IP67 Ingress Protection

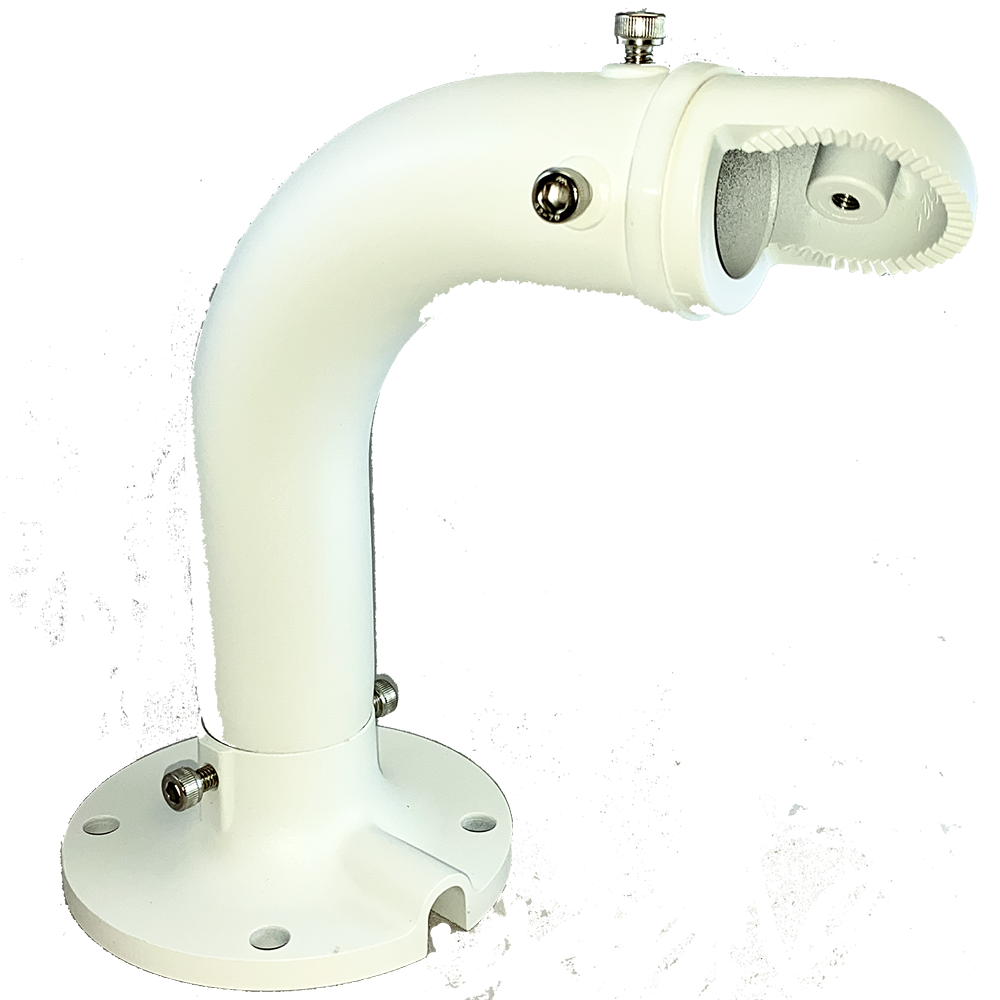

  • Mounting Bracket Included
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
Camera
Image Sensor1/2.8-in. 2 MP CMOS
Effective Pixels1920(H) x 1080(V)
Scanning SystemRolling Shutter
Electronic Shutter SpeedAuto, Manual, 1/50 s to 1/10000 s
IR DistanceDistance up to 12.0 m (39.37 ft)
IR On/Off ControlAuto, On, Off
IR LEDsSix (6), adjustable brightness
Lens
Lens Typeø14
Mount Typeø14
Focal Length3.2 mm to 10.5 mm
Angle of ViewHorizontal: 108.1° to 30.3°
Vertical: 56.3° to 17.1°
Diagonal: 130.9° to 34.8°
Focus ControlMotorized, Automatic
Iris ControlAuto Iris (1.6 to 3.3)
Focus Width Range3.50 m (11. 48 ft), approximately one (1) lane
