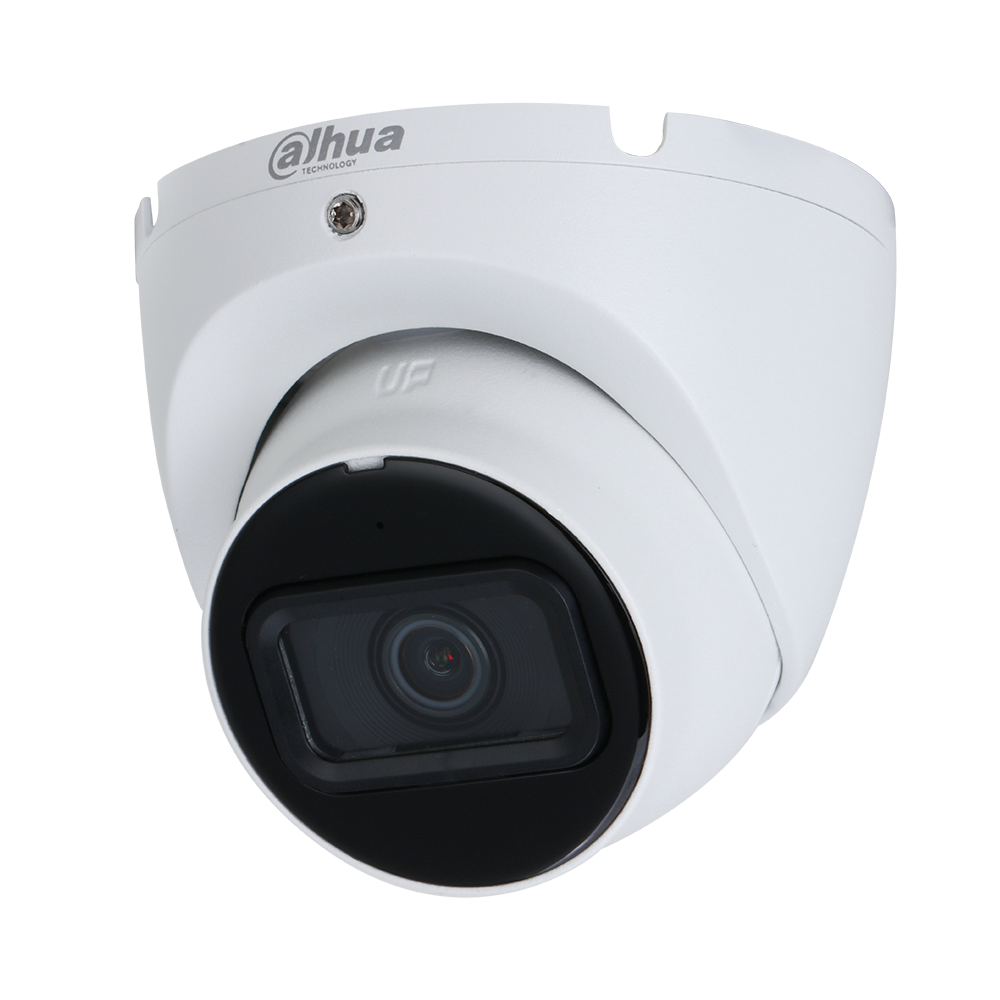

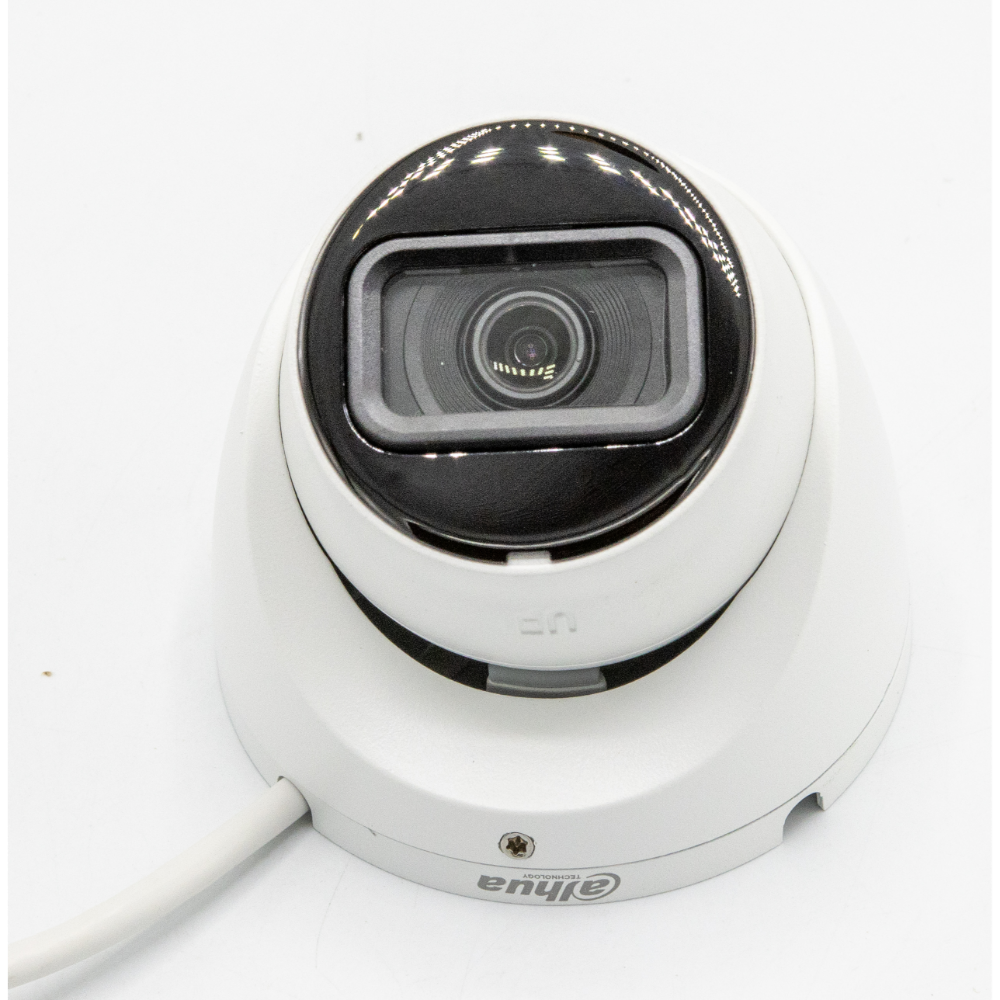

The Dahua 4MP Entry-level Viewing (E-VU) Camera Series offers high-resolution video in a compact and accessible package. The camera features Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera’s elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for various small to mid-size applications at an affordable price.
Features:
- 1/3-in. 4MP Progressive-scan CMOS Sensor
- Dual Stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codecs
- 4MP at 30 fps Maximum Resolution, 2.8 mm Fixed Lens
- DWDR and Day/Night (ICR)
- Maximum IR LED Length 30 m (98.43 ft) with Smart IR
- Motion Detection
- ArcticPro Series Camera – Operational down to –40 °C (–40 °F)
- IP67 Ingress Protection
- Five-year Warranty (when sold by an authorized Dahua seller)
| Technical Specification | |
| Camera | |
| Image Sensor | 1/3-in. 4MP Progressive-scan CMOS |
| Effective Pixels | 2560 (H) × 1440 (V) |
| RAM/ROM | 64 MB / 16 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100000 s |
| Minimum Illumination | Color, 30 IRE: 0.03 lux at F2.0 B/W, 30 IRE: 0.003 lux at F2.0 0 lux (Illuminator On) |
| S/N Ratio | > 56 dB |
| IR Distance | Distance up to 30.0 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | One (1) |
Lens
| Lens Type | Fixed-focal | |||
| Iris Type | Fixed | |||
| Mount Type | M12 | |||
| Focal Length | 2.8 mm | |||
| Maximum Aperture | F2.0 | |||
| Field of View | Horizontal: 90° Vertical: 50° Diagonal: 107° | |||
| Close Focus Distance | 1.0 m (3.28 ft) | |||
| DORI1 Distance | Detect | Observe | Recognize | Identify |
| 68.0 m (223.10 ft) | 27.2 m (89.24 ft) | 13.6 m (44.62 ft) | 6.8 m (22.31 ft) | |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTIP, RTSP, SMTIP, FTIP, DHCP, DNS, DDNS, NTP, Multicast |
| Interoperability | ONVIF (Profile S,T), CGI, P2P, SDK, API |
| Max. User Access | 6 (Total Bandwidth: 48 MB) |
| Edge Storage | FTP |
| Web Viewer | IE, Chrome, Firefox |
| Management Software | SmartPSS Lite, DMSS |
| Mobile Operating System | iOS, Android |
| Cybersecurity | Video Encryption Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, Generating and Importing X.509 Certification, HTTPS, Trusted Boot, Trusted Execution, Trusted Upgrade |
video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, MJPEG | |
| Streaming Capability | Two (2) Streams | |
| Resolution | 4MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate | Main Stream | 2560 × 1440 at 1 to 30 fps |
| Sub Stream | 704 × 480 at 1 to 30 fps | |
| Bit Rate Control | CBR/VBR | |
| Bit Rate | H.264: 32 kpbs to 4096 Kbps H.265: 12 kpbs to 4096 Kbps | |
| Day/Night | Auto (ICR), Color, B/W | |
| Backlight | BLC, HLC, DWDR | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom | |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual | |
| Noise Reduction | 3D DNR | |
| Motion Detection | Off, On (4 Zones, Rectangle) | |
| Region of Interest | Off, On (4 Zones) | |
| Smart IR | Support | |
| Image Rotation | 0°, 180° (0°by defaultr) | |
| Mirror | Off, On | |
| Privacy Masking | Off, On (4 Areas) | |
