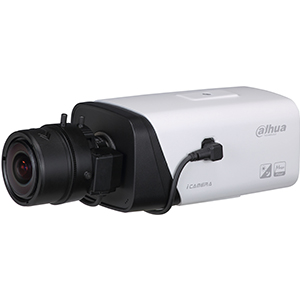

The N45BA5 network camera features Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. The multi-pronged approach works by making reductions of useless or unimportant data wherever possible. As a result, high quality video is maintained without straining the network.
These cameras are embedded with an IR cut filter making them suitable for applications with varying lighting conditions, industry-leading true wide dynamic range (WDR) technology (120dB), providing detailed images in scenes with both bright and dark contrasts, and onboard intelligent video system analytics for a more efficient surveillance system.
Features:
- 1/3-in. 4 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- Starlight Technology for Ultra-low Light Sensitivity
- 4 MP (2688 x 1520) at 30 fps
- Smart Detection Supported
- True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
- Intelligent Video System with Facial Detection
- Alarm and Audio Inputs/Outputs
- Built-in Microphone
- Auto Back Focus (ABF)
- Micro SD Memory, PoE
- Lens sold separately
Camera
| Image Sensor | 1/3-in. 4 MP Progressive-scan CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 512 MB /32 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual: 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0. 01 Lux at F1.2 B/W: 0.001 Lux at F1.2 |
| S/N Ratio | More than 50 dB |
| Lens Mount Type | C/CS |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Streaming Capability | Three (3) Streams |
| Resolution | 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 4 MP at 30 fps |
| Sub Stream 1: D1 at 30 fps | |
| Sub Stream 2: 720p at 30 fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24 Kbps to 10240 Kbps H.265: 14 Kbps to 9984 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, WDR (120 dB) |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zone, Rectangle) |
| Region of Interest | Off, On (4 Zone) |
| Digital Zoom | 16x |
| Flip | 0° / 90° / 180° / 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Area, Rectangle) |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users /20 Users |
| Edge Storage | NAS Local PC for Instant Recording MicroSD Card, maximum 128 GB |
| Web Viewer | IE, Firefox, Safari |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
