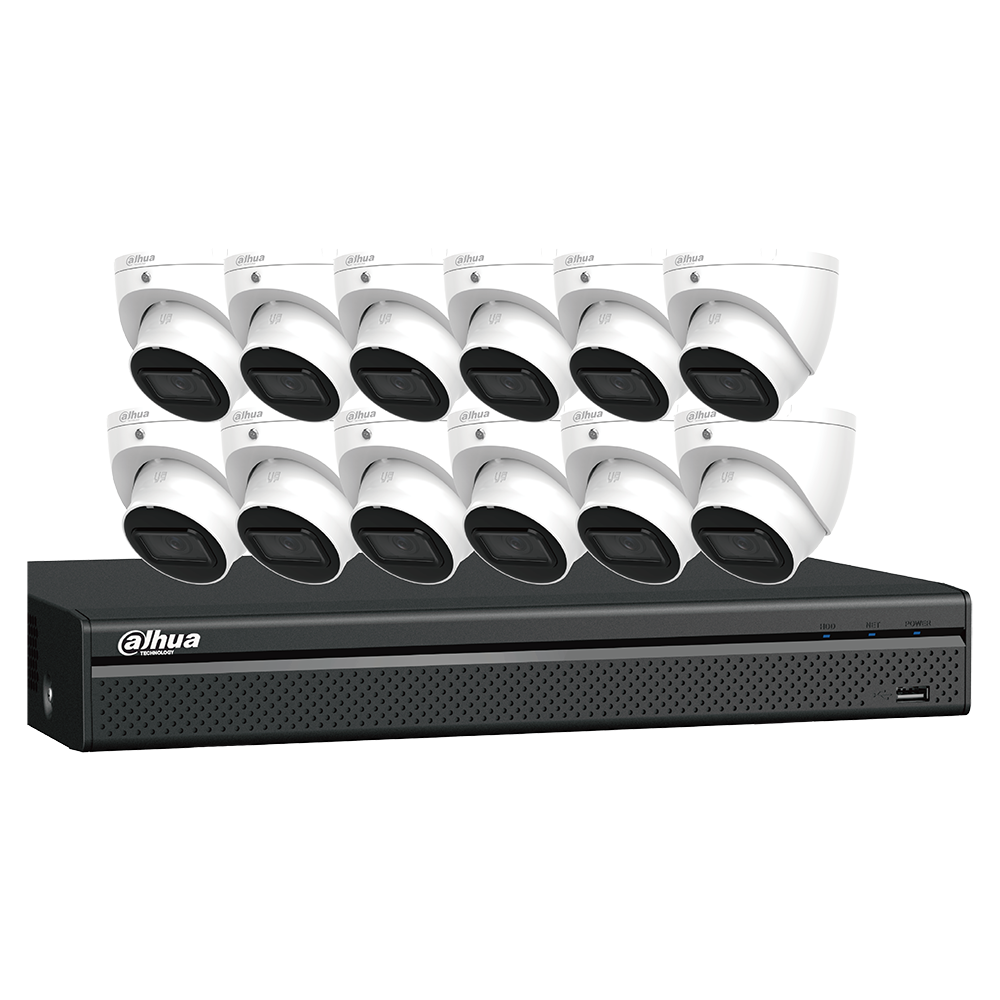

The Dahua Network Security System provides all the components to quickly install, configure, and employ a complete video surveillance solution. The IP cameras offer the clarity of 4MP video, and the NVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The NVR also features Plug and Play technology to connect quickly to cameras on the same network. Each component accepts a PoE power supply to facilitate installation.
Features:
4MP Network Cameras
- 4MP at 30 fps Maximum Resolution,
- Maximum IR LED Length 30 m (98.43 ft) with Smart IR
- 2.8 mm fixed lens
- Motion Detection
- IP67 Ingress Protection
4K Network Video Recorder
- 4 TB Pre-installed Hard Disk Drive
- Supports Remote Configuration and Management of Network Cameras
- Smart H.265+ and Smart H.264+ Dual Codec
- Maximum 160 Mbps Recording Bandwidth
- Up to 8MP Resolution for Preview and Playback
| Technical Specification | |
| N41CJ02 4MP Fixed Eyeball Network Camera | |
| Camera | |
| Image Sensor | 1/3-in. 4MP Progressive-scan CMOS |
| Effective Pixels | 2560 (H) × 1440 (V) |
| RAM/ROM | 64 MB / 16 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100000 s |
| Minimum Illumination | Color, 30 IRE: 0.03 lux at F2.0 B/W, 30 IRE: 0.003 lux at F2.0 0 lux (Illuminator On) |
| S/N Ratio | > 56 dB |
| IR Distance | Distance up to 30.0 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | One (1) |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTIP, RTSP, SMTIP, FTIP, DHCP, DNS, DDNS, NTP, Multicast |
| Interoperability | ONVIF (Profile S,T), CGI, P2P, Milestone, SDK, API |
| Max. User Access | 6 (Total Bandwidth: 48 MB) |
| Edge Storage | FTP |
| Web Viewer | IE, Chrome, Firefox |
| Management Software | SmartPSS Lite, DMSS |
| Mobile Operating System | iOS, Android |
| Cybersecurity | Video Encryption Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, Generating and Importing X.509 Certification, HTTPS, Trusted Boot, Trusted Execution, Trusted Upgrade |
Video
| Ethernet | One (1) RJ-45 Port (10/100/1000 Mbps), Self-adaptive |
| PoE | 16 Ports (IEEE802.3af/at) |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP Camera; DVR; NVS); P2P; Auto-register |
| Maximum User Access | 128 |
| Mobile Operating System | iOS, Android |
| Browser | Chrome; IE 9 or later |
| Interoperability | ONVIF Profiles (S,T,G); CGI; SDK |
