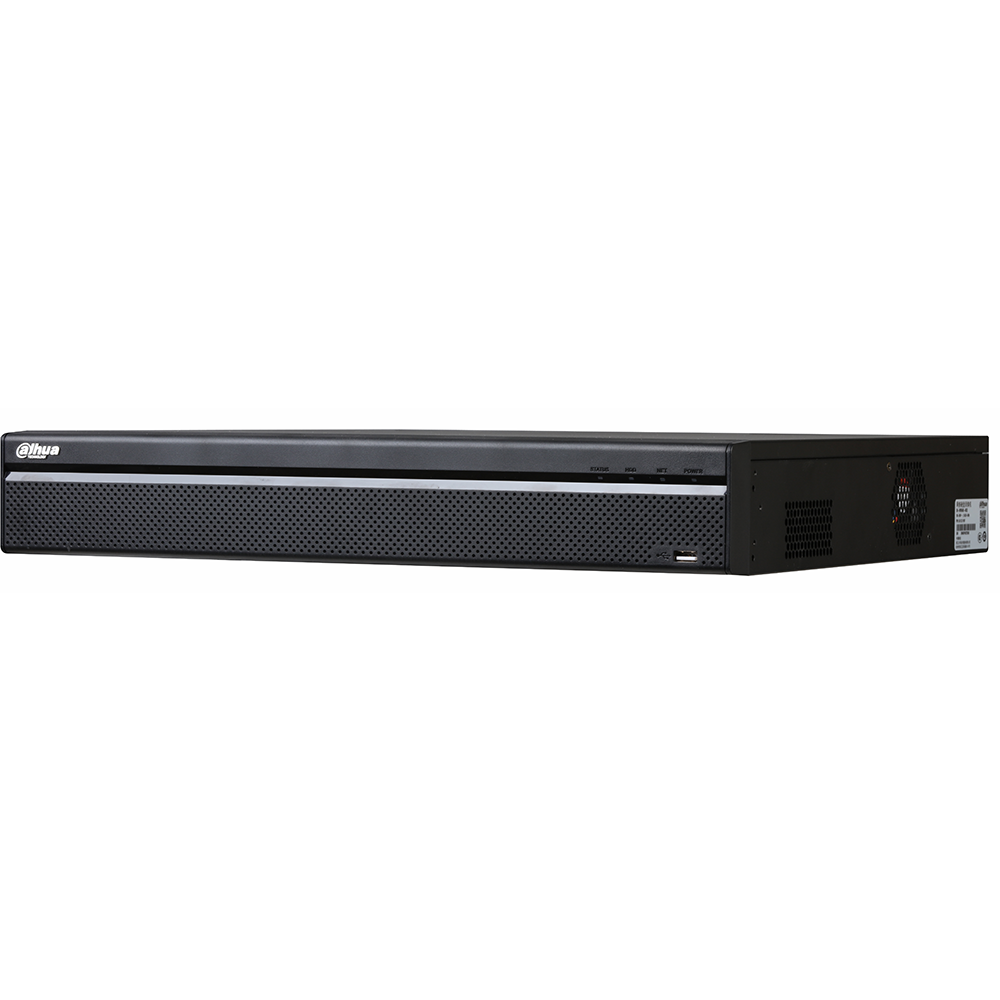

Dahua’s Pro Series network video recorders offer excellent performance and high recording quality for IP video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, center storage, edge storage, and back up storage.
Designed as a cost-effective and easy to install recorder, this NVR is an ideal addition to any security system that monitors public spaces, water conservancy, transportation, city centers, schools, and financial institutions.
The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and it is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.
Features:
- Dual NIC Supports Multi-Address, Fault Tolerance, and Load Balance
- Smart H.265+ and Smart H.264+ Video Compression
- Maximum 320 Mbps Incoming Bandwidth
- Up to 12 MP Resolution for Preview and Playback
- Two (2) Gigabit Ethernet Connections
- Support for IPC and UPnP Protocols
- Customized Live View Layout with Support for Panoramic Displays
- Intelligent Video System with Business Analytics
- Compatible with Dahua Smart Motion Detection+ Cameras
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| System | |
| Main Processor | Embedded Quad-core Processor |
| Operating System | Embedded Linux |
| Audio and Video |
| IP Camera Input | 32 Channels |
| Two-way Talk | Input: One (1) Channel, RCA Output: Two (2) Channels, RCA |
| Display |
| Interface | Two (2) HDMI Ports: • HDMI-1: 4K • HDMI-2: 1080p Two (2) VGA Ports (1080p) |
| Native Output Resolution | HDMI-1 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 VGA-1 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 HDMI-2 / VGA-2 1920 x 1080 |
| Maximum Decoding | Two (2) Channels of 12MP at 20 fps Four (4) Channels of 8MP at 30 fps Five (5) Channels of 6MP at 30 fps Six (6) Channels of 5MP at 30 fps Eight (8) Channels of 4MP at 30 fps Eleven (11) Channels of 3MP at 30 fps Sixteen (16) Channels of 1080p at 60 fps Sixteen (16) Channels of 1080p/720p at 30 fps |
| Fisheye Dewarping | Dewarps a single channel at a time |
| Multi-screen Display | First Screen: 1/4/8/9/16/25/36 Second Screen: 1/4/8/9/16 |
| On-screen Display | Camera Title, Time, Camera Lock, Motion Detection, Recording |
