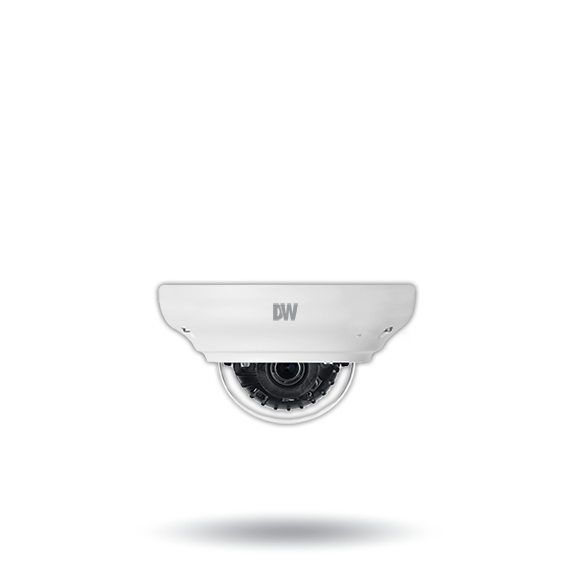

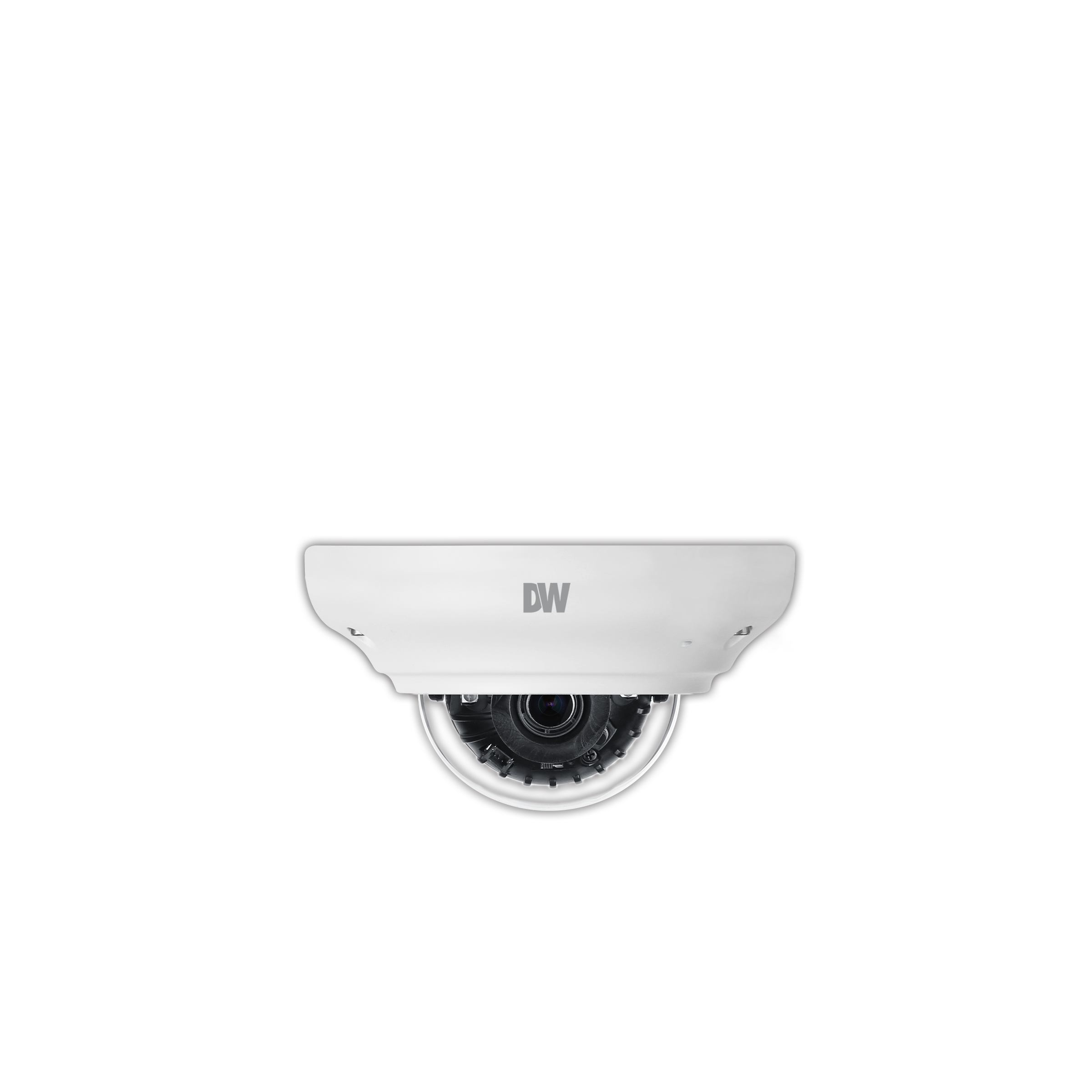

MEGApix Mini Indoor/Outdoor Vandal Dome, 2.1 Megapixel (1920x1080 @ 30fps), 6mm Fixed Lens, 80ft Smart IR, T-WDR, OnVIF Compliant, True D&N, 1/2.8" CMOS Sensor, Triple Codecs(H.265, H.264, MJPEG), PoE + DC12V, 3D-DNR, IP66, IK10, 5 Year Warranty
This MEGApix® IVA™ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 2.1MP/1080p resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes 2.8, 4.0 and 6.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, all in an IP67-rated, IK-10 impact resistant ultra low-profile vandal dome housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- 2.8mm fixed lens (DWC-MV72Wi28TW)
- 4.0mm fixed lens (DWC-MV72Wi4TW)
- 6.0mm fixed lens (DWC-MV72Wi6TW)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 80' Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Audio in
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 2 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
IMAGE |
||
|
Image sensor |
2.1MP/1080p 1/2.8” Star-Light Plus CMOS |
|
|
Total pixels |
1945 (H) × 1109 (V) |
|
|
Minimum scene illumination |
0.5 lux (color) (DW-MV72Wi28TW) |
|
|
0.0 lux (B/W) |
||
|
Test Monitor Video Output |
Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio |
|
LENS |
||
|
Focal length |
2.8mm, F2.0 (DWC-MV72Wi28TW) |
|
|
Lens type |
Fixed lens |
|
|
Field of view (FoV) |
111° (DWC-MV72Wi28TW) |
|
|
IR distance |
80ft range |
|
OPERATIONAL |
||
|
Intelligent Video Analytics |
IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper |
|
|
IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left |
||
|
Shutter mode |
Auto, manual, anti-flicker, slow shutter |
|
|
Shutter speed |
1/30 ~ 1/32,000 |
|
| Slow shutter | 1/2,1/3,1/5,1/6,1/7.5, 1/10 | |
|
Auto gain control |
Auto |
|
|
Day / night |
Auto, day (color), night (B/W) |
|
|
Smart DNR™ 3D digital noise reduction |
3D DNR |
|
|
Wide dynamic range (WDR) |
True WDR (D-WDR) On, Off |
|
| Wide dynamic range (WDR) dB | 120dB | |
| Privacy zones | 16 programmable privacy masks | |
| Mirror and flip | Yes | |
|
Alarm notifications |
Notifications via e-mail, FTP, alarm output and SD card recording |
|
|
Memory slot |
Micro SD / SDHC / SDXC (card not included) |
|
NETWORK |
||
|
LAN |
RJ45 (10/100Base-T) |
|
|
Video compression type |
H.265, H.264, MJPEG |
|
|
Resolution |
H.265: 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF |
|
|
Frame rate |
Up to 30fps at all resolutions |
|
|
Video bitrate |
100Kbps ~ 10Mbps, multi-rate for preview and recording |
|
|
Bitrate control |
Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
|
|
Streaming capability |
Dual-stream at different rates and resolutions |
|
|
IP |
IPv4, IPv6 |
|
|
Protocol |
TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF |
|
|
Security |
HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) |
|
|
ONVIF conformance |
Yes |
|
|
Web viewer |
OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
|
|
Video management software |
DW Spectrum® IPVMS |
|
ENVIRONMENTAL |
||
|
Operating temperature |
-4°F ~ 122°F (-20°C ~ 50°C) |
|
|
Operating humidity |
10–90% RH (non–condensing) |
|
| IK rating | IK10 impact-resistant | |
|
IP rating |
IP67-rated |
|
|
Other certifications |
CE, FCC, RoHS |
|
ELECTRICAL |
||
|
Power requirement |
DC12V, POE IEEE 802.3af class 2 (adaptor not Included) |
|
|
Power consumption |
DC12V: max 3.7W PoE: max 5.5W |
|
MECHANICAL |
||
|
Material |
Aluminum vandal housing, polycarbonate dome |
|
|
Dimensions |
4.13" x 2.4" (105 x 61mm) |
|
|
Weight |
0.79 lbs (0.36kg) |
|
| Warranty | 5 year warranty | |
