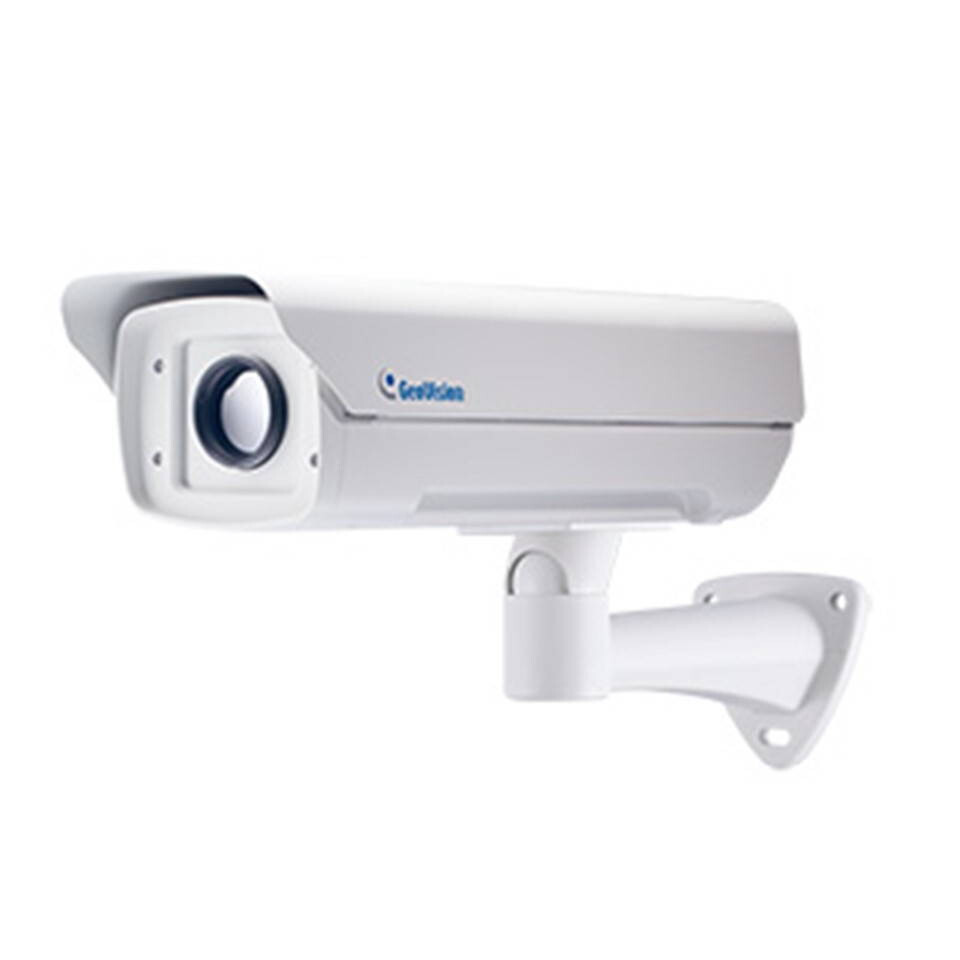

GeoVision - 84-TM01000-0010 - 2x, Thermal IP Camera, H.264
• CIF Uncooled FPA microbolometer, 25 µm pixel size
• Thermal sensitivity: ≤100 mK at f/1,300K
• Spectral range: 8 ~ 14 um
• Single stream from H.264 or MJPEG
• Up to 25 fps at 352 x 288
• 2x digital zoom
• Up to 1450 m (4757 ft) detection range for human targets and 1850 m (6070 ft) for vehicles
• Up to 480 m (1575 ft) recognition range for human targets and 920 m (3018 ft) for vehicles
• Ingress protection (IP66)
• DC 12V / PoE (IEEE 802.3af)
• Motion detection
• Privacy mask
• Text overlay
• IP address filtering
• CE, FCC, RCM, RoHS compliant
• Support for iPhone, iPad, Android and 3GPP
• 28 languages on Web interface
| Camera | |
|---|---|
| Image Sensor | Uncooled FPA micro bolometer |
| Picture Elements | 352 (H) x 288 (V) |
| Pixel Size | 25 um |
| Thermal Sensitivity | ≤100 mK at f/1,300K |
| Spectral Range | 8 ~ 14 um |
| Gain Control | Auto, Manual |
| Optics Lens | |
| Focal Length | 40 mm |
| Horizontal FOV | 13.7° |
| Focus | Auto / Manual |
| Zoom | 2x (Digital) |
| Iris | N/A |
| Operation | |
| Video Compression | H.264, MJPEG |
| Video Stream | Single stream from H.264 or MJPEG |
| Frame Rate | 25 fps at 352 x 288 (60/50 Hz) * The frame rate and performance may vary depending on the number of connections and data bit‐rates (different scenes). |
| Image Setting | Brightness, Contrast |
| Noise Reduction | Yes |
| Audio Support | No |
| Sensor Input | No |
| Alarm Output | No |
| Video Resolution | |
| Main Stream | 5:4 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | DHCP, DynDNS, HTTP, HTTPS, NTP, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA |
| Observation Range | |
| Detection (2 pixels on target) | Human (1.8 x 0.5 m): 1450 m (4757 ft) Car (2.3 x 2.3 m): 1850 m (6070 ft) |
| Recognition (4 pixels on target) | Human (1.8 x 0.5 m): 480 m (1575 ft) |
| Recognition (6 pixels on target) | Car (2.3 x 2.3 m): 920 m (3018 ft) |
| Mechanical | |
| Power | 2‐pin terminal block, PoE |
| Connectors Ethernet | Ethernet (10/100 Base‐T), RJ‐45 cable |
| General | |
| Environment Temperature | 0°C ~ 40 °C (32 °F ~ 104 °F) |
| Humidity | 20% to 90% (no condensation) |
| Power Source | 12V DC / PoE (IEEE 802.3af) |
| Max. Power Consumption | 10 W |

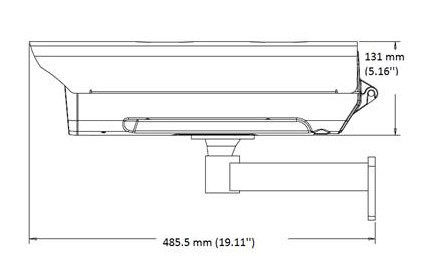

| Dimensions | 485.5 x 249.48 x 156.99 mm (19.11" x 9.82" x 6.18") |
| Weight (with rack) | 2.75 kg (6.06 lb) |
| Ingress Protection | IP66 |
| Regulatory | CE, FCC, RCM, RoHS compliant |
| Power over Ethernet | |
| PoE Standard | PoE (IEEE 802.3af Power over Ethernet / PD) |
| PoE Power Supply Type | End‐span |
| PoE Power Output | Per Port 48V DC, 350 mA, Max. 15.4 watts |
| Web Interface | |
| Installation Management | Web‐based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Camera Live View, Video Recording, Bandwidth Control, Image Snapshot, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay, Digital PTZ |
| Language | Bulgarian / Czech / Danish / Dutch / English / French / German / Greek / Hebrew / Hungarian / Italian / Indonesian / Japanese / Norwegian / Lithuanian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Thai / Traditional Chinese / Turkish |
| Application | |
| Network Storage | GV‐VMS and GV‐Recording Server |
| Smart Device Access | GV‐Eye for iOS and Android |
| Live Viewing | Browser (IE, Firefox, Safari) and Mobile app |
The GeoVision 84-TM01000-0010 is a specialized thermal IP camera featuring an uncooled FPA micro bolometer sensor delivering 352x288 resolution with 25μm pixel size and ≤100mK thermal sensitivity in the 8-14μm spectral range. Equipped with a 40mm fixed focus lens providing a 13.7° horizontal FOV, it enables long-range detection capabilities - detecting human targets up to 1450m and vehicles up to 1850m, with recognition ranges of 480m for humans and 920m for vehicles. The camera features 2x digital zoom and operates at 25fps with H.264/MJPEG compression. Housed in an IP66-rated enclosure, it operates in temperatures from 0°C to 40°C and supports both 12V DC and PoE power. It includes comprehensive web-based configuration with digital PTZ, privacy masking, and tampering alarm. Fully ONVIF compliant, it integrates seamlessly with GV-VMS and GV-Recording Server for professional thermal surveillance applications requiring long-range detection in total darkness or challenging environmental conditions.
