Geovision - GV-UNFE2503 - 2MP H.264 Super Low Lux WDR IR Fisheye Camera
Part number:
120-UNFE2503-000
Price:

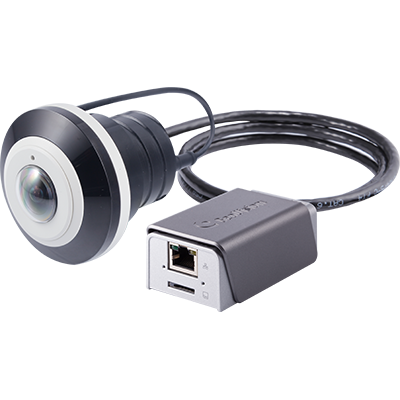

GV-UNFE2503 is an outdoor fisheye camera that can monitor a location from all angles. The camera has an IR LED ring that provides infrared illumination in low-light conditions. It is made up of a main body for video processing and a camera lens for image capture. The tiny camera lens is ideal for installation in outdoor surveillance sites with limited space.
Features

  • 1/2.8" progressive scan super low lux CMOS
  • Min. illumination at 0.02 lux
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1920 × 1080
  • Megapixel lens
  • Day and Night function (with removable IR-cut filter)
  • Intelligent IR
  • PoE (IEEE 802.3af)
  • Ingress protection (IP67)
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • One-way audio
  • No mechanical moving parts
  • 360° and 180° panorama views
  • Different angle of view accessible by multiple users at the same time
  • Playback from any view angle and zoom level
  • Digital Object Tracking
  • Virtual PTZ function
  • Auto Pan function
  • 3D noise reduction
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • Text overlay
  • Support for iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
Camera
Image Sensor 1/2.8" progressive scan super low lux CMOS
Picture Elements 1920 (H) x 1080 (V)
Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 52 dB
WDR Yes
Lens
Megapixel Yes
Day/Night Yes (with removable IR‐cut filter)
Iris Fixed
Focal Length 1.19 mm
Maximum Aperture F/2.0
Mount M12
Image Format 1/2.3"
Horizontal FOV 180°
IR LED Quantity 8 IR LEDs
Max. IR Distance 10 m (35 ft)
Network
Interface 10/100M Ethernet
Ethernet Protocol DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, NTP, ONVIF (Profile S), QoS (DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA
