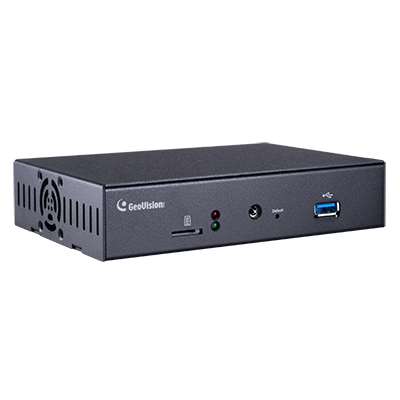

GeoVision - 89-IPDBXOP-K010 - GV-IP DecoderBox Optimal Black V1.00
• H.264 / H.265 video stream decoding at up to 30 fps
• Video decoding support for resolutions up to 8 MP
• Decoding of up to 64 IP streams for looped live view
• Auto-search for ONVIF IP devices
• Single, 4-divsion, 6-division, 8-division, and 9-division view
• Matrix view display through GV-Mobile Server
• 10/100 Ethernet over LAN
• DC 12V / PoE (IEEE 802.3af)
• HDMI video output resolutions up to 4K
• User interface control using GV-IR Remote Control
• PTZ or Speed Dome camera control using GV-Joystick
• Remote firmware upgrade, IP address configuration, and addition of a new channel
• Micro SD card and USB drive support for snapshot storage and firmware upgrade
• Remote camera and layout assignment from GV-Control Center, GV-Edge Recording Manager, or GV-VMS
• 10 languages supported
| Video | |
|---|---|
| Video Codec | H.264, H.265 |
| Audio Codec | G.711 |
| Maximum Resolution | 1-ch Division: 3840 x 2160: up to 30 fps, 30 fps in total (1 CH max.) |
| 4-ch Division (Quad View): Grid 1: 2560 x 1920; Other 3 grids: 1920 x 1080 Up to 30 fps, 120 fps in total (4 CH max.) | |
| 6-ch Division: 1280 x 720: up to 30 fps, 180 fps in total (6 CH max.) | |
| 8-ch Division: 1280 x 720: up to 30 fps, 240 fps in total (8 CH max.) | |
| 9-ch Division: 1280 x 720: up to 30 fps, 270 fps in total (9 CH max.) | |
| Video Output at 60 Hz | HDMI 720p / 1080p / 4K |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | ONVIF, RTSP, TCP |
| Mechanical | |
| Connectors | Power Adapter: 12V DC Jack |
| Ethernet: RJ-45 | |
| Monitor Output: HDMI | |
| Memory Card: Micro SD/SDHC card slot (for Class 4 or above, FAT32 and NTFS formats) | |
| USB: USB 3.0 slot (3.0 backward compatible, FAT32 and NTFS formats), USB 2.0 slot x 2 (2.0 backward compatible, FAT32 format) | |
| General | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 20% ~ 80% (with no condensation) |
| Weather Resistance | Indoor use only |
| Dimensions (W x H x D) | 152 x 34 x 102 mm (6" x 1.35" x 4.04") |
| Net Weight | 500 g (1.10 lb) |
| Power | DC 12V / PoE (IEEE 802.3af) |
| Power Consumption | 36 W (max. 3 A at 12V DC) |
| Regulatory | CE, FCC, LVD, RCM compliant |
| Language | English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Applications | |
| Software Supported | GV-Control Center (V3.8.0 / V4.2.0 or later), GV-Edge Recording Manager (Windows Version, V2.2.8 or later), GV-VMS (V17.4.0 / V18.1.0 / V20.0 or later) |

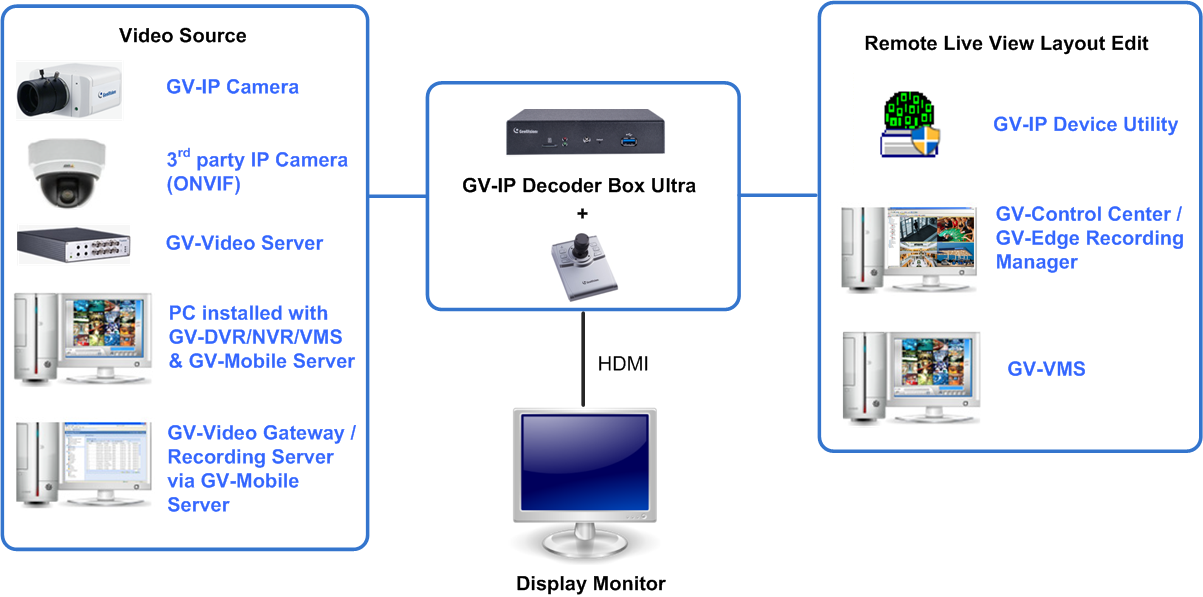

The GV-IP Decoder Box Ultra can decode and display up to 64 IP video streams in single, 4-, 6-, 8- and 9-division views. It supports third-party IP cameras via RTSP or ONVIF, and can automatically detect ONVIF-compliant cameras on the same local area network (LAN). Offering a cost-effective alternative to traditional DVRs and PC-based video surveillance systems, it enables administrators to monitor channels, capture critical event snapshots, and pause channels as required. The GV-Joystick V2 can also be connected to control PTZ or Speed Dome cameras.
