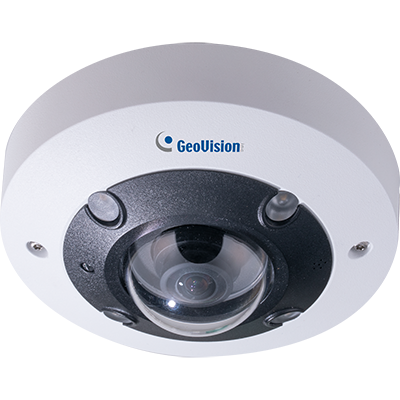

GV-QFER12700 is a 12 MP outdoor fisheye camera that can be installed on the ceiling or the wall to monitor all angles of a location. GV-QFER12700 supports H.265 video codec, which allows for better compression ratio while maintaining high video quality at reduced network bandwidths. Thanks to its automatic IR‐cut filter and IR LEDs, GV-QFER12700 is capable of day and night surveillance. In addition, the embedded edge dewarping engine enables the camera to dewarp images without using backend device resources.
Features:
Note:
| Camera | ||
| Image Sensor | 1/1.7” progressive scan CMOS | |
| Picture Elements | 4000 (H) x 3000 (V) | |
| Minimum Illumination | Color | 0.1 Lux |
| B/W | 0.01 Lux | |
| IR On | 0 Lux | |
| Shutter Speed | (1 ~ 1/10000 sec) | |
| White Balance | Auto / Manual | |
| S/N Ratio | 52dB | |
| WDR | Yes | |
| Dynamic Range | 77dB | |
| Optics Lens | ||
| Megapixel | Yes | |
| Day/Night | Yes (with removable IR‐cut filter) | |
| Lens Type | Fixed | |
| Focal Length | 1.65 mm | |
| Maximum Aperture | F/2.8 | |
| Image Format | 1/1.7” | |
| Horizontal FOV | 180° | |
| Operation | Focus | Fixed |
| Zoom | Fixed | |
| Iris | Fixed | |
| IR LED Quantity | 4 IR LEDs | |
| Max. IR Distance | 10 m (35 ft) | |
| Operation | ||
| Video Compression | H.265, H.264, MJPEG | |
| Video Streaming | Quad streams from H.265, H.264 or MJPEG | |
| Frame Rate | 20 fps at 4000 x 3000 (50/60 Hz) *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). |
|
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Hue, White Balance, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Denoise | |
| Audio Compression | G.711 | |
| Audio Support | Two‐way Audio (external microphone and speaker required) | |
| Sensor Input | 1 input | |
| Sensor Output | 1 output | |
