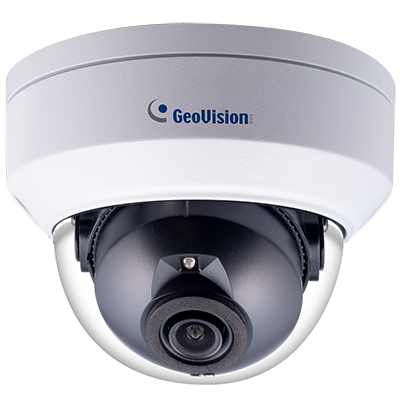

GeoVision - GV-TDR2704-2F - 2MP H.265 Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
Part number:
GV-TDR2704-2F
Price:

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards, and can be powered through PoE.



Features:

  • 1/2.7" progressive scan low lux CMOS sensor
  • Min. illumination at 0.01 lux
  • Dual streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 1920 × 1080
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) for local storage
  • 3-axis mechanism (pan / tilt / rotate)
  • Day and Night function (with removable IR-cut filter)
  • Ingress protection (IP67)
  • Vandal resistance (IK10)
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant



Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
Camera
Image Sensor 1/2.7" progressive scan low lux CMOS
Picture Elements 1920 (H) x 1080 (V)
Minimum Illumination Color 0.01 Lux (F2.0, AGC ON)
IR ON 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100,000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range Up to 120 dB
Lens GV-TDR2704-2F GV-TDR2704-4F
Megapixel Yes
Day / Night Yes (with removable IR-cut filter)
Lens Type Fixed
Focal Length 2.8 mm 4 mm
Maximum Aperture F/2.0
Mount M12
Horizontal FOV 113°
Operation Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 1 IR LED
Max. IR Distance 30 m (100 ft)
