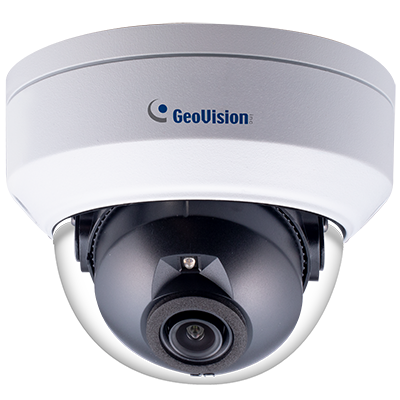

GeoVision - GV-TDR4703-2F - 2.8mm, 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
Part number:
GV-TDR4703-2F
Price:

GV-TDR4703 is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.



Features:

  • 1/3" progressive scan super low lux CMOS
  • Min. illumination at 0.01 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2688 x 1520
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Ingress protection (IP67)
  • Vandal resistance (IK10 for metal casing)
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • Two-way audio
  • One sensor input and one alarm output
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • ONVIF (Profile G, S, T) conformant



Note:

  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
Camera
Image Sensor 1/3" progressive scan super low lux CMOS
Picture Elements 2688 (H) x 1520 (V)
Minimum Illumination Color 0.01 Lux (F2.0, AGC ON)
IR ON 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 56 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens GV-TDR4703-2F GV-TDR4703-4F
Megapixel Yes
Day / Night Yes (with removable IR-cut filter)
Lens Type Fixed
Focal Length 2.8 mm 4 mm
Maximum Aperture F/2.0
Mount M12
Horizontal FOV 95°
Operation Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 1 IR LED
Max. IR Distance 30 m (100 ft)
