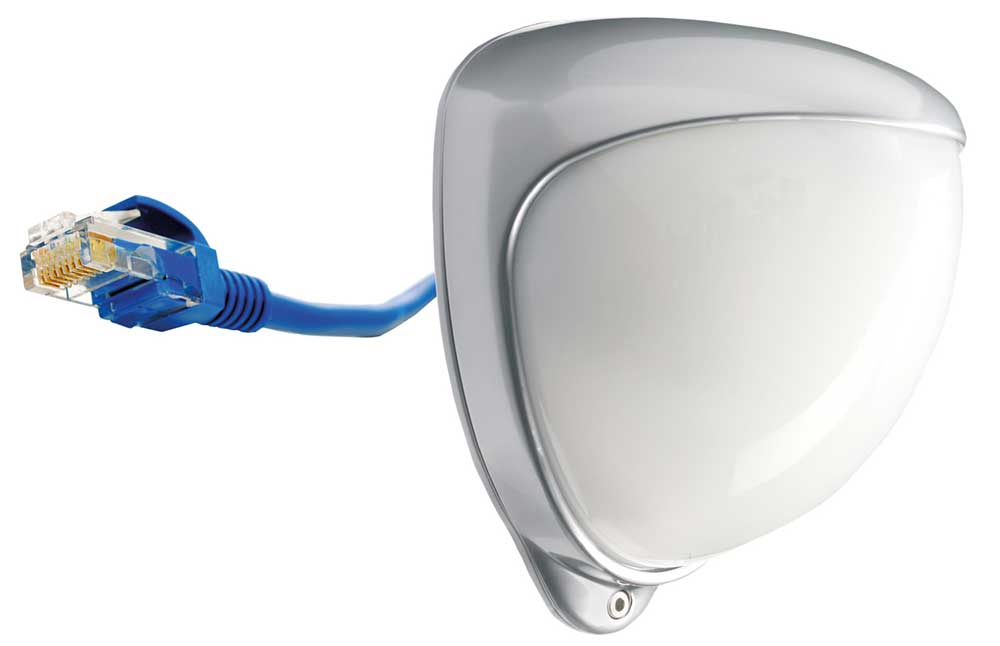

GJD - GJD261 - D-TECT 3 IP Enabled Dual-Tech M/Wave + Quad PIR 30m (98ft) Volumetric Motion Detector - Silver Housing
Part number:
GJD261
Price:
Description

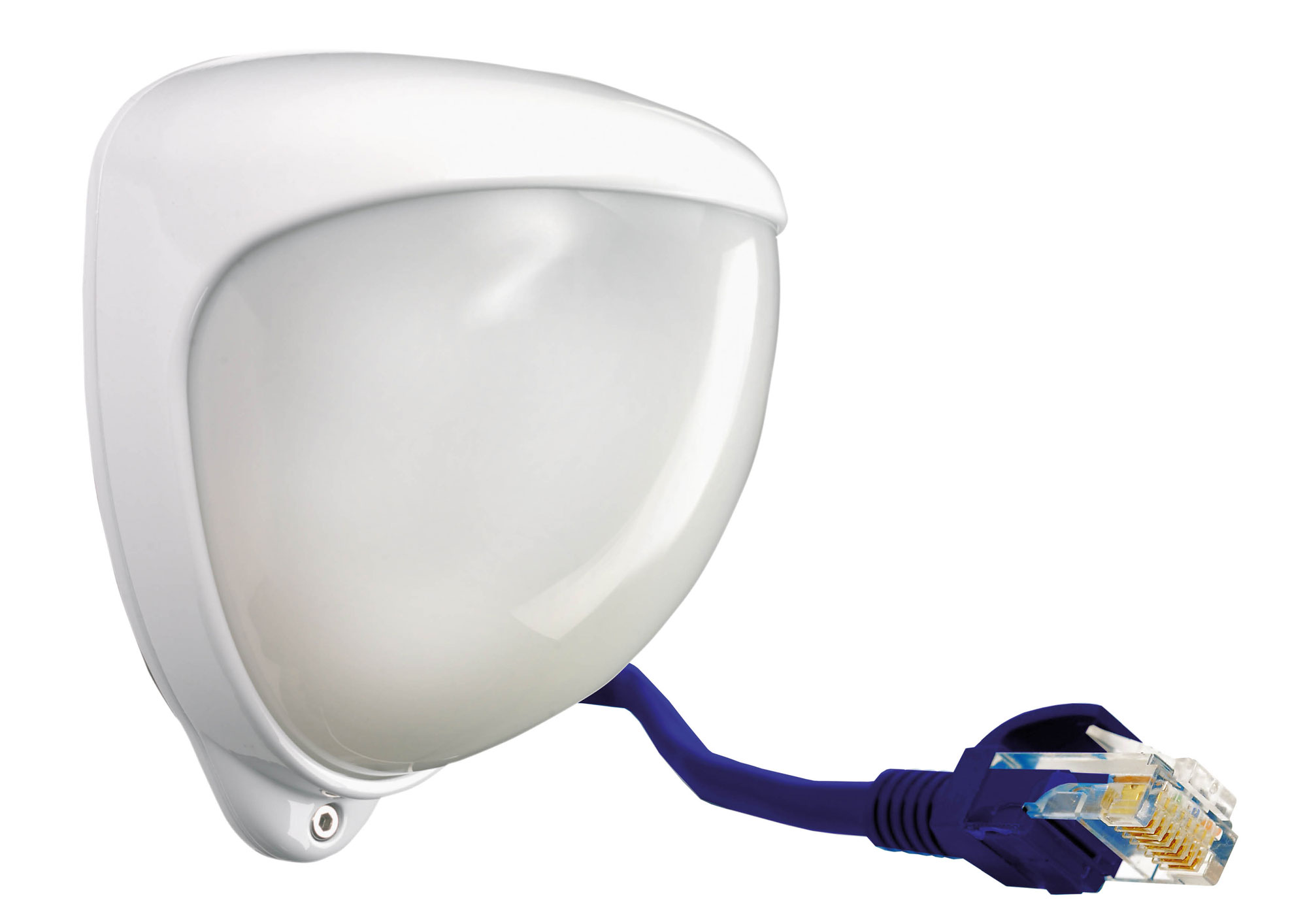

The D-TECT 3 IP is an internet protocol connected dual tech detector that combines advanced signal processing and unique optical systems. The detection beam range can be programmed up to 30 metres, avoiding boundary overspill and making it particularly effective for perimeter detection.



Using Power over Ethernet and IP communication, the D-TECT 3 IP supports direct integration with all the major* VMS and camera systems on the market, while keeping the installation just as easy as setting up an IP camera.



Features:

  • Trigger lights and other smart devices when movement is detected.
  • Send users an intruder notification.
  • Control CCTV, providing alarms and camera movement.
  • Setup Lux level events to operate blinds and curtains.
  • Environmental temperature monitoring to help manage internal air conditioning and heating.
Specification
DETECTION RANGEUp to 30m (98.5ft) programmable
COVERAGE10º - 70º detection angle, 30m x 30m (98.5ft x 98.5ft) max
WALK TESTOutput test mode with LED indication
OPERATING TEMPERATURE-20ºC to +55ºC (-4ºF to 131ºF). Conformally coated electronics for increased stability
ADJUSTMENT180º pan + 90º tilt
MOUNTING HEIGHTOptimum 3m (9.8ft)
INDICATOR LEDs

1 x Blue LED on alarm

1 x Red PIR detection

1 x Green microwave detection

OUTPUTSTwo N/C volt free relay contacts. Web interface set up required
POWER INPUTPower over Ethernet (48VDC)
POWER CONSUMPTIONMax 3.8W, PoE class 1
ETHERNET STANDARDEthernet IEEE 802.3af, TCP/IP

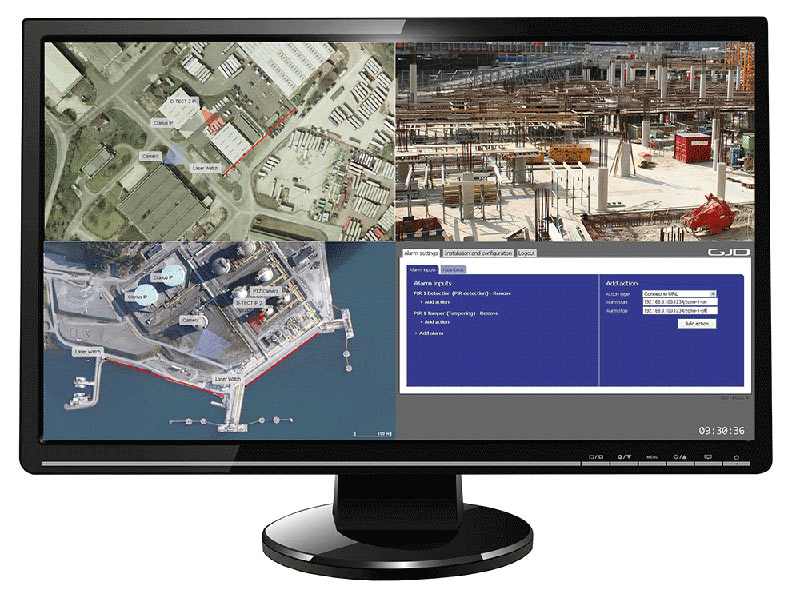

REMOTE ACCESSWeb browser user interface. No software or installation needed
MICROWAVE FREQUENCY10.525GHz
UL Approval
Name
Description
Size
Downloads
File
D-TECT 3 IP Datasheet
0.8mb
File
D-TECT 3 IP Manual
1.4mb
File
D-TECT 3 IP Network Integration Manual
0.2mb
File
D-TECT IP Integration with Milestone
2.8mb
File
D-TECT IP Integration with Hikvision iSeries K2
0.6mb
File
Milestone D-TECT Driver Setup
0.3mb
File
Milestone GJD Integration Examples & Walkthrough
2.8mb
File
Hanwha -PoE Extender Camera Solution
1.5mb
File
Wave Integration
3.6mb
