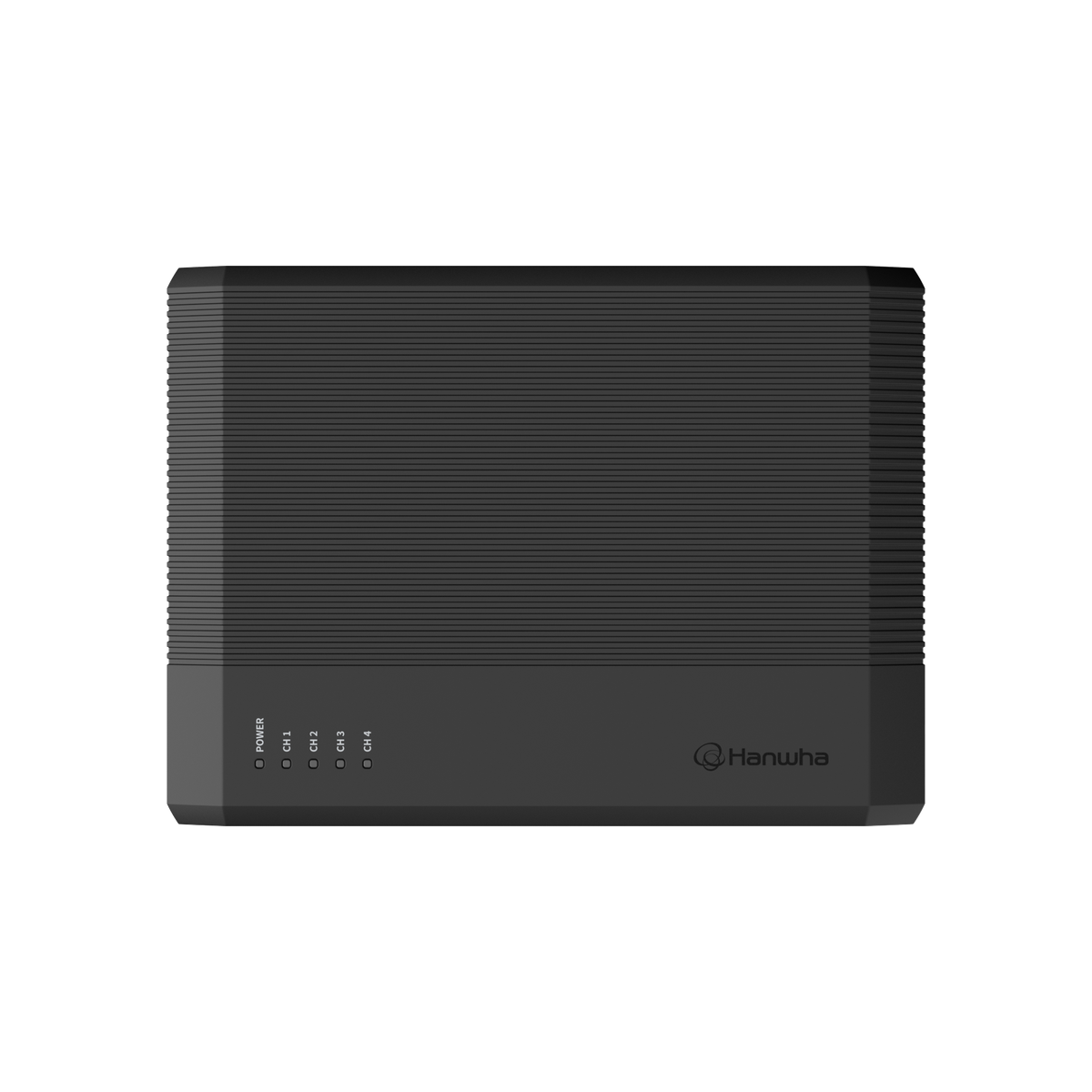

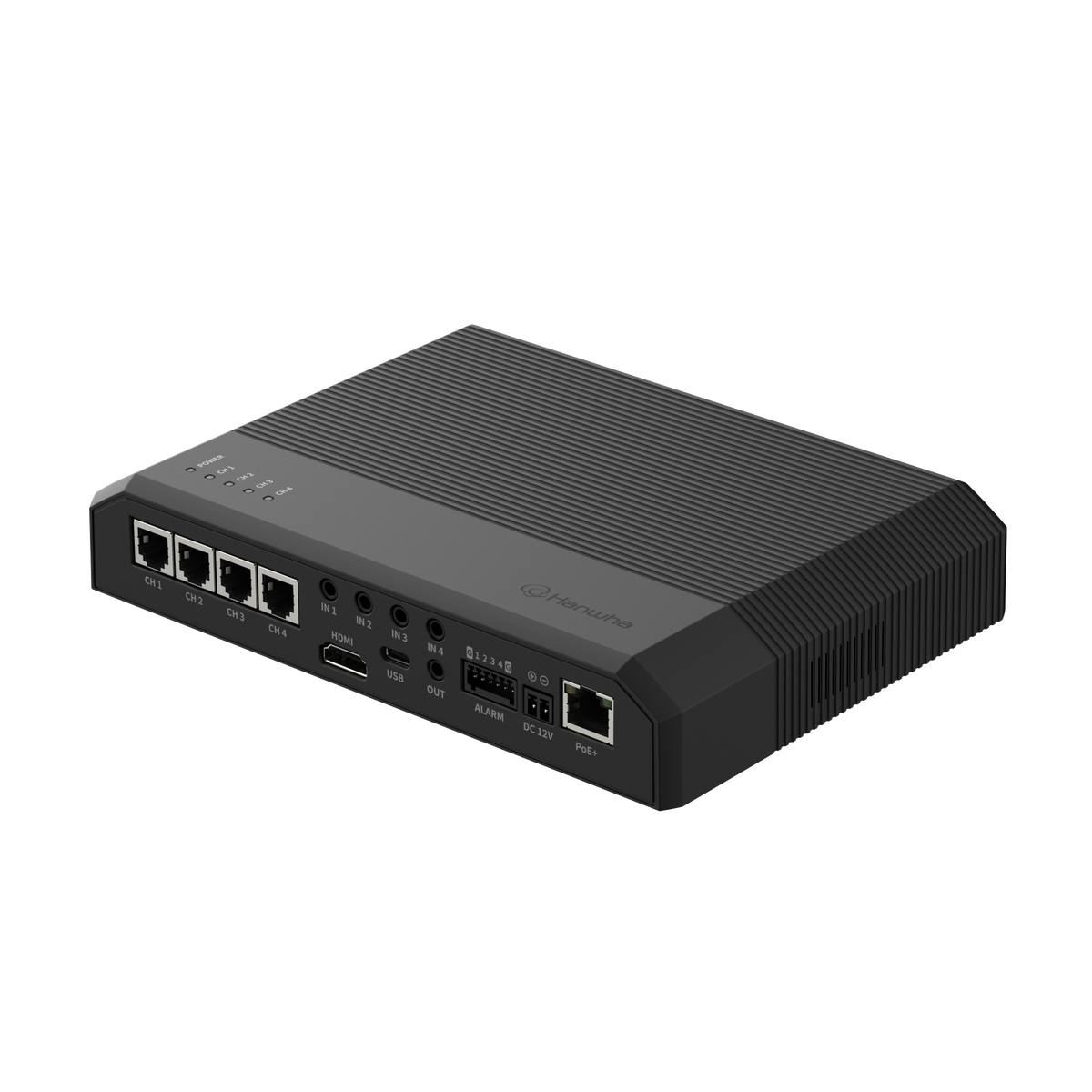

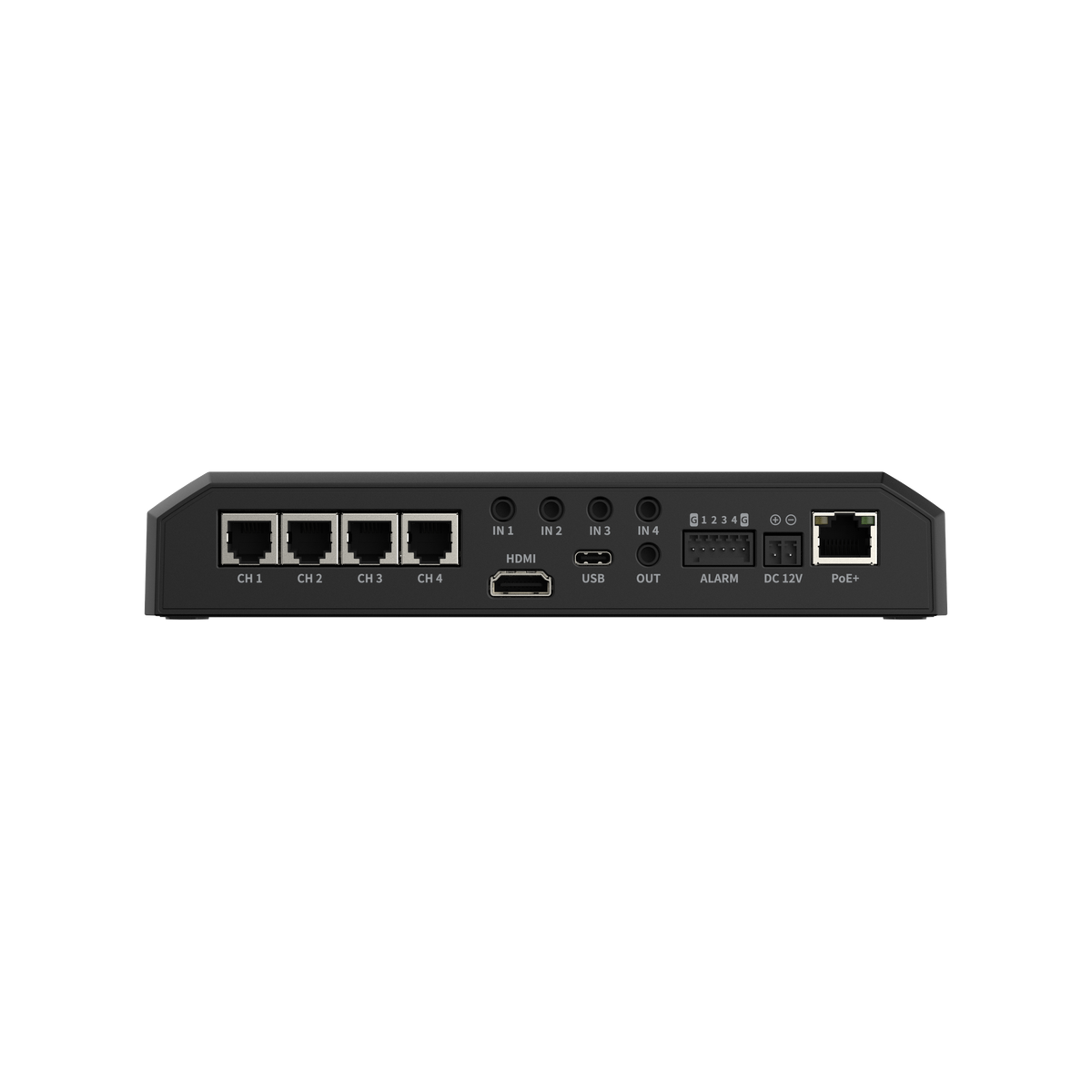

Hanwha - PNM-C20000QB - Wisenet P series network remote head camera 4CH x 2MP @ 30FPS or 4CH x 5MP @ 15FPS, Triple codec H.265/H.264/MJPEG, 120dB WDR, Analytics events based on AI engine: Classified object type: Person/Face/Vehicle/License plate, Att
Part number:
Price:
• Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Shock detection
• Business intelligence based on an AI engine: People/Vehicle counting
• Support 4 audio input / 1 audio output
• Support HDMI connector
• Unicast (20 users) / Multicast Multiple streaming (Up to 4 profiles per channel)
• WiseStream (Based on AI engine)
• Secure element (FIPS 140-3 level3, CC EAL6+)
| Video | |
|---|---|
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate MJPEG | 30fps |
| Video Out | USB: Micro USB Type C, HDMI(Single/Quad view) |
| Lens | |
| Optional Lens | SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA, SLA-T4680DA, SLA-T4680DSA, SLA-T2480WDA, SLA-T2480WA, SLA-T2880BA, SLA-F1080FA, SLA-F2480A, SLA-F2480VA, SLA-F4780A, SLA-F4780VA |
| Operational | |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection Quantity | 8ea |
| Motion Detection Shape | 8point Polygonal zones |
| Privacy Masking Quantity | 16ea |
| Privacy Masking Shape | 4point Quadrangle zones |
| Color / Option | Gray, Green, Red, Blue, Black, White |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support |
| Electronic Shutter Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter Speed Range | 2~1/12,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) - Each channel separately |
| Alarm Interface In/Out | 4 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | 4 x Selectable(mic in/line in) |
| Audio Out | Line out |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes Person | Upper/Lower clothes color |
| Attributes Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color |
| Thumbnail | BestShot |
| Analytics Events Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Analytics Events Normal | Defocus detection, Motion detection, Tampering, Audio detection, Shock detection |
| Business Intelligence Based on AI Engine | People counting, Vehicle counting |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps) |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming Unicast | Up to 20 users |
| Streaming Multicast | Support |
| Multiple Streaming | Up to 4 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS) |
| Application Programming Interface ONVIF | S, G, T, M |
| Application Programming Interface Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Optional (needs gateway) |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
| General | |
| Memory RAM | 8GB |
| Memory Flash | 8GB |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 2slot(Total 2TB) |
| Environmental & Electrical | |
| Operating Condition Temperature | -10°C~+45°C(+14°F~+113°F) |
| Operating Condition Humidity | 0~95% RH(non-condensing) |
| Storage Condition Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption PoE | Max. 25.5W, typical 23.8W |
| Power Consumption 12VDC | Max. 23.1W, typical 21.5W |
| Mechanical | |
| Color | Black |
| Material | Plastic |
| Material Management Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9005 |
| Product Dimensions | 200(W)x37(H)x146(D)mm(7.87x1.46x5.75") |
| Product Weight | 1,015g(2.24lb) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000 |
