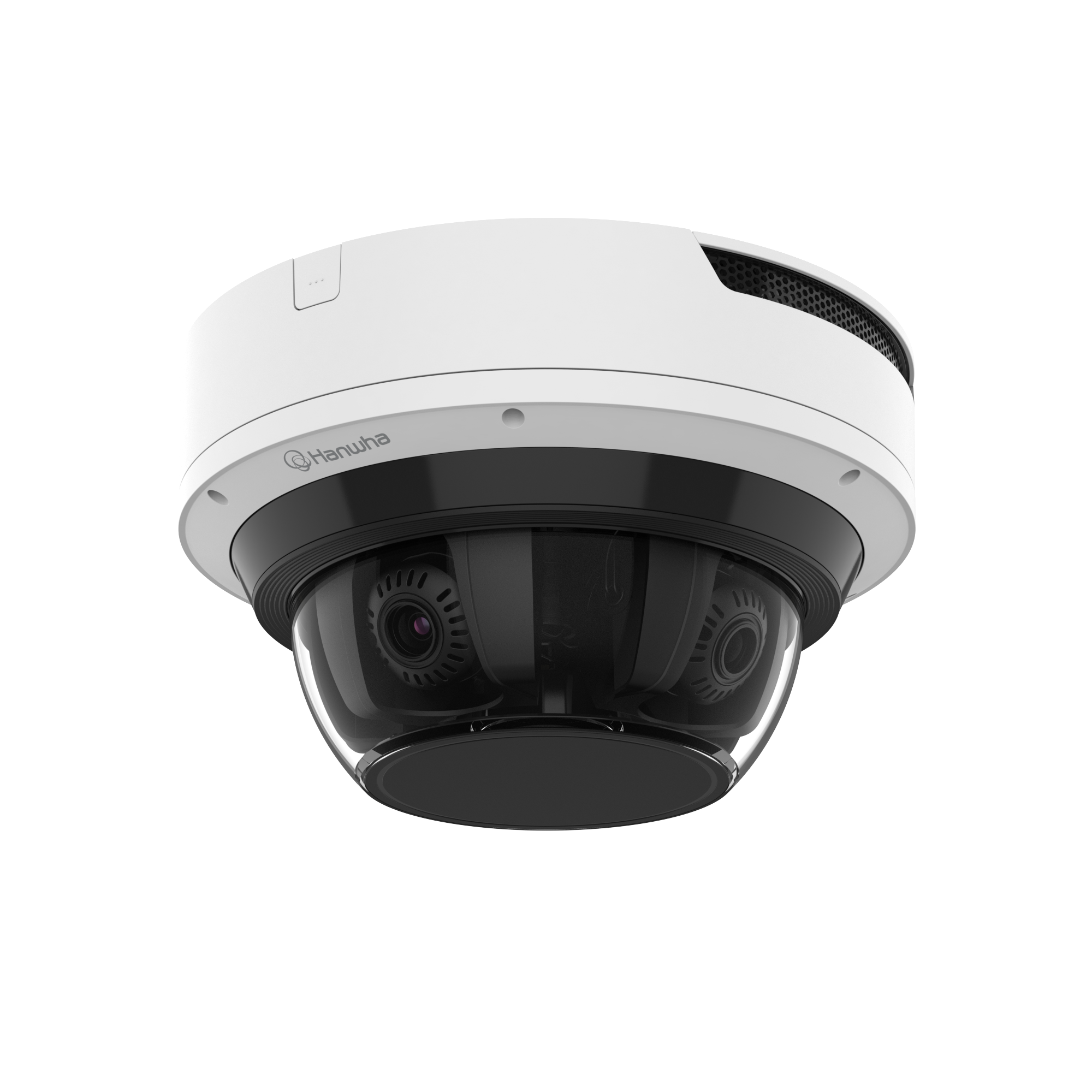

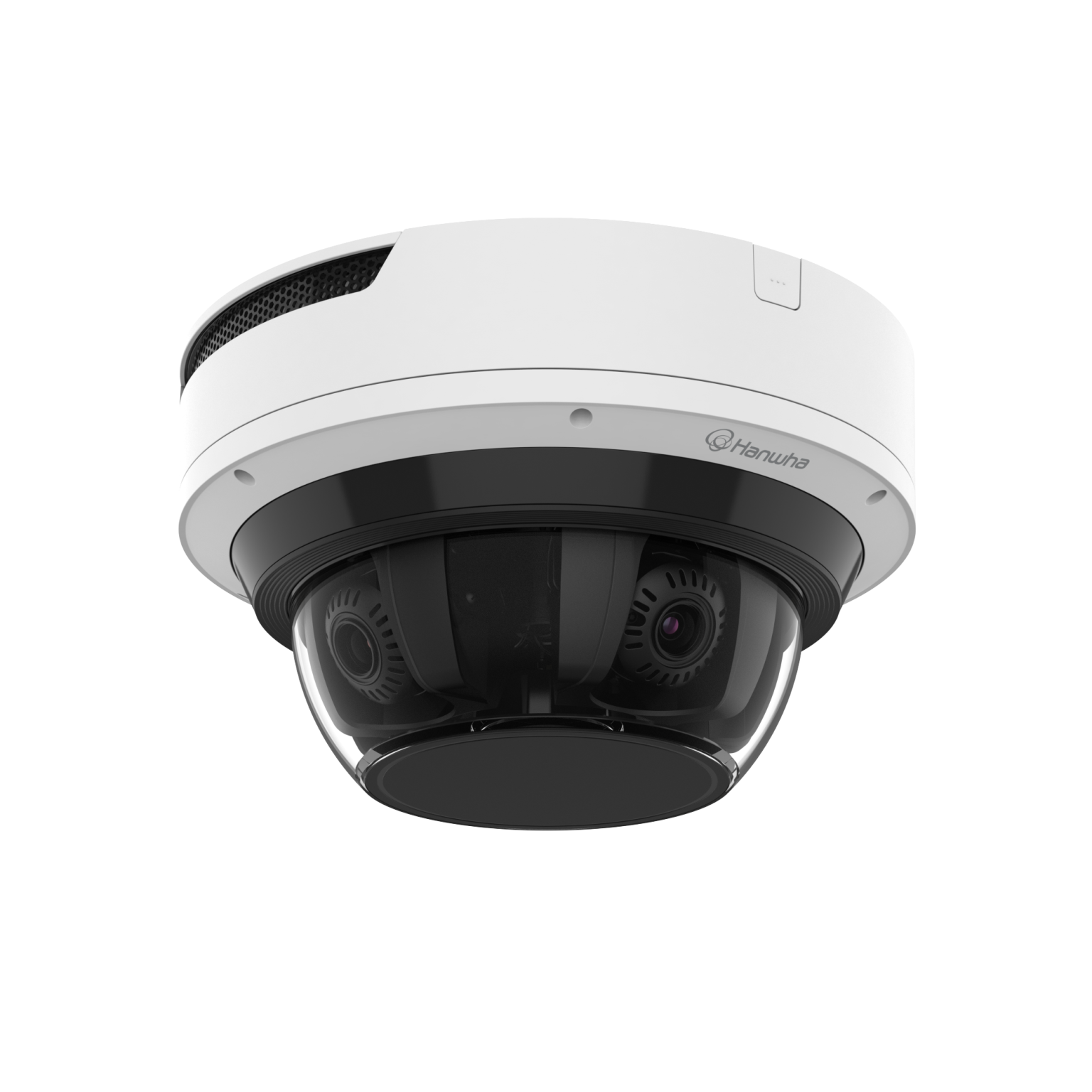

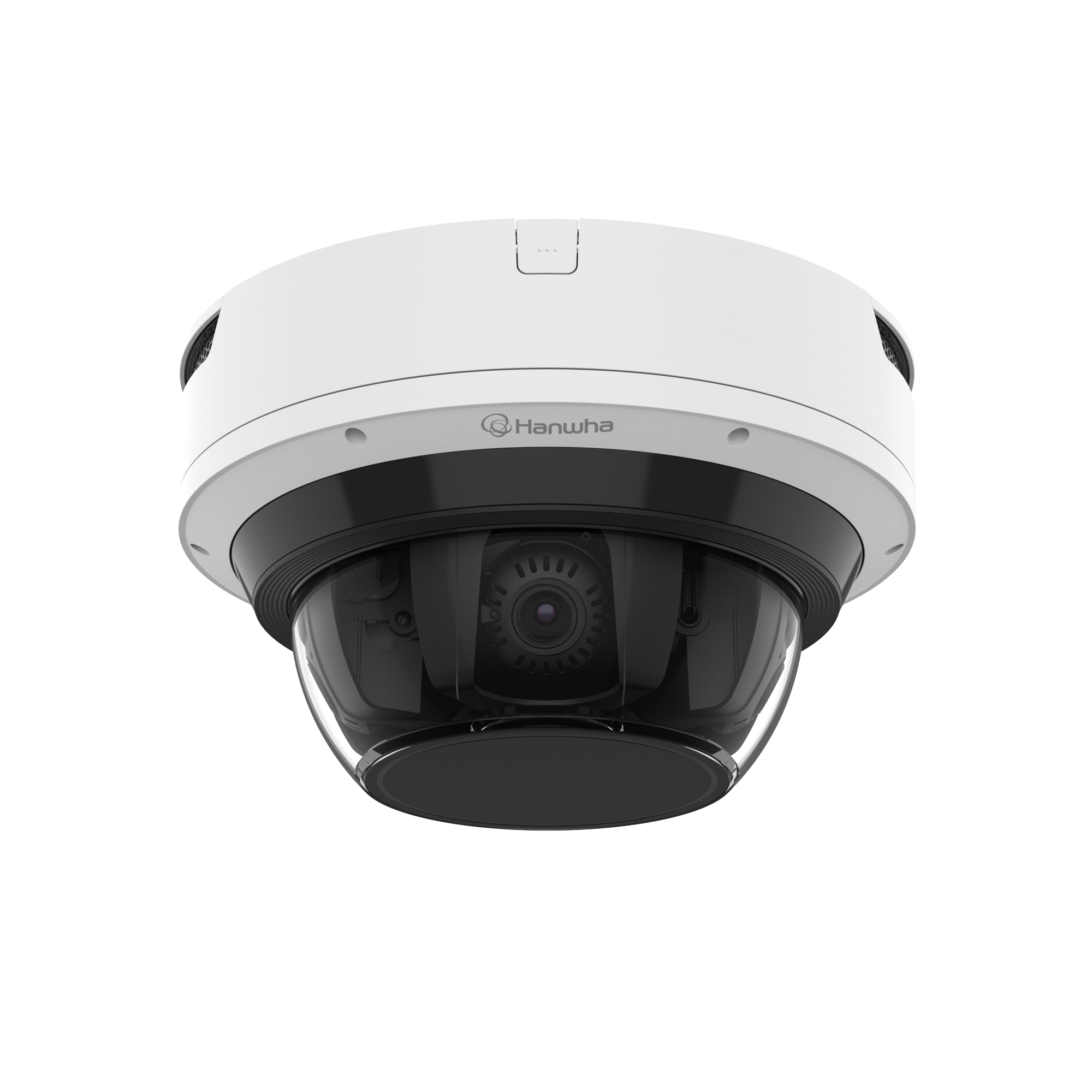

Hanwha - PNM-C32084RQZ-8XE256G - 4K AI, IR, PTRZ Multi-directional, Open Version with Jetson Orin 8GB (L)

Name: Hanwha - PNM-C32084RQZ-8XE256G - 4K AI, IR, PTRZ Multi-directional, Open Version with Jetson Orin 8GB (L)
Brand: Hanwha Vision
SKU: PNM-C32084RQZ-8XE256G

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• 360° Analytics events: Defocus detection, Motion detection,
• Tampering, Audio detection, Sound classification
• AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
• Supports hallway mode
• Max. 20fps(@8MP Max. 5fps)
• Next level cybersecurity (TPM 2.0 with FIPS 140-2 level 2)
• Reinforced durability (IP66, IK10, NEMA4X)

Network
Ethernet	Metal shielded RJ-45 (10/100/1000BASE-T)
Video Compression	H.265/H.264: Main/High, MJPEG
Smart Codec	Manual, WiseStreamⅢ
Bitrate Control	H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming Unicast	Up to 10 users, Multicast Support, Multiple Streaming Up to 3 profiles
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface	ONVIF S, G, T, M, SUNAPI(HTTP API), Hanwha Vision Open Platform
Security
OS / Firmware Protect	Encrypted firmware, Secure boot, Signed firmware
User authentication	Digest authentication
Network authentication	IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication	HTTPS, WSS(WebSocket Secure)
Access Control	IP-based access control
Data Protect	Encryption credentials, Encrypt compress for live recording file export
Audit	Access / System / Event Log management
Device ID	Device certificate(Hanwha Vision Root CA)
Secure Storage	TPM(Trusted platform module), SDcard partition encrypt(AES-256)
Security Certificate	TPM 2.0 with FIPS 140-2 level2
General
Memory RAM	8GB
Flash	8GB
Edge Storage	Micro SD/SDHC/SDXC Max. 512GB x 2slot (Total 1TB)
NVIDIA Carrier Board Supported Modules	NVIDIA Jetson Orin NX 8GB
Storage	256G SSD Included
Others	Includes NVIDIA Jetpack SDK
Environmental & Electrical
Operating Condition	Temperature -40°C~+55°C(-40°F~+131°F) Humidity 0~100% RH(condensing) Others Start up should be done at above -20°C, Humidity control with AIR vent
Storage Condition	Temperature -50°C~+60°C(-58°F~+140°F) Humidity 0~90% RH(non-condensing)
EPA(Effective Projected Area)	0.046㎡
Input Voltage	PoE++(IEEE802.3bt type4, Class8)
Power Consumption	PoE Max. 71W, typical 40W(Orin NX 16GB) Others Max. 66W, typical 40W(Orin NX 8GB)
Mechanical
Color	White
Material	Aluminum, PC(Polycarbonate), Hard-coated dome
RAL Code	RAL9003
Product Dimensions	ø315x180mm(ø12.40x7.09")
Product Weight	6,100g(13.45lb)
Compatible Conduit Hole	19.1mm(3/4")(M25)
Compatible Gang Box	Single, Double, 4" Octagon, Square
Certifications & Standards
EMC	FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety	UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment	IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/8PPF)	Wide: 50.8m (166.77ft) Tele: 176.6m (579.49ft)
Observe (63PPM/19PPF)	Wide: 20.3m (66.71ft) Tele: 70.7m (231.80ft)
Recognize (125PPM/38PPF)	Wide: 10.2m (33.35ft) Tele: 35.3m (115.90ft)
Identify (250PPM/76PPF)	Wide: 5.1m (16.68ft) Tele: 17.7m (57.95ft)

Name

Description

Size

Downloads

File

Datasheet

0.8mb

The Hanwha Vision PNM-C32084RQZ-8XE256G is a 4K AI multi-directional camera powered by an NVIDIA Jetson Orin NX 8GB module up to 117 TOPS, featuring 256GB SSD storage expandable and Jetpack 5.1 with support for version 6.x+. It includes four independent 4.38~9.33mm motorized varifocal lenses with PTRZ control per lens for flexible installation. The camera delivers 4 channels of 8MP at 20fps AI off or 15fps AI on using H.265/H.264, with WiseIR providing 25m of infrared range. Classified object types include Person, Face, Vehicle, and License Plate, with attributes such as vehicle type/color and person clothing color, supported by BestShot image capture. AI analytics include object detection, virtual line crossing/direction, and virtual area loitering/intrusion/enter/exit. The camera is rated IP66, IK10, and NEMA4X with 150 MPH wind load resistance, operates from -40°C to +55°C, and includes HPoE injector and dual microSD slots up to 1TB.

accessories

Hanwha - SBP-060S - Stainless steel mount strap (QTY of 2) for a wall/pole mount: Length: 600mm (23.6"), Width : 12.6mm (0.5")
