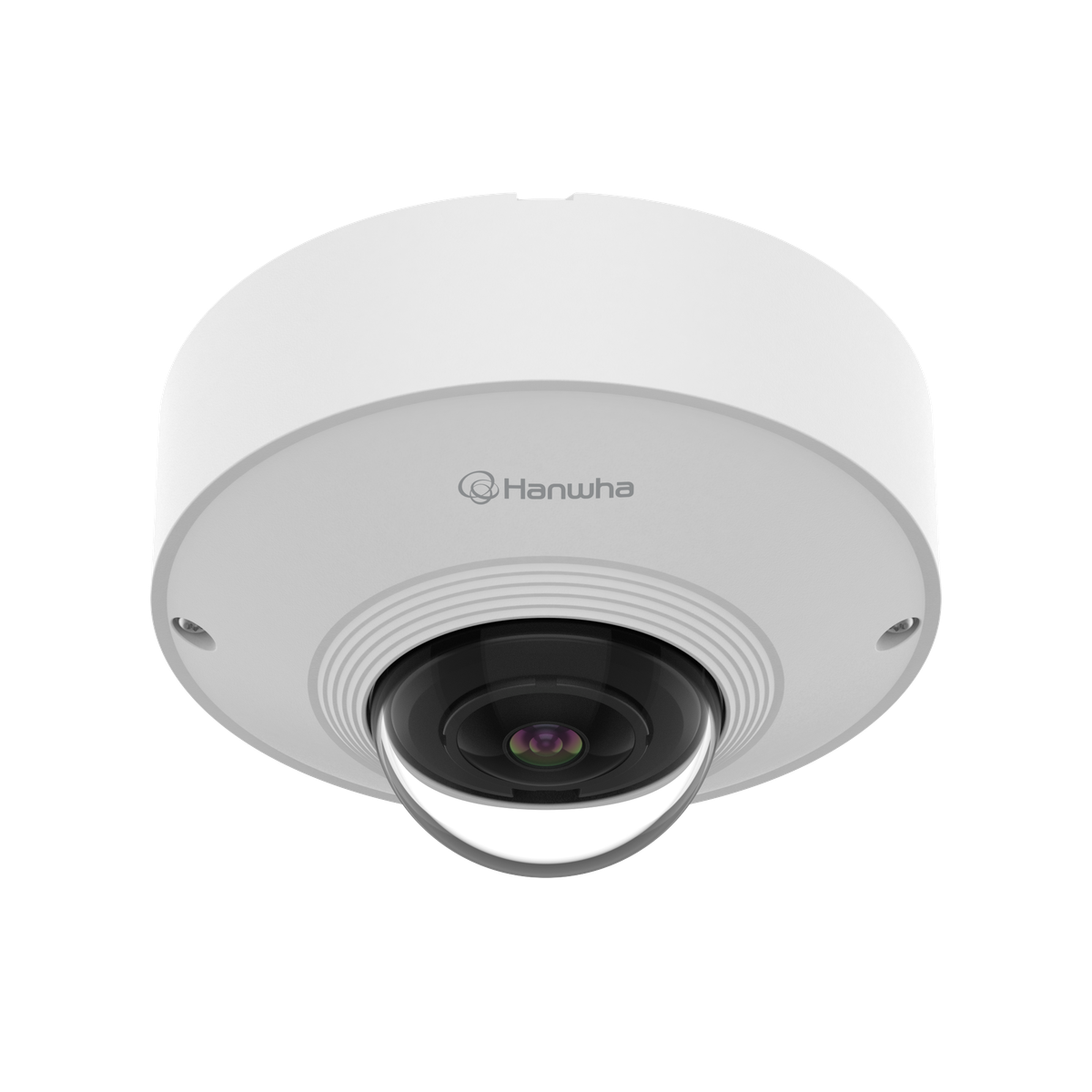

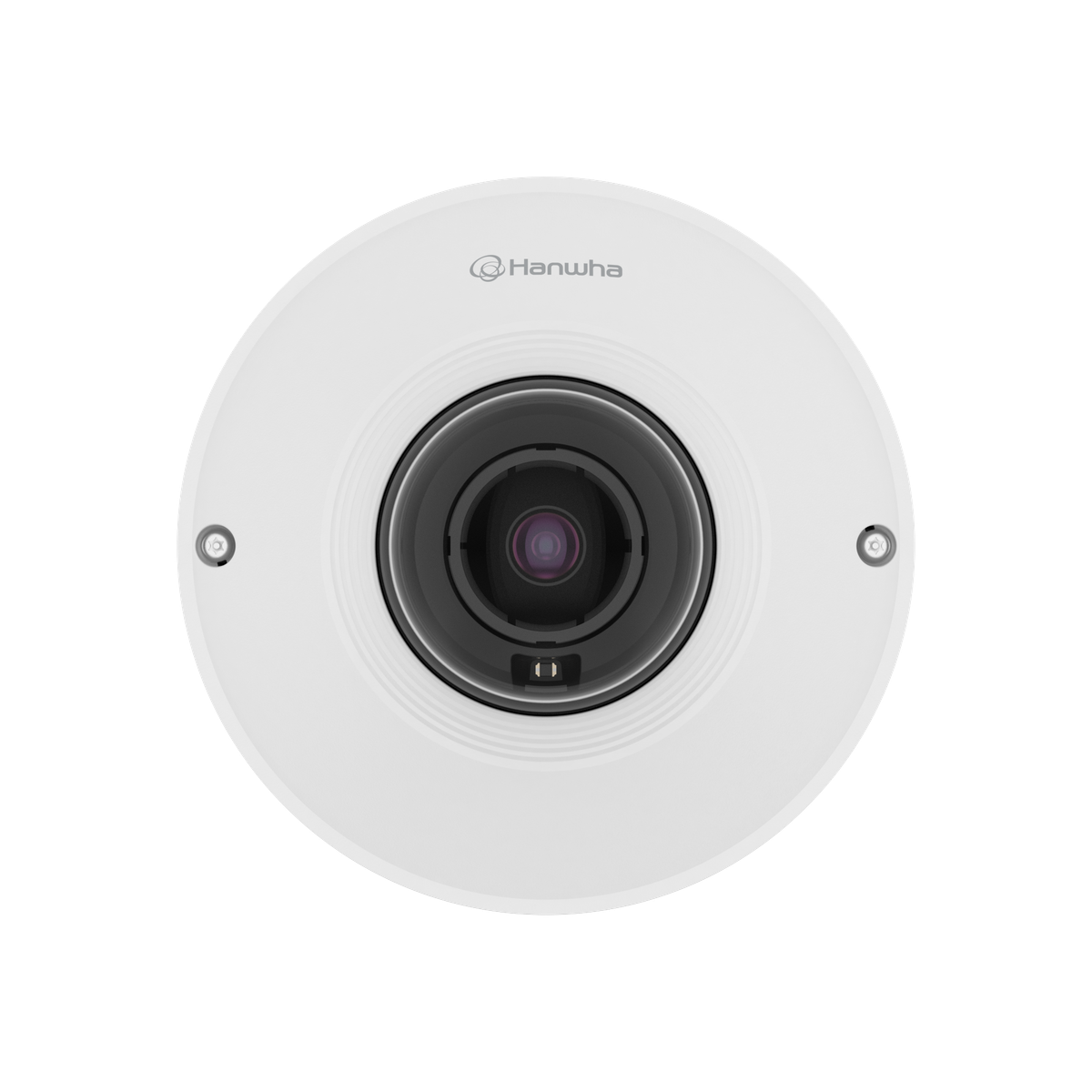

Hanwha - QNF-C9010V - Q Series Network Outdoor Fisheye Dome Camera, 12MP
Part number:
Price:
• 1/1.6" 12MP CMOS
• 1.76mm fixed stereo graphic type lens
• Color: 0.02Lux(F1.8, 1/30sec), BW: 0.001Lux(F1.8, 1/30sec)
• Digital Rotation
• Resolution/Framerate
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
• Analytics events based on AI engine
• IP66, IK10, NEMA4X
| Video | |
|---|---|
| Imaging Device Size | 1/1.6" |
| Imaging Device Type | CMOS |
| Resolution | 3584x2688, 3584x1792, 3584x896, 3008x3008, 2560x2560, 2048x1536, 1920x1920, 1920x960, 1920x480, 1792x1344, 1504x1504, 1280x1280, 1280x640, 1280x320, 1024x768, 1024x512, 1024x256, 800x800, 768x576, 640x640, 640x320, 640x160, 512x384, 480x480 |
| Max. Framerate H.265/H.264 | 20fps/20fps(60Hz/50Hz) |
| Max. Framerate MJPEG | 5fps |
| Min. Illumination (Lux) Color(1/30sec, 30IRE) | 0.02 |
| Min. Illumination (Lux) BW(1/30sec, 30IRE) | 0.001 |
| Video Out | USB: Micro USB Type B |
| Lens | |
| Focal Length (mm) | 1.76 |
| Max Aperture Ratio (F number) Wide | F1.8 |
| Angular Field of View Horizontal | 185° |
| Angular Field of View Vertical | 185° |
| Angular Field of View Diagonal | 185° |
| Min. Object Distance | 0.5m(1.64ft) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Digital Rotation |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Motion Detection Quantity | 8ea |
| Motion Detection Shape | 8point Polygonal zones |
| Privacy Masking Quantity | 32ea |
| Privacy Masking Shape | 4point Quadrangle zones |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| Electronic Shutter Mode | Minimum, Maximum, Anti flicker |
| Electronic Shutter Speed Range | 1/5~1/12,000sec |
| Digital PTZ | Support |
| Video Rotation | Flip, Mirror |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication |
| Analytics | |
| Classified Object Type | Person, Vehicle |
| Attributes Person | Upper/Lower clothes color |
| Attributes Vehicle | Color |
| Thumbnail | BestShot |
| Analytics Events Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Analytics Events Normal | Defocus detection, Tampering |
| Business Intelligence Based on AI Engine | People counting, Queue management, Heatmap |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual, WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming Unicast | Up to 20 users |
| Streaming Multicast | Support |
| Multiple Streaming | Up to 5 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface ONVIF | S, G, T, M |
| Application Programming Interface Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256) |
| General | |
| Memory RAM | 2GB |
| Memory Flash | 1GB |
| Edge Storage Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
| Edge Storage(OnCloud) Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition Temperature | -40°C~+55°C(-40°F~+131°F) |
| Operating Condition Humidity | 0~100% RH(condensing) |
| Others | Start up should be done at above -30°C |
| Storage Condition Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition Humidity | 0~95% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption PoE | Max 6.7W, typical 4.8W |
| Mechanical | |
| Color | White |
| Material | Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions | ø120x72.3mm(ø4.7x2.85") |
| Product Weight | 583g(1.28lb) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) Wide | 36.9m(121.03ft) |
| Observe (63PPM/ 19PPF) Wide | 14.8m(48.42ft) |
| Recognize (125PPM/ 38PPF) Wide | 7.4m(24.21ft) |
| Identify (250PPM/ 76PPF) Wide | 3.7m(12.10ft) |
