Hanwha - XND-A6084RV - 2MP IR Indoor Dome AI Camera
Product Overview

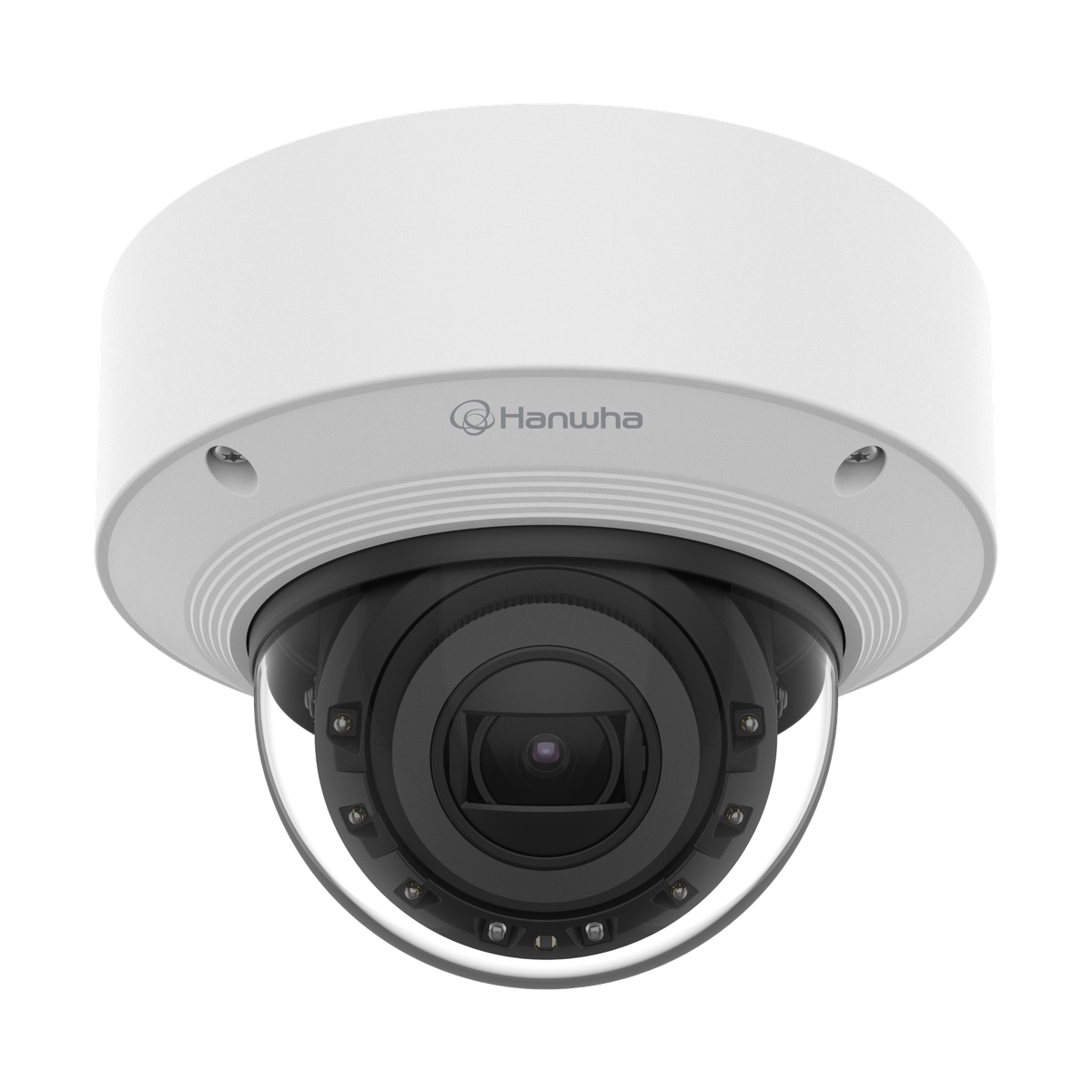

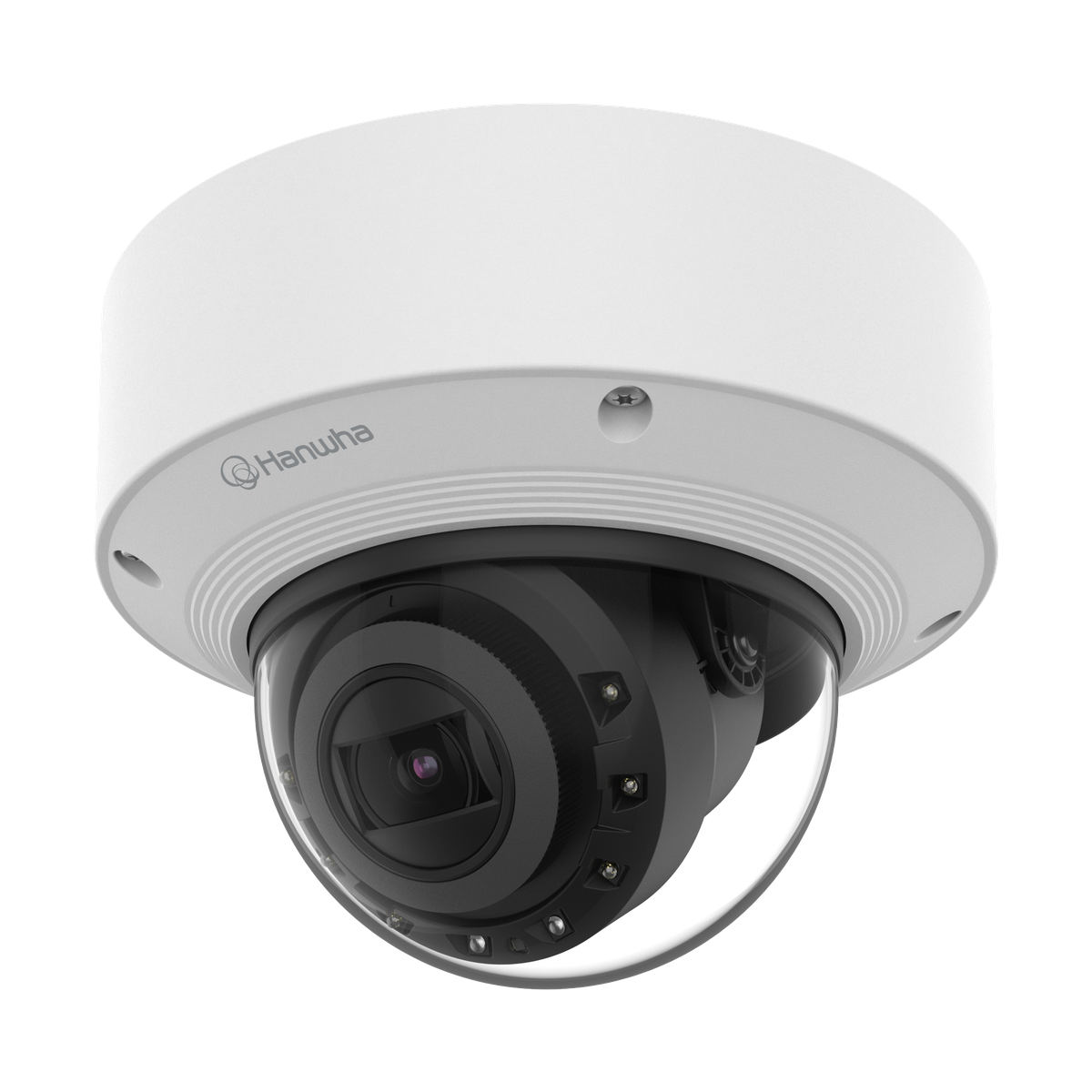

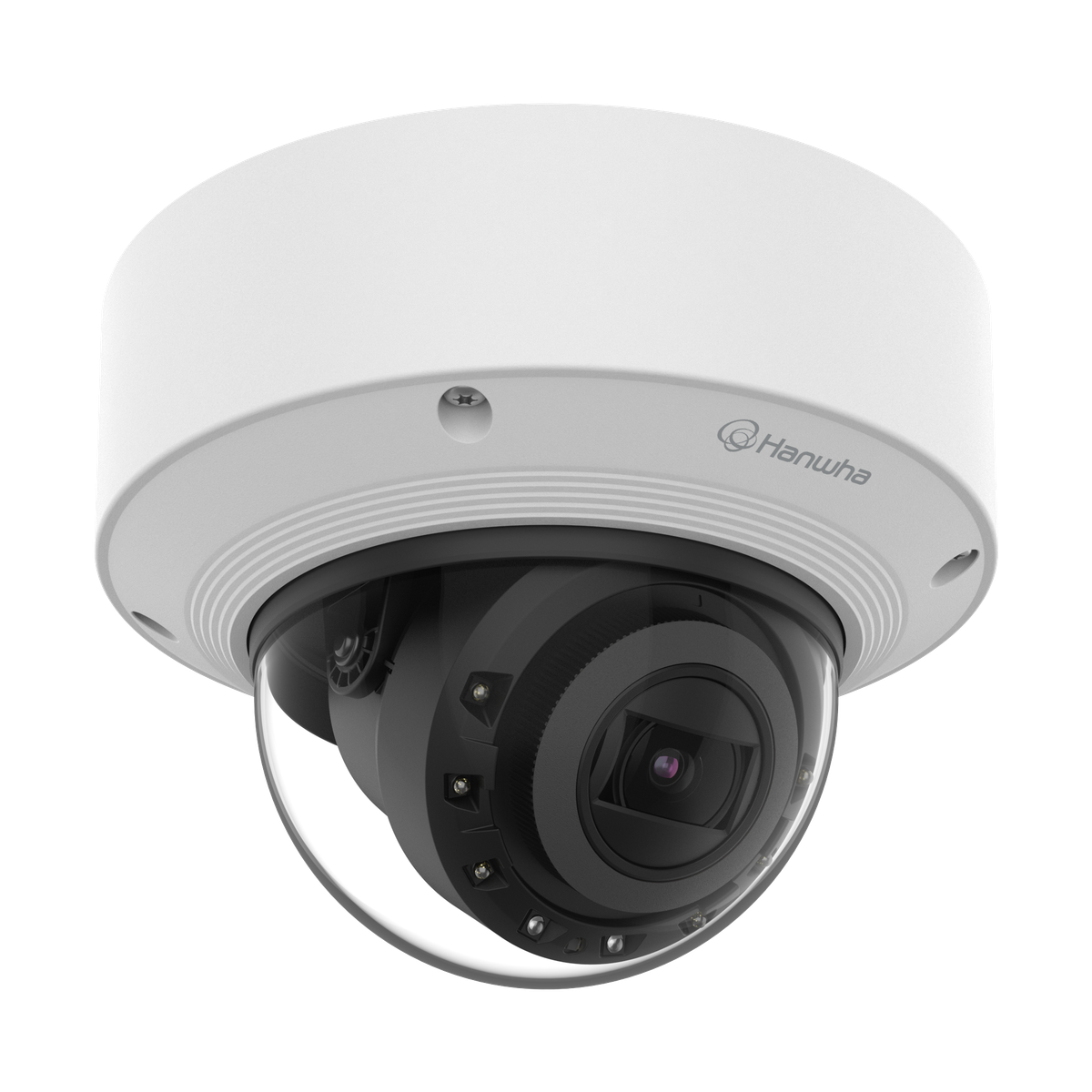

The Hanwha Vision XND-A6084RV is a high-performance 2MP AI IR dome camera equipped with a 2.8~12mm motorized varifocal lens and 150dB WDR for superior image clarity. It delivers 1080p resolution at 60 fps, utilizing a dual NPU for AI-driven enhancements and WiseIR to provide visibility up to 50 meters. Designed for indoor security with IP52 and IK10 ratings, it features advanced AI analytics such as face mask, social distancing, and slip & fall detection, alongside a full suite of business intelligence tools including crowd counting, queue management, and heatmaps.
Configuration
- • Imaging device: 1/2.8" CMOS; resolution: 1920×1080 (2MP)
- • Lens: 2.8~12mm motorized varifocal (4.3x optical zoom), P-iris (IR corrected)
- • Angular FOV: horizontal 120° (wide) to 27° (tele); diagonal 143° to 32°
- • IR wavelength: 850nm; WiseIR viewable length: up to 50m (164.04ft)
- • Max framerate: 60 fps (H.265/H.264), 30 fps (MJPEG)
Features
Featuring a dual NPU for AI-driven image optimization, this camera excels in low light (0.02 lux) and high-contrast scenes with 150dB WDR and WiseNRⅡ. It ensures stable, clear footage through Digital Image Stabilization (DIS) and Lens Distortion Correction (LDC), while offering a Hallway View mode for vertical monitoring. Beyond standard security, its AI engine detects slip-and-fall incidents, face masks, and social distancing, while BestShot attributes (like age, gender, and clothing) facilitate rapid similarity searches. Operationally, the unit provides actionable data via heatmaps and crowd counting, supported by selectable audio I/O and two configurable alarm ports.
Technical Context
Powered by the Wisenet 9 SoC with 4GB RAM, this camera utilizes H.265/H.264 and AI-based WiseStream to support three virtual channels and up to five streaming profiles. It features an advanced security architecture with a FIPS 140-3 Level 3 secure element and ETSI EN 303 645 compliance, ensuring robust cyber protection. The unit is optimized for modern workflows with direct cloud connection support and high-capacity edge storage via a 1TB Micro SD slot.
Installation Notes
This white aluminum and polycarbonate dome is designed for indoor reliability with IP52 and IK10 ratings, featuring an AIR vent for condensation control. It operates efficiently on PoE-only power (10.2W max) and includes a WisePower Eco mode to monitor and reduce energy consumption. For streamlined setup, it offers simple focus, a USB Type-C video-out for mobile installation, and a sustainable design containing over 10% recycled plastic.
| Video | |
|---|---|
| Imaging Device - Size | 1/2.8" |
| Imaging Device - Type | CMOS |
| Imaging Device - Resolution | 1920x1080, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate - H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
| Max. Framerate - MJPEG | 30fps |
| Min. Illumination (Lux) - Color(1/30sec, 30IRE) | 0.02 |
| Min. Illumination (Lux) - BW(1/30sec, 30IRE) | 0.002 |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
| Lens | |
| Focal Length (mm) | 2.8~12 |
| Zoom Ratio - Optical | 4.3x |
| Max Aperture Ratio (F number) - Wide | 1.4 |
| Max Aperture Ratio (F number) - Tele | 3.6 |
| Angular Field of View - Horizontal | 120°~27° |
| Angular Field of View - Vertical | 63°~15° |
| Angular Field of View - Diagonal | 143°~32° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range - Pan | 0°~360° |
| Pan / Tilt / Rotate Range - Tilt | 0°~75° |
| Pan / Tilt / Rotate Range - Rotate | 0°~355° |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 150 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection - Quantity | 8ea |
| Motion Detection - Shape | 8point Polygonal zones |
| Privacy Masking - Quantity | 32ea |
| Privacy Masking - Shape | 8point Polygonal zones |
| Privacy Masking - Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter - Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter - Speed Range | 2~1/40,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface - In/Out | 2 configurable I/O ports |
| Alarm Interface - Others | Support extra alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length - IR | WiseIR 50m(164.04ft) |
| IR Wavelength | 850nm |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes - Person | Upper/Lower clothes color, Gender, Bag |
| Attributes - Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color |
| Attributes - Face | Age, Gender, Face mask, Glasses |
| Similarity Search | Support |
| Thumbnail | BestShot |
| Analytics Events - Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Analytics Events - Normal | Defocus detection, Tampering, Audio detection, Shock detection |
| Business Intelligence - Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps) |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming - Unicast | Up to 20 users |
| Streaming - Multicast | Support |
| Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog |
| Application Programming Interface - ONVIF | S, G, T, M |
| Application Programming Interface - Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
| General | |
| SoC - Type | Wisenet 9 |
| SoC - Dual NPU | Support |
| Memory - RAM | 4GB |
| Memory - Flash | 8GB eMMC |
| Edge Storage - Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) - Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition - Temperature | -10°C~+50°C(+14°F~+122°F) |
| Operating Condition - Humidity | 0~100% RH(condensing) |
| Operating Condition - Others | Humidity control with AIR vent |
| Storage Condition - Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition - Humidity | 0~90% RH(non-condensing) |
| EPA(Effective Projected Area) | 0.02㎡ |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption - PoE | Max. 10.2W, typical 5.0W |
| WisePower | Power monitoring, Eco mode |
| Mechanical | |
| Color | White |
| Material | Aluminum, PC(Polycarbonate), Hard-coated dome |
| Material Management - Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| Recycle Rate | Recycled plastic: 10.63% |
| RAL Code | RAL9003 |
| Product Dimensions | ø160x118mm(6.30x4.65") |
| Product Weight | 1,032g(2.27lb) |
| Compatible Conduit Hole | 12.7mm(1/2")(M20) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP52, IEC 62262 IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) - Wide | 30.0m(98.43ft) |
| Detect (25PPM/ 8PPF) - Tele | 138.5m(454.28ft) |
| Observe (63PPM/ 19PPF) - Wide | 12.0m(39.37ft) |
| Observe (63PPM/ 19PPF) - Tele | 55.4m(181.71ft) |
| Recognize (125PPM/ 38PPF) - Wide | 6.0m(19.69ft) |
| Recognize (125PPM/ 38PPF) - Tele | 27.7m(90.86ft) |
| Identify (250PPM/ 76PPF) - Wide | 3.0m(9.84ft) |
| Identify (250PPM/ 76PPF) - Tele | 13.8m(45.43ft) |
