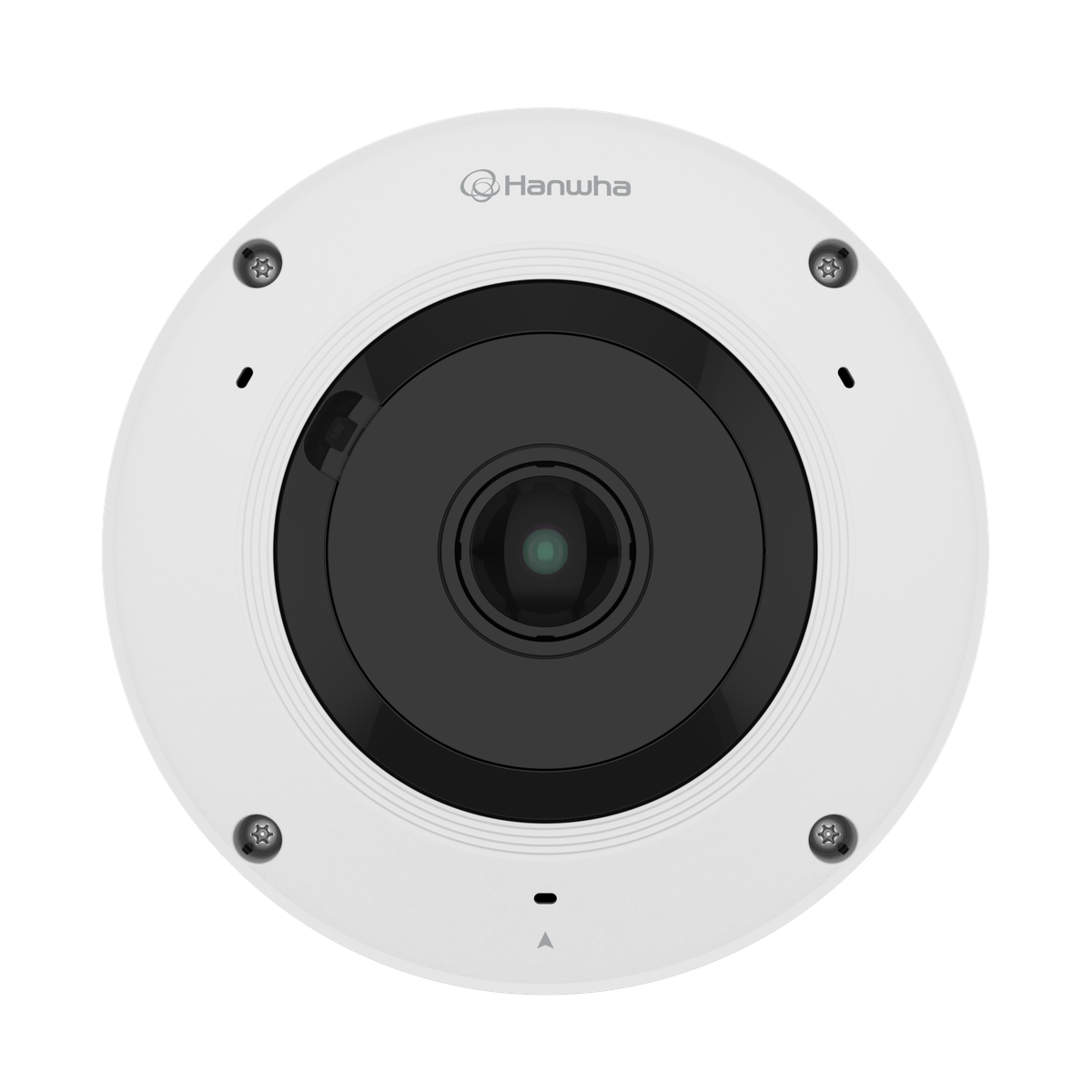

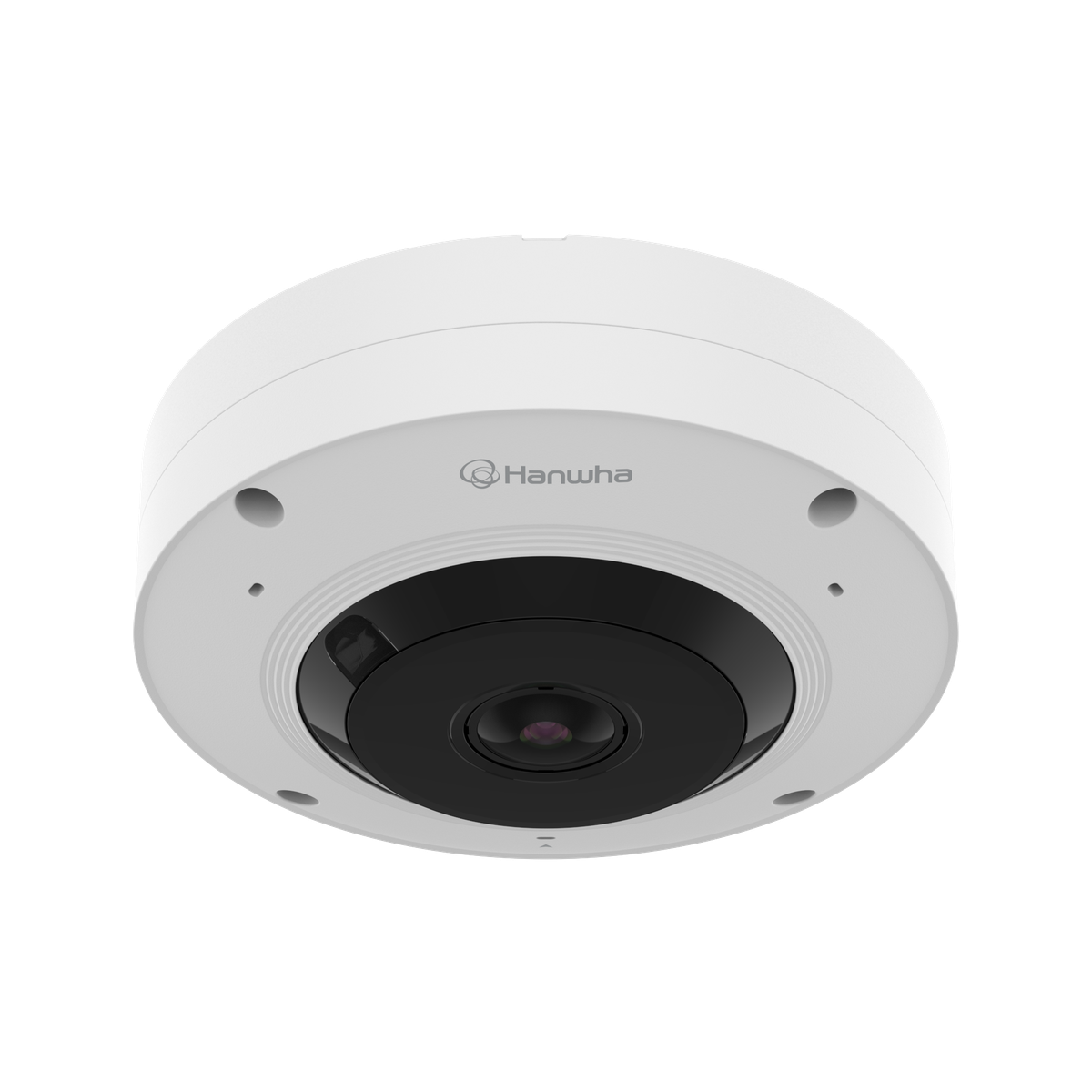

Hanwha - XNF-A9014R - 12MP AI IR Fisheye Camera

Product Overview

The Hanwha Vision XNF-A9014R is a high-performance 12MP AI-powered fisheye camera that provides a complete 185° panoramic view. Equipped with a large 1/1.6" CMOS sensor and a 1.76mm fixed lens, it delivers ultra-sharp 3536×3536 resolution. For nighttime security, integrated WiseIR technology illuminates up to 20 meters in total darkness.

Configuration

• • Imaging device: 1/1.6" CMOS; resolution options up to 3536×3536 (12MP)
• • Lens: 1.76mm fixed, F1.8; 185° horizontal, vertical, and diagonal field of view
• • IR wavelength: 850nm; WiseIR viewable length: up to 20m (65.61ft)
• • Max framerate: 30 fps (H.265/H.264), 5 fps (MJPEG); max 20 fps in PoE mode
• • Edge storage: Micro SD/SDHC/SDXC ×1 slot, max 1TB (Hanwha Vision branded cards recommended for OnCloud)

Features

The camera combines elite low-light performance- capturing color at 0.02 lux- with a dual NPU for AI-enhanced imaging, 120dB WDR, and Digital Image Stabilization. Its advanced AI identifies specific attributes such as clothing color and vehicle type via BestShot, while also providing business intelligence through heatmaps, queue management, and people/vehicle counting. With three built-in microphones, two configurable I/O ports, and specialized detection for intrusions or loitering, this camera offers a complete, high-resolution security and operational data solution in a single unit.

Technical Context

Powered by the Wisenet 9 SoC with a dual NPU, this camera utilizes H.265/H.264 compression and AI-based WiseStream technology to optimize bandwidth while supporting up to five streaming profiles for 20 simultaneous users. It features extensive protocol support, including MQTT, IPv6, and direct cloud connectivity, alongside ONVIF Profiles S, G, T, and M for seamless integration. The system is built on a high-security architecture with 4GB RAM and 8GB eMMC storage, utilizing encrypted firmware, secure boot, and a FIPS 140-3 Level 3 secure element to ensure enterprise-grade data protection.

Installation Notes

It has a compact, white aluminium body measuring Ø160 × 60.4 mm and weighing 2.20 lbs., designed with an IP42 rating for reliable indoor use. It operates in temperatures from -10°C to +55°C and offers versatile power options via PoE, PoE+, or 12VDC, complete with power redundancy failover and WisePower monitoring for constant uptime. Highly adaptable for installation, the unit supports standard gang boxes, digital PTZ, and digital rotation, while meeting rigorous FCC, CE, and UL standards to ensure enterprise-grade safety and performance.
