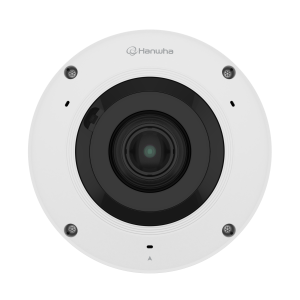

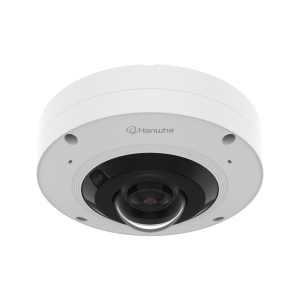

Hanwha - XNF-A8014RV - 6MP Outdoor Fisheye Camera with AI and IR

Name: Hanwha - XNF-A8014RV - 6MP Outdoor Fisheye Camera with AI and IR
Brand: Hanwha Vision
SKU: XNF-A8014RV

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• Powered by WN9
• Outdoor AI IR fisheye camera
• 6MP sensor
• Max resolution 2560 × 2560 @ 30FPS
• 1.76mm fixed stereo graphic lens (H185° / V185°)
• H.265 / H.264 / MJPEG codec supported
• IR viewable length up to 17m (55.77 ft)
• Selectable microphone input (mic in / line in / built-in 3 mics)
• extremeWDR (120dB)
• Digital rotation
• Storage: Built-in microSD card slot (up to 1TB)
• Hard-coated dome cover
• Durability ratings: IP66, IK10, NEMA 4X
• Operating temperature: -40°C to +55°C (-40°F to +131°F)
• Power: PoE / PoE+ (Wise Power), 12VDC
• OnCloud compatible

Video
Imaging Device Size	1/1.6"
Type	CMOS
Resolution	2560x2560, 2560x1920, 2560x1280, 2560x640, 1920x960, 1920x480, 1792x1344, 1600x1600, 1280x1280, 1280x960, 1280x640, 1280x320, 1024x768, 1024x512, 1024x256, 800x800, 800x600, 640x640, 640x480, 640x320, 640x160, 480x480, 320x240, 160x160
Max. Framerate	H.265/H.264: 30fps/25fps (60Hz/50Hz) MJPEG: 5fps Others: Max. 20fps in PoE mode
Min. Illumination (Lux)	Color (1/30sec, 30IRE): 0.02 BW (1/30sec, 30IRE): 0.001
Lens
Focal Length (mm)	1.76
Max Aperture Ratio (F number)	Wide: 1.8 / Tele: 1.8
Angular Field of View	Horizontal: 185° Vertical: 185° Diagonal: 185°
Min. Object Distance	0.5m (1.64ft)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	Rotate Digital rotation
Operational
Day & Night	Auto (ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)	120
Digital Noise Reduction	WiseNRⅡ (Based on AI engine), SSNRⅤ
Digital Image Stabilization	Support
Defog	Support
Motion Detection	Quantity: 8ea, Shape: 8point Polygonal zones
Privacy Masking	Quantity: 32ea, Shape: 8point Polygonal zones Color: Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Gain Control	Off, Max gain, Manual
White Balance	ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
Electronic Shutter	Mode: Minimum, Maximum, Anti flicker, Prefer shutter control (Based on AI engine) Speed Range: 2~1/30,000 sec
Digital PTZ	Support
Video Rotation	Flip, Mirror
Alarm Interface	In/Out: 2 configurable I/O ports Support extra alarm I/O via optional I/O box
Alarm Triggers	Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption
Alarm Events	File upload (image): e-mail/FTP/SFTP, File upload (video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio In	Selectable (mic in/line in), Built-in 3mics
Audio Out	Line out
Light Type	IR LED
Light Viewable Length	IR WiseIR up to 17m (55.77ft)
IR Wavelength	850nm
Analytics
Classified Object Type	Person, Face, Vehicle, License plate
Attributes	Person: Upper/Lower clothes color Vehicle: Type (car, bus, truck, motorcycle, bicycle), Color
Thumbnail	BestShot
Analytics Events (Based on AI Engine)	Object detection, Virtual line (Crossing/Direction), Motion detection, Virtual area (Loitering/Intrusion/Enter/Exit/Appear/Disappear)
Normal Analytics Events	Defocus detection, Tampering, Audio detection, Shock detection
Business Intelligence (Based on AI Engine)	People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
Network
Ethernet	Metal shielded RJ-45 (10/100BASE-T)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression	Opus 8/16kHz, G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), OPUS: 16kHz(64kbps), AAC-LC: 16/32/44.1/48kHz(48kbps), OPUS: 48kHz(64kbps)
Smart Codec	WiseStream (Based on AI engine)
Bitrate Control	H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming	Unicast: Up to 20 users, Multicast: Support
Multiple Streaming	Up to 5 profiles
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog
Application Programming Interface
API	ONVIF S, G, T, M, SUNAPI (HTTP API), Hanwha Vision Open Platform, Direct Cloud Connection Support
Security
OS / Firmware Protect	Encrypted firmware, Secure boot, Signed firmware
User authentication	Digest authentication, Prevent brute-force attack
Network authentication	IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication	HTTPS, WSS (WebSocket Secure), SRTP, 802.1AE (MACsec)
Access Control	IP-based access control, MAC-based access control, Auto logout
Data Protect	Encryption credentials, Encrypt compress for live recording file export
Audit	Access / System / Event Log management
Device ID	Device certificate (Hanwha Vision Root CA)
Secure Storage	SDcard partition encrypt (AES-256), Secure element
Supply Chain Security	SBOM
Security Certificate	Secure element (FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
General
SoC Type	Wisenet 9 (Dual NPU Support)
Memory	RAM: 4GB, Flash: 8GB eMMC
Edge Storage	Micro SD/SDHC/SDXC Max. 1TB x 1 slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating Condition	Temperature: -40°C~+55°C (-40°F~+131°F) Humidity: 0~100% RH (condensing) * In PoE+ mode, IR illuminator will turn off if the temperature is higher than 50°C
Storage Condition	Temperature: -50°C~+60°C (-58°F~+140°F) Humidity: 0~95% RH (non-condensing)
Input Voltage	PoE (IEEE802.3af, Class3), PoE+ (IEEE802.3at, Class4), 12VDC
Power Consumption	PoE: Max. 19.8W, typical 10.5W 12VDC: Max. 20.0W, typical 10.9W
WisePower	Power mode, Power monitoring
Power Redundance	Failover Support
Mechanical
Color	White
Material	Aluminum, Hard-coated dome
Material Management Declaration	RoHS (EU RoHS directive 2011/65/EU and IEC/EN 63000:2018)
RAL Code	RAL9003
Product Dimensions	Ø160x75mm (6.23x2.95")
Product Weight	1020g (2.25lb)
Compatible Gang Box	Single, Double, 4" Octagon, Square
Certifications & Standards
EMC	EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, EN 50121-3-2
Safety	UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment	IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, EN 50155, IEC 62236-4, EN 50121-4, EN 50498, IEC/EN 61373, EN 45545, IEC 62236-3-2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
DORI (EN62676-4 standard)
Detect (25PPM / 8PPF)	Wide: 31.4m (102.97ft)
Observe (63PPM / 19PPF)	Wide: 12.6m (41.19ft)
Recognize (125PPM / 38PPF)	Wide: 6.3m (20.59ft)
Identify (250PPM / 76PPF)	Wide: 3.1m (10.30ft)

Name

Description

Size

Downloads

File

Datasheet

1.1mb

File

A&E Specification

0.1mb

The Hanwha Vision XNF-A8014RV is a 6MP outdoor fisheye camera powered by the Wisenet 9 platform with dual NPU support, featuring a 1/1.6" CMOS sensor delivering 2560 x 2560 resolution at up to 30fps with a 1.76mm fixed lens providing a 185° field of view in all directions. WiseIR illumination provides up to 17 meters of night vision with 0.001 Lux minimum illumination in black and white mode and 0.02 Lux in color. Video enhancements include AI-based WiseNR II, SSNR V, 120dB WDR, digital image stabilization, defog, and AI-based Prefer Shutter Control. The camera includes built-in 3 microphones, audio input and audio output. AI engine-based analytics include object detection, virtual line, virtual area, motion detection, defocus detection, tampering, audio detection, and shock detection. Business intelligence features include people counting, queue management, heatmap, vehicle counting, and crowd counting. Object attributes include person and vehicle with BestShot thumbnail capture. The camera is rated IP66, IK10, NEMA 4X, and NEMA TS-2, operating from -40°C to +55°C with 0-100% condensing humidity. It includes a secure element with FIPS 140-3 Level 3 and CC EAL6+ certification, supports PoE/PoE+ or 12VDC with WisePower monitoring and failover redundancy, and features a single microSD slot up to 1TB.
