Hanwha - XNF-A8014R - 6MP AI IR Fisheye Camera

Product Overview

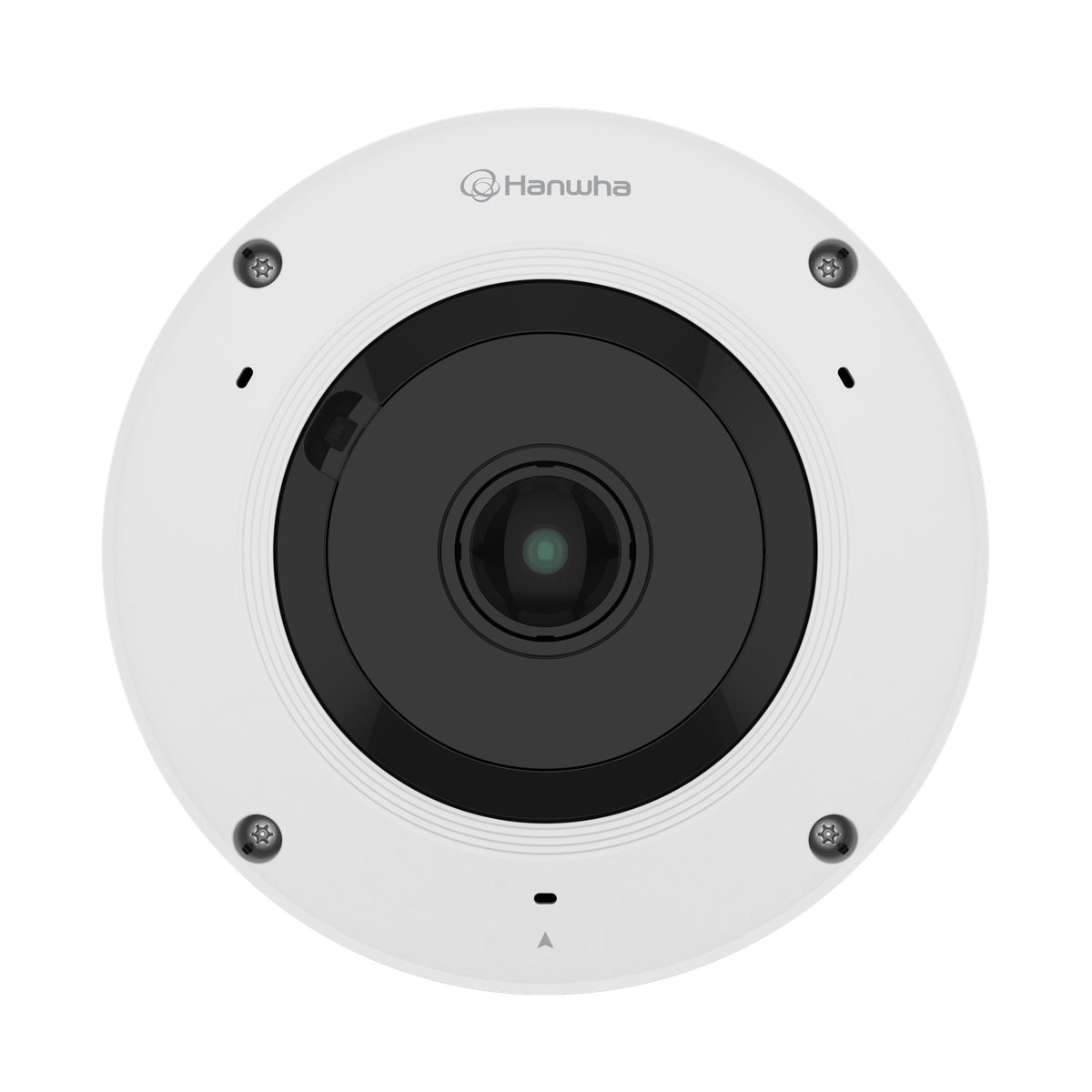

The Hanwha Vision XNF-A8014R is a 6MP AI-powered fisheye camera featuring a high-performance 1/1.6" CMOS sensor and a 1.76mm lens that provides a complete 185° panoramic field of view. It delivers sharp 2560×2560 resolution at 30 fps, utilizing a dual NPU for AI-driven image enhancement and integrated WiseIR to illuminate up to 17 meters in total darkness. Beyond standard surveillance, it offers advanced AI analytics such as object detection and BestShot with color attributes, alongside essential business intelligence tools like people/vehicle/crowd counting, queue management, and heatmaps.

Configuration

• • Imaging device: 1/1.6" CMOS; resolution options up to 2560×2560 (6MP)
• • Lens: 1.76mm fixed, F1.8; 185° horizontal, vertical, and diagonal field of view
• • IR wavelength: 850nm; WiseIR viewable length: up to 17m (55.77ft)
• • Max framerate: 30 fps (H.265/H.264), 5 fps (MJPEG); max 20 fps in PoE mode
• • Edge storage: Micro SD/SDHC/SDXC ×1 slot, max 1TB (Hanwha Vision branded cards recommended for OnCloud)

Key Features

It provides superior situational awareness, offering low-light sensitivity down to 0.001 lux (black and white) and featuring a dual NPU for AI-driven image optimisation. This includes 120dB WDR and WiseNR II noise reduction. Its advanced AI engine enables precise object detection and monitoring of virtual lines or areas for intrusion and loitering, while the BestShot feature captures subjects with specific clothing and vehicle color attributes. This camera also acts as a data-driven business tool, providing real-time heatmaps, queue management, and counting for people, vehicles, and crowds. With three built-in microphones, Digital Image Stabilization, and two configurable alarm I/O ports, it delivers a comprehensive security and operational solution in a single unit.

Technical Context

Built on the Wisenet 9 SoC with 4GB RAM and 8GB eMMC, this camera utilizes H.265/H.264 compression and AI-based WiseStream III to optimize bandwidth for up to five streaming profiles. It supports an extensive suite of protocols including MQTT, IPv6, and direct cloud connectivity, alongside ONVIF Profiles S, G, T, and M for seamless integration. Enterprise-grade security is central to the design, featuring encrypted and signed firmware, secure boot, and a FIPS 140-3 Level 3 certified secure element to ensure total data protection.

Installation Notes

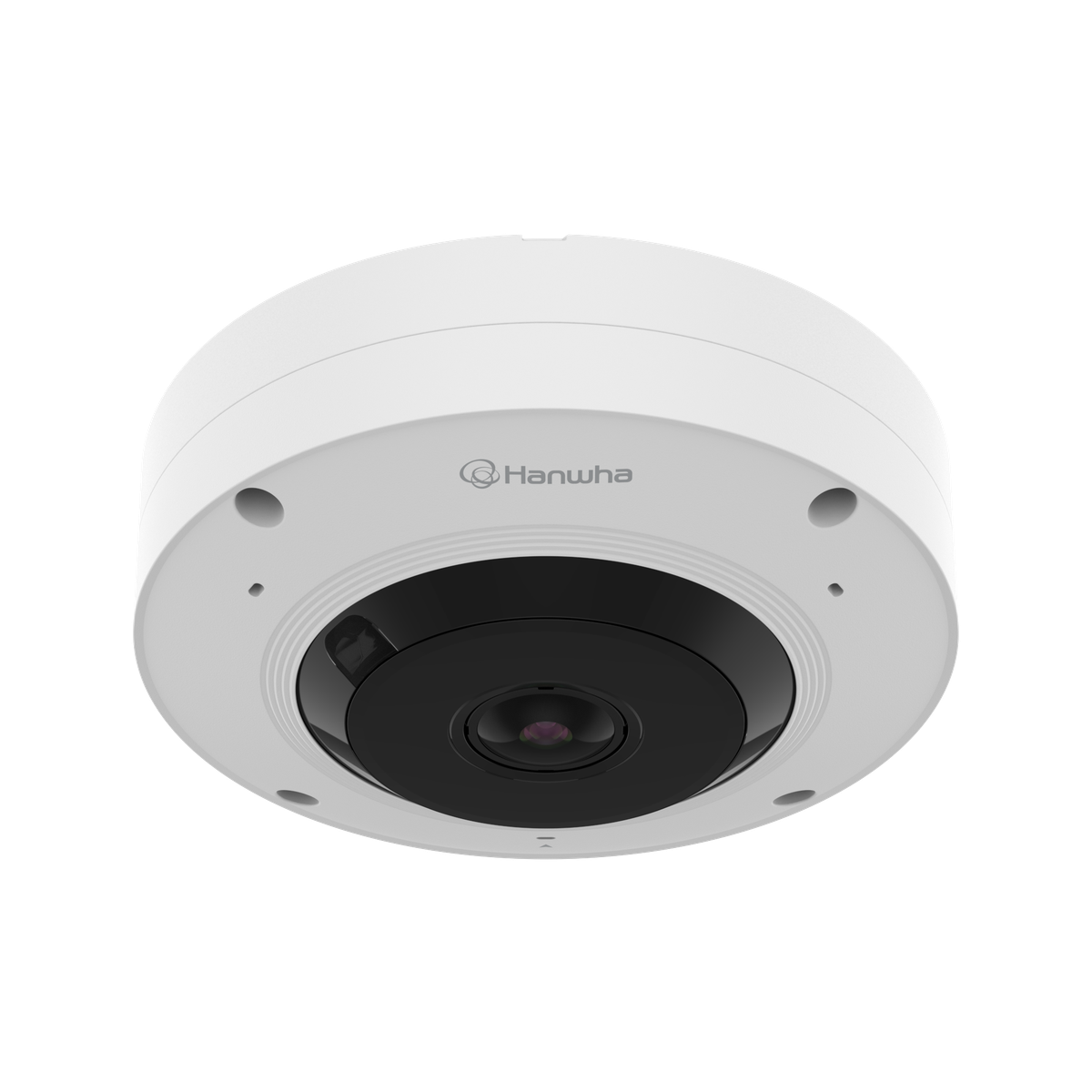

The features a low-profile white aluminum body with a hard-coated dome, measuring Ø160 × 60.4 mm and weighing 2.20 lbs. Designed for indoor reliability, it carries an IP42 rating and operates within a temperature range of -10°C to +55°C, with an intelligent thermal safeguard that adjusts the IR illuminator in high heat. It offers flexible power options via PoE, PoE+, or 12VDC, supported by WisePower monitoring and redundancy failover to ensure continuous uptime. This versatile unit is compatible with various standard gang boxes, supports digital PTZ and rotation, and meets essential certifications including FCC, CE, and UL.
