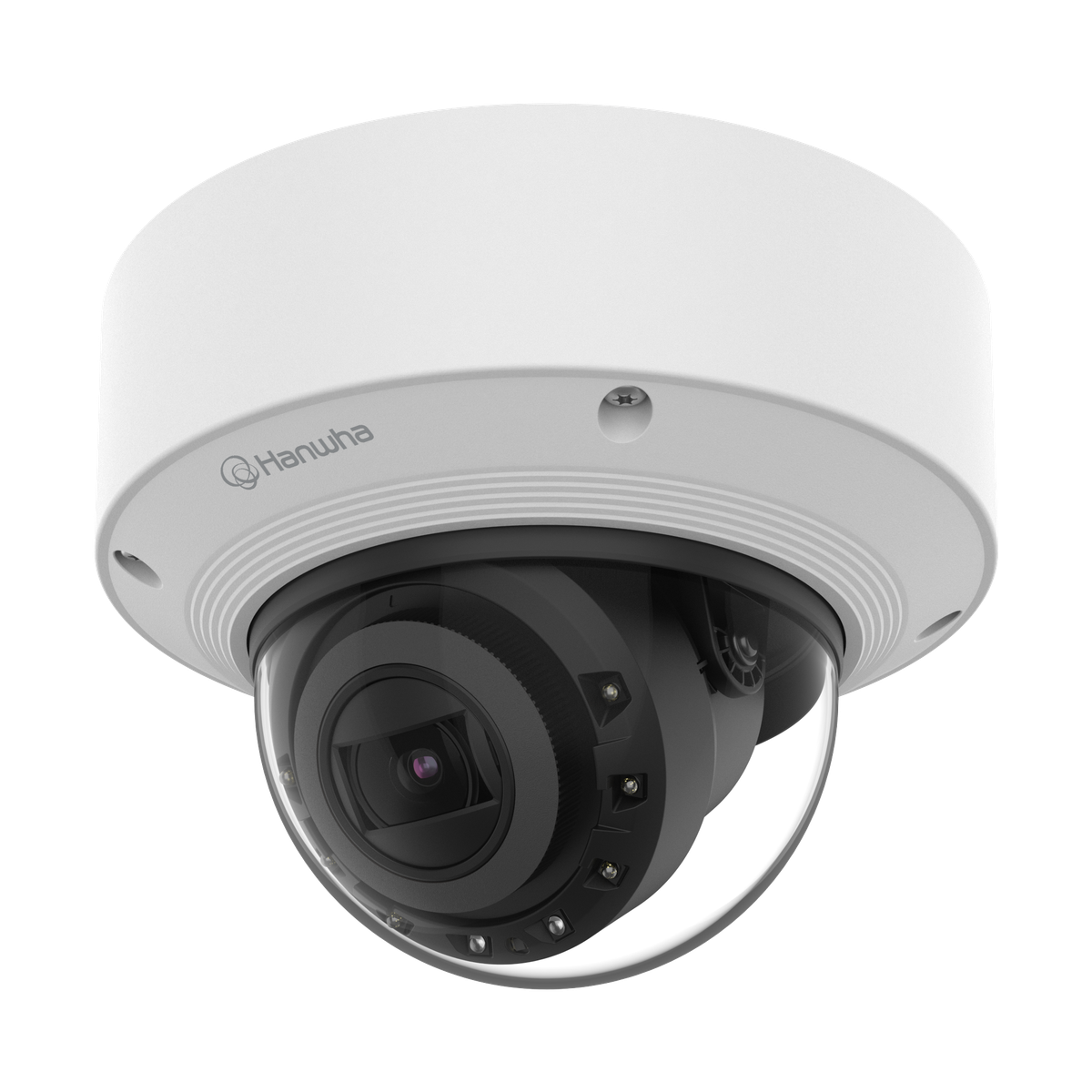

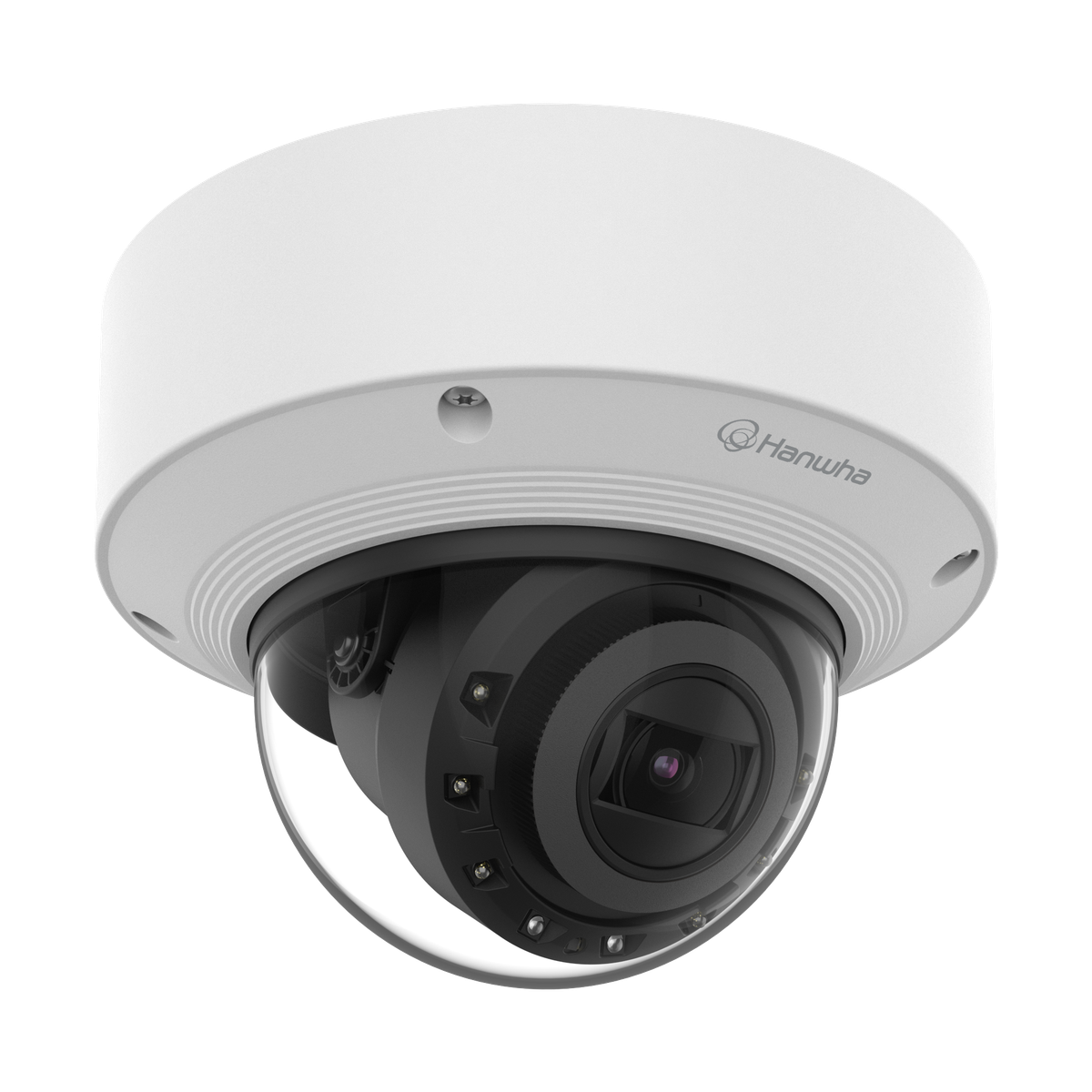

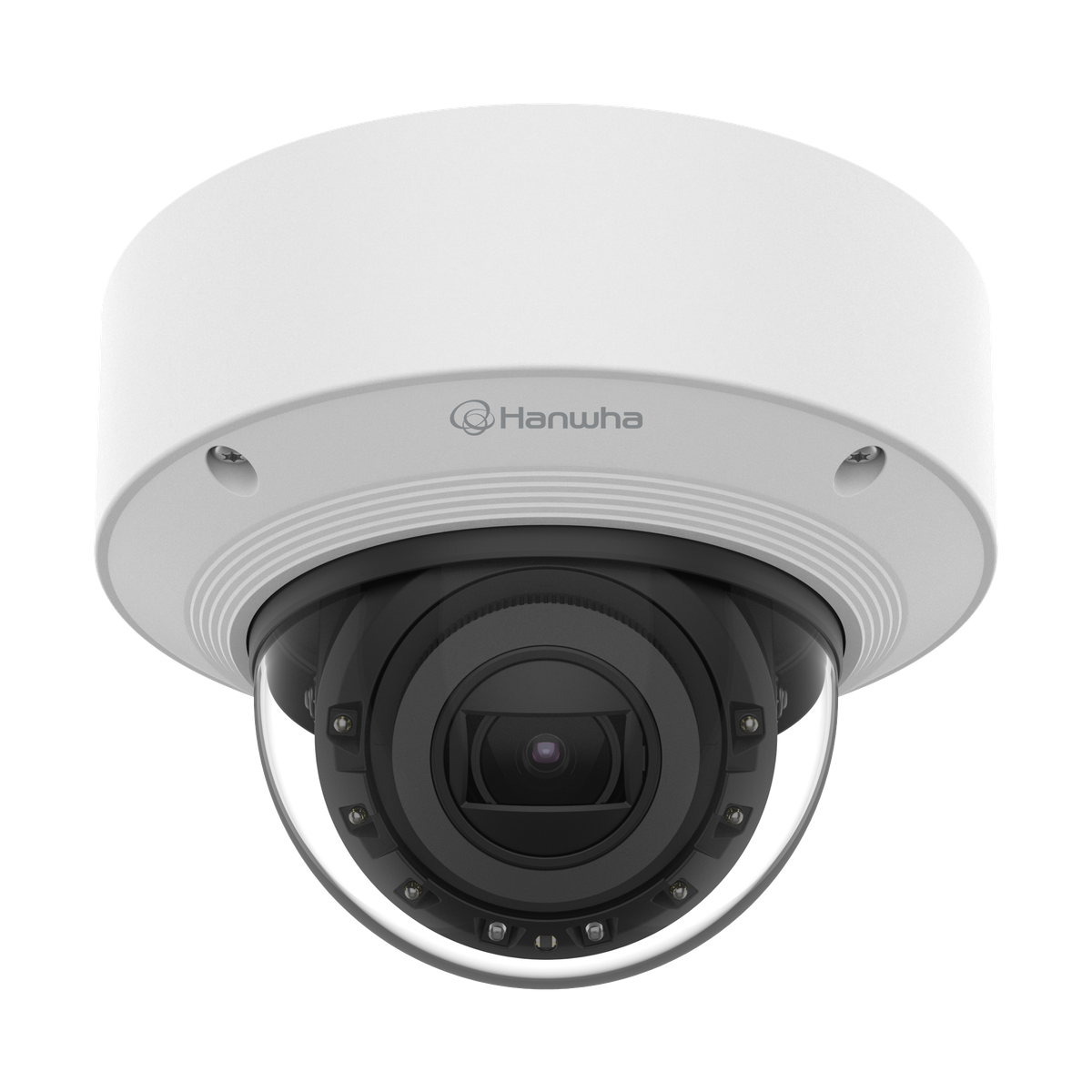

Hanwha - XNV-A6084R - 2MP IR Outdoor Vandal Dome AI Camera

Product Overview

The Hanwha Vision XNV-A6084R is a high-performance 2MP AI vandal dome camera featuring a 2.8~12mm motorized varifocal lens with 4.3x optical zoom and a 150dB WDR for extreme clarity. It delivers smooth 1080p video at 60 fps, utilizing WiseIR to illuminate up to 50m and a dual NPU for AI-driven image optimization. Built for demanding environments with IP66/IP67 and IK10 ratings, it offers specialized AI analytics, including face mask, social distancing, and slip & fall detection, alongside robust business intelligence tools like crowd counting, queue management, and heatmaps.

Configuration

• • Imaging device: 1/2.8" CMOS; resolution: 1920×1080 (2MP)
• • Lens: 2.8~12mm motorized varifocal (4.3x optical zoom), P-iris (IR corrected)
• • Angular FOV: horizontal 120° (wide) to 27° (tele); diagonal 143° to 32°
• • IR wavelength: 850nm; WiseIR viewable length: up to 50m (164.04ft)
• • Max framerate: 60 fps (H.265/H.264), 30 fps (MJPEG)

Features

It features high sensitivity at 0.02 lux in color and a dual NPU for AI-enhanced imaging with 150dB WDR and Digital Image Stabilization. Its advanced AI engine provides specialized safety analytics like slip & fall, face mask, and social distancing detection, while BestShot captures detailed attributes including age, gender, and clothing color. Designed for versatile monitoring with Hallway View and LDC support, it also delivers actionable business data via crowd counting and heatmaps, supported by selectable audio inputs and two configurable alarm I/O ports.

Technical Context

Powered by the Wisenet 9 SoC with 4GB RAM, this camera utilizes H.265/H.264 and AI-based WiseStream to efficiently manage up to 5 streaming profiles and 3 virtual channels. It supports a wide range of protocols, including MQTT and IPv6, with ONVIF Profiles S, G, T, and M for seamless integration and direct cloud connection support. The system ensures top-tier security through FIPS 140-3 Level 3 hardware, IEC 62443-4-1 certification, and secure boot, while providing edge storage via a 1TB Micro SD slot for robust data retention.

Installation Notes

It is a robust white aluminum vandal dome weighing 2.74 lbs, featuring IP66/IP67, IK10, and NEMA 4X ratings for extreme durability. It operates from -40°C to +55°C with an integrated AIR vent for humidity control and features a flexible 3-axis adjustment mechanism for precise positioning. Optimized for efficiency, it runs exclusively on PoE with a maximum consumption of 10.2W, supporting WisePower Eco mode and simple focus control. The camera is highly certified, meeting NEMA TS 2 and UL 62368-1 standards, and includes a USB Type-C port for easy installation and a sustainable design incorporating recycled plastic.
