Hanwha - XRN-6420B2 - 8K NVR (Intel based), 64Ch, No HDD, 8 SATA HDD bays (up to 10TB per HDD), H.265/H.264/MJPEG, SUNAPI, ONVIF, ARB (Automatic Recovery Backup) & Failover (N+1), Up To 520 Mbps Recording / Up To 200 Mbps Playback, Dual Stream Record
Part number:
Price:
• 64CH, 32MP resolution
• SATA 8 HDD Bays (up to 80TB)
• Up to 520Mbps recording / transmission bandwidth
• Easy Channel/Event/Alarm configuration
• Virtual Channel View
• Dynamic layout
• Built-in Support for Web Management (up to 100)
• Compatible with Wisenet Viewer, Wisenet mobile
• NDAA compliant and TPM integrated
• Manual event support
| Display | |
|---|---|
| Network camera Inputs | Max. 64CH |
| Resolution | 32MP ~ CIF |
| Protocols | SUNAPI, ONVIF |
| Decoding Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz) |
| Multi Screen Display | [Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 64 Division - Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 32 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
| Resolution | 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(4ch@30fps), 1080p(16ch@30fps), 720P(32ch@30fps), D1(64ch@30fps) |
| Performance | |
| Operating System | Embedded Linux |
| Record Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Distributed mode : Up to 520 Mbps, Normal mode : Up to 300 Mbps |
| Resolution | 32MP ~ CIF |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
| Search & Play Playback Bandwidth | Up to 200Mbps(64CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous playback | Max. 112CH(Local 64CH, Remote 16CH per user) |
| Fisheye Dewarping | Support (Local 1CH), CMS |
| Mode | Time/Event/Text/ARB/Bookmark/Smart search |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage Supported HDD | Up to 10TB |
| HDD Slot | SATA 8ea(Max. 80TB) |
| External | iSCSI storage |
| Backup File backup | Recorder/SEC/AVI/JPG(Local), AVI/PNG(Network) |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, RTCP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 520Mbps |
| Audio Input/Output | 64 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) |
| Audio Communication | 2-Way |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) |
| Security | IP address filtering, User access Log, 802.1x, TLS, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware, TPM support |
| Web viewer Supported OS | Windows10 or higher, macOS 13.5.2 or higher |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
| Function | |
| Camera Setup Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ Control | Via GUI, Webviewer, SPC-2000/2001 |
| Preset | 300 Presets |
| Smart phone Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH |
| Max. Remote Users | Search(3), Live Unicast(10) |
| Redundancy Failover | N+1 |
| ARB | Support |
| Easy configuration | P2P(QR code) |

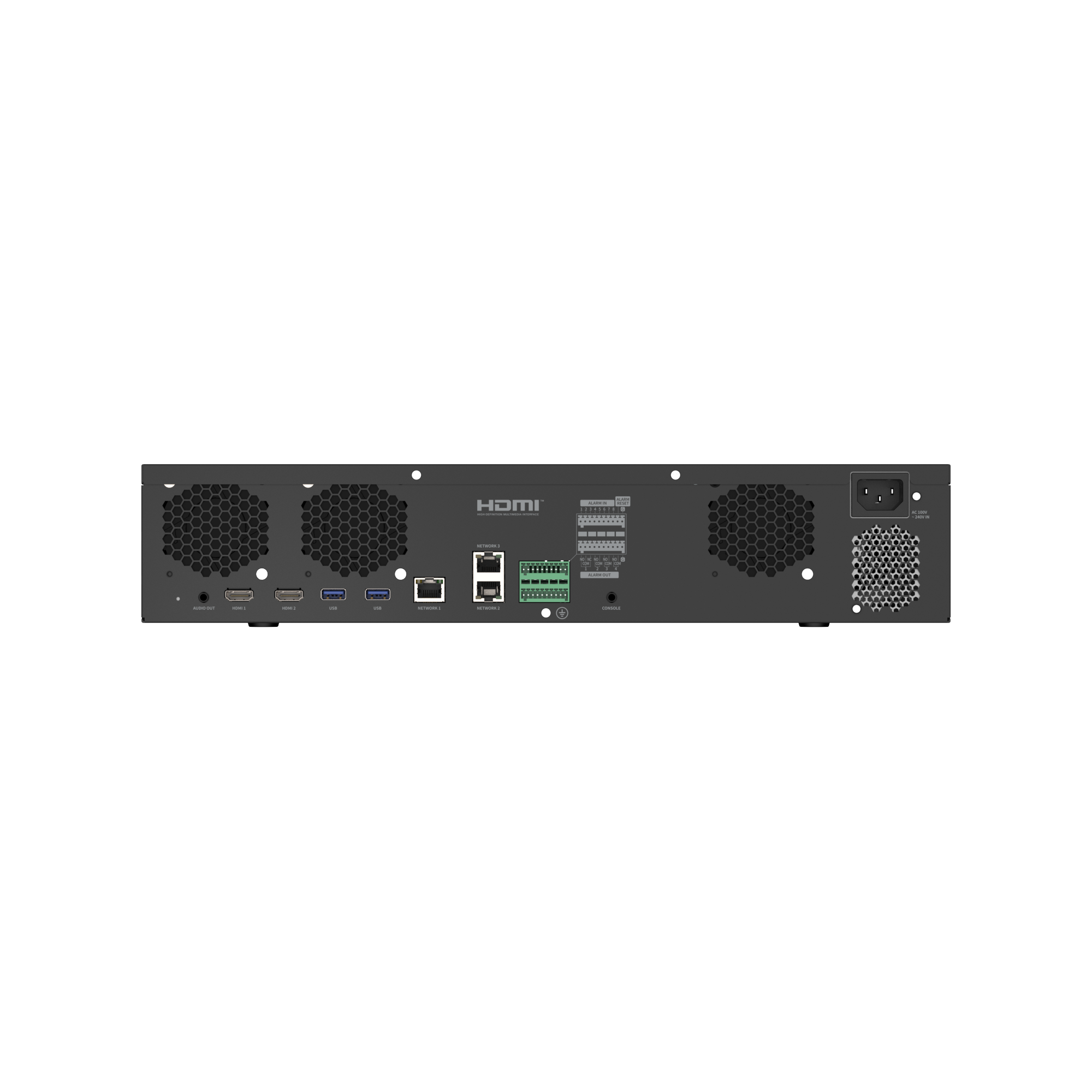

| Interface | |
| Front Indicator | HDD, Alarm, Power, Record, Backup, Network |
| Storage | Yes |
| Reset | Power button |
| HDMI | 2EA (Playback/Setup → HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz |
| Audio | Out 1EA (3.5mm Audio Jack) |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) |
| Alarm | In 8EA, Out 4EA |
| USB | 4EA(Front 2 x USB2.0 + Rear 2 x USB 3.0) |
| Power inlet | AC 1EA |
| System | |
| Log Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse(include wireless), Keyboard(include wireless), Web, Controller (SPC-2000/2001) |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60Hz, 1.5A(Single SMPS) |
| Power Consumption | Max. 143W (488BTU with HDD 8ea) |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension | 438.0 x 86.0 x 434.9 mm (17.47 x 3.39 x 17.12 inch) |
| Weight | 7.3Kg (16.1lb, Except HDD) |
| Intelligent Analysis | |
| AI Search Object Attribute | Compatible with Hanwha AI Cameras |
