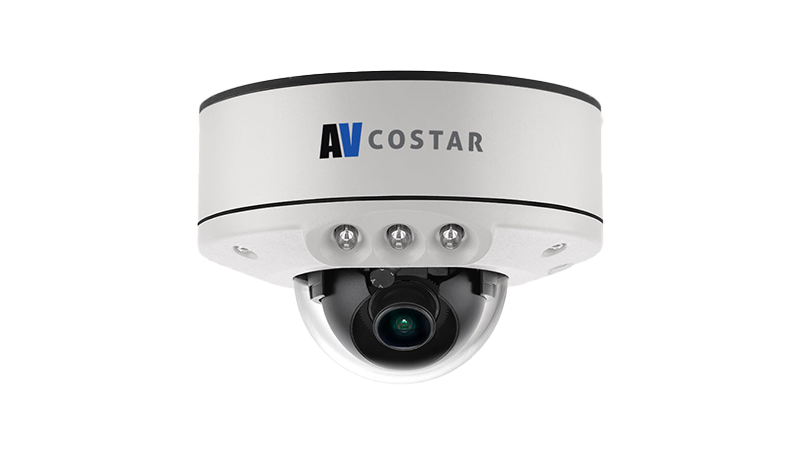

AV8856DNIR-S - 8MP Ultra-Compact MicroDome Surface Mount - IDIS
Part number:
Price:
- • 8MP (4K) Resolution
- • Fixed Lens 2.8mm
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • IK10 / IP66
- • Alarm in / out
- • PoE (IEEE 802.3af Class 3), 12V DC
- • IR LED (15m / 50 ft (3ea))
- • Easily Adjustable 3-Axis Gimbal
- • NDAA Compliant
- • Supports ONVIF
| Camera | |
|---|---|
| Image Sensor | 8MP CMOS Progressive |
| Optical Format | 1/2.8" |
| Minimum Illumination (Color - Day Mode) | 0.18 Lux |
| Minimum Illumination (B/W - Night Mode) | 0.018 Lux |
| Full FOV Resolution | 3840 H x 2160 V |
| Scaling | Yes |
| IR Illumination | Yes |
| Dynamic Range | 120dB |
| Frame Rates (Multi-Stream, WDR Off) | Up to 30fps (8MP) + 30fps (1440p) + 30fps (360p) |
| Frame Rates (Multi-Stream, WDR On) | Up to 30fps (8MP) + 30fps (1440p) + 30fps (360p) |
| Lens | (Fixed Iris) MPM2.8C 2.8mm, 1/2.7", F/1.6, IR corrected, M12-mount (H-FOV) 106.7° |
| Programmability | |
| Optics | M12 lens and remote focus module |
| Low-Light Performance | NightView technology, IR (All Models) |
| Programmable Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | CorridorView (90°, 180°, and 270° image rotation) + mirror |
| Scaling (1080p) | 1920x1080, 1280x720, 960x540, 640x480, 640x360 |
| Scaling (5MP) | 2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720, 960x540, 640x480, 640x360 |
| Scaling (8MP) | 3840x2160, 2592x1944, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 960x540, 640x480, 640x360 |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Miscellaneous Controls | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Video | |
| Standard Video Analytics | Motion Detection Camera Tamper Intrusion Detection Line Crossing Loitering |
| Optional Advanced Video Analytics | Object Classification (Person/Vehicle) Object Left/Removed People/Vehicle Counting |
| Data | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 8MP: 512K–8000K |
| Smart Codec | Smart GOP |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, TLS 1.2, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
| Event | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send a message via e-mail/FTP/NAS, SD Card Recording, Record JPG/MP4 |
| Compliance & Listings | |
| Industry Standard | ONVIF Profile S, G, M, and T conformant |
| Listings | UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings (CE) | EN55032 Class A, EN55035, EN61000-3-2, EN61000-3-3, IEC 62471 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) (-S Models Only) |
| Environmental | |
| Operating Temperature | -5°C (23°F) to +50°C (122°F) (-F Models) -20°C (-4°F) to +50°C (122°F) (-S Models) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 Total PoE solution (no external power) |
| Power Consumption | 7.5W PoE max (8MP) |
| IR Illuminator | |
| LEDs | 3 pcs 850nm LEDs |
| Projection Distance | 50ft (15m) IR distance (max) / 80° IR angle |
| Mechanical | |
| Casing | Tamper-resistant housing, IK-10 impact-resistant (-F Model) In-ceiling mount with die-cast aluminum cover and 2" polycarbonate dome bubble (-S Model) Surface mount with die-cast aluminum housing and 2" polycarbonate dome bubble IP66 weather proof standard 3/8" NPT w/ 1/2" NPT adapter included |
| Lens | 2.8mm board mount (M12), fixed iris, F/1.6 |
| Gimbal | Easy 3-axis camera adjustment w/ 359° pan and 90° tilt and 360° z-axis |
| Unit Dimensions | Ø 4" (100mm) x 3.1" H (78.5mm) |
| Packaged Dimensions | 5.6" W (142mm) x 5.6" L (142mm) x 3.5" H (90mm) |
| Unit Weight | 0.95lbs (0.43kg) |
| Packaged Weight | 1.3lbs (0.6kg) |
| On Board Storage | MicroSDXC slot up to 1TB (card not included) |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) |
Name
Description
Size
Downloads
File
AV8856DNIR-S_Datasheet.pdf
0.4mb
File
AV8856DNIR-S_Brochure.pdf
0.7mb
This is an 8-megapixel (4K) ultra-compact outdoor surface-mount microdome IP camera. It uses a 1/2.8" CMOS sensor with a native resolution of 3840 x 2160 and features a fixed M12-mount lens with a focal length of 2.8mm (F1.6) and a 106.7-degree horizontal field of view. It has integrated IR illumination with a maximum distance of 50 ft (15m) and an 80-degree angle. The camera supports video compression in H.265, H.264, and MJPEG formats. The camera includes a 120dB WDR function, day/night operation, Smart IR, and features like CorridorView image rotation. It is housed in an IK-10 and IP66-rated tamper-resistant casing. It operates on PoE (802.3af), with max consumption of 7.5W, and within a temperature range of -20°C to +50°C (-4°F to 122°F) for the -S model.
