CVI2MV2 - 2 x HDMI Output IP Video Matrix - IDIS
• Supports computer keyboard & Mouse direct input, Flash storage.
• It can identify the optimum resolution automatically, or change the output resolution manually, each output supports up to 3840x2160@60Hz.
• Support 4K, 1080P, 1080I, 720P, D1 video format
• Support standard H.265, H.264, MPEG4
• Single module support 1ch x 4K or 2ch x 1080P
• Support video-splitting output, on each HDMI monitor for up to 5x5 maximum windows
• Support monitor splicing and display
• Support audio input and output, also monitoring, broadcasting and intercom are supported
• Support OSD, title, time and warning information can overlap on the video
• Cooperate with branded name IPC without use of stream media server(compatible with Onvif, RTSP protocols)
| Power | |
|---|---|
| Power Supply | 12VDC, 2Amp |
| Interface | |
| HDMI Output | 2 CH |
| Ethernet | 100M/1000Mbps / RJ45 |
| Audio Input | 1 ch, Ф3.5 earphone socket |
| USB 2.0 | Supported |
| RS232 | Supported |
| Audio | |
| Codec Support | G.711, G.726, ADPCM Audio encode/decode |
| Channel Control | Supports all channels and single channel quick setting individually. |
| Module Capability | One module supports 1CH audio input encode; can be set to open/close audio input. |
| Video | |
| Network Video Decoding | H.265, H264, MPEG4 |
| Network Video Input | 4K, 1080P, 1080I, 720P, D1 |
| HDMI Output Resolutions | 1024x768P@60Hz, 1280x720P@60Hz, 1366x768P@60Hz, 1920x1080P@60Hz, 3840x2160P@60Hz |
| Module Decoding Capacity | One module supports: 4CH 4K / 16CH 1080P / 32CH 720P / 64CH D1 |
| Monitor Splitting & Display | Support 4/9/16/25 splitting & display. Time display, Monitor No. display. Support titles overlaying, maximum 40 characters per title. Alarm information display. |
| General | |
| Approvals | FCC, CE, KC |
| Humidity | 10% ~ 90% |
| Operating Temperature | 0°C ~ 55°C (-32°F ~ 131°F) |
| Dimensions (L x H x D) | 5.57” x 1.41” x 6.0” (141.5mm x 36mm x 154.2mm) |
| Weight | 1.6 lbs. (740g) |

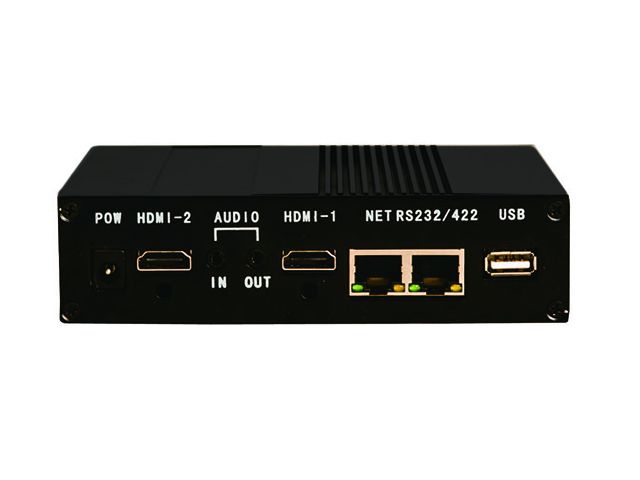

This is a 2-output HDMI IP video matrix decoder. It decodes network video streams in H.265, H.264, and MPEG4 formats, supporting input resolutions up to 4K. One decoder module can handle 4 channels of 4K, 16 channels of 1080p, 32 channels of 720p, or 64 channels of D1 resolution. Video can be displayed in 4/9/16/25 split-screen layouts on monitors connected to its two HDMI outputs, which support resolutions up to 3840x2160@60Hz. The unit is powered by 12VDC, 2A and connects via a Gigabit Ethernet port. It also features one 3.5mm audio input, USB 2.0, and RS232 ports. It operates within a temperature range of 0°C to 55°C (32°F to 131°F) at 10% to 90% humidity.
