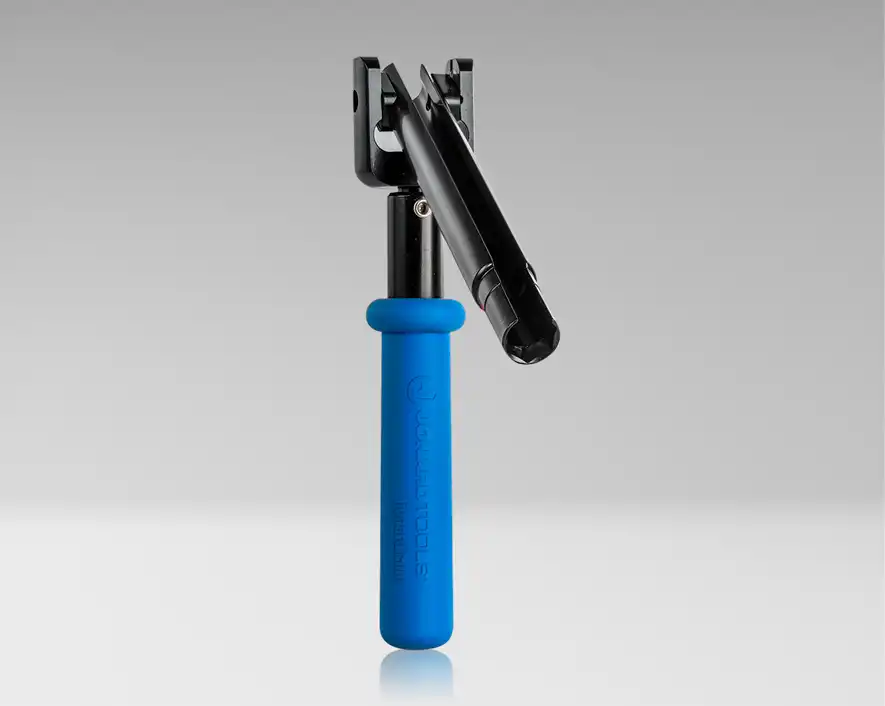

Jonard - TWAFST-71622 - Right Angle Torque Wrench, Swivel Head, 22 in-lb with SST 7/16"
Part number:
Price:
• Provides a snug fit when used with 7/16" F connectors.
• The security shield is permanently attached and pivots in 90° increments.
• Calibrated to 22 in-lb (2.49 N-m) to consistently meet the recommended torque requirements of most manufacturers for their F connectors.
• An audible click indicates when the connector has been fully torqued to 22 in-lb.
• Made of high-carbon steel with a black oxide finish for maximum durability.
• Lifetime warranty.
| Head Type | Swivel |
| Torque | 22 in-lb (2.49 N-m) |
| Size | 7/16" (11.11 mm) Shield |
| Security Shield Length | 4 3/4" (120 mm) |
| Material | High Carbon Alloy Steel |
| Finish | Black Oxide |
| Handle Type | Ergonomic Cushion Grip |
| Handle Color | Red |
| Dimensions | 11 in x 1.33 in x 1.1 in (27.94 cm x 3.38 cm x 2.79 cm) |
| Weight | 0.73 lb (332.328 g) |
Name
Description
Size
Downloads
File
Data Sheet - Right Angle Torque Wrench-Swivel Head with SST - TWAFST-71622-30_0.pdf
0.4mb
With a preset torque of 22 in-lb, this right-angle swivel torque wrench is designed to reach shielded F connector fittings. It provides the perfect amount of torque to prevent damage from overtightening or signal loss from undertightening.
