SECO-LARM - SL-1301-SAQ/C - 10~24 VDC LED Strobe Clear Light Lens

Product Overview

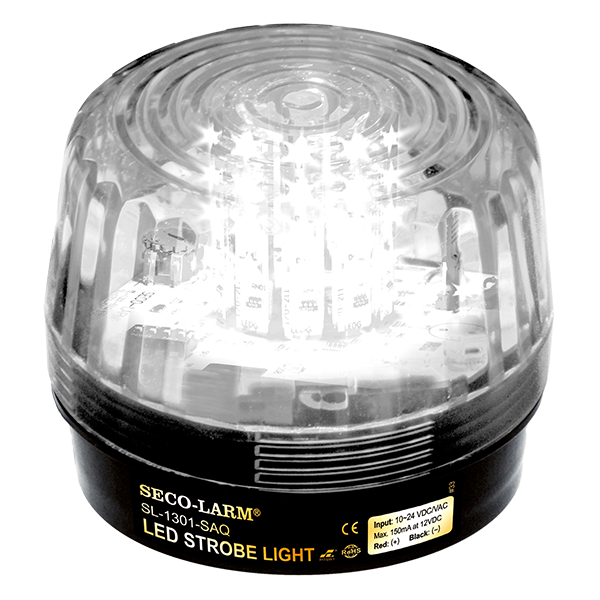

The SECO‑LARM SL‑1301‑SAQ/C is a 10‑24 VAC/VDC LED strobe light with a built‑in programmable 100 dB siren, featuring 54 LEDs, a 50,000‑hour operating life, 6 adjustable flash patterns, and an IP55 weatherproof rating. The clear lens housing (also available in amber, blue, green, and red) includes 10 vertical LED strips that provide 360° visibility from various directions, with simple 2‑wire installation, reverse polarity protection, and an optional backup battery for continuous operation during power loss.

Key Configuration

• Operating voltage: 9-24 VAC/VDC
• Current draw: 90-550mA (varies by voltage)
• Flash patterns: 6 selectable
• Flashing speed: Adjustable 80-160 flashes/min
• Total LEDs: 54 (10 vertical strips)
• Built-in siren: 100 dB

Key Features

A combination of high-intensity LED strobe and audible signaling, featuring 10 vertical LED strips with 54 LEDs that ensure 360° visibility from multiple angles, like for security, emergency, and industrial warning applications. It offers 6 adjustable flash patterns, a built-in programmable 100 dB siren with selectable alarm tones, and an optional backup battery (sold separately) that provides up to 2 hours of steady-on or strobe flashing during power loss.

Installation Notes

It operates from -20°C to 65°C on 9‑24 VAC/VDC (90‑550mA) with a simple 2‑wire connection. The strobe offers 6 flash patterns adjustable from 80‑160 flashes per minute, with reverse polarity protection and a clear lens. Measures 100 × 74 mm (3.94" × 2.91").
