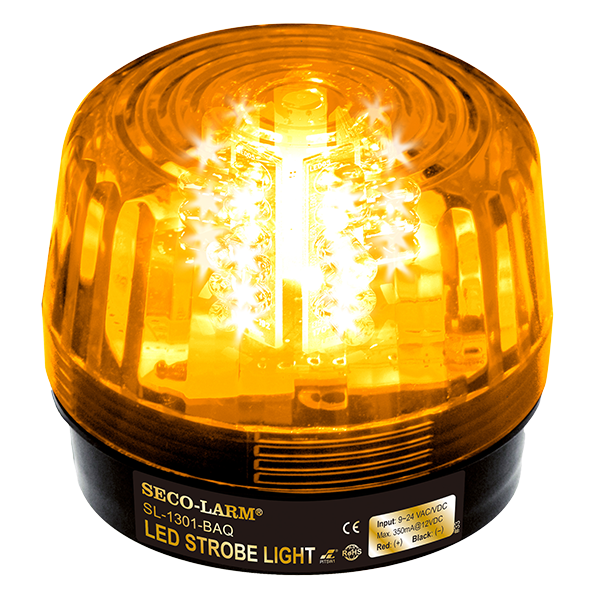

SECO-LARM - SL-1301-BAQ/A - 9~24 VAC/VDC LED Strobe Amber Light Lens
The SECO‑LARM SL‑1301‑BAQ/A is a 9–24 VAC/VDC LED strobe light featuring 32 LEDs with a 50,000‑hour operating life — over 160 times longer than traditional strobe bulbs, eliminating the need for replacements. It offers 8 selectable flash patterns, adjustable flashing speed, and a unique LED placement for enhanced visibility from multiple directions. Designed for indoor or outdoor use with an amber lens, the BAQ series also includes an optional 9V backup battery for continuous lighting applications, along with adjustable duty cycle and strobe speed settings for versatile signaling needs.
Key Features:
• Operating life: Over 50,000 hours.
• Form factor: Same size as the SL-126Q strobe light series and compatible with the same lenses.
• Installation: Simple 2-wire connection.
• Housing: High-impact resistant enclosure.
• Lens: High-impact and heat-resistant construction.
• Protection: IP66 weatherproof design.
• Safety: Reverse polarity protection.

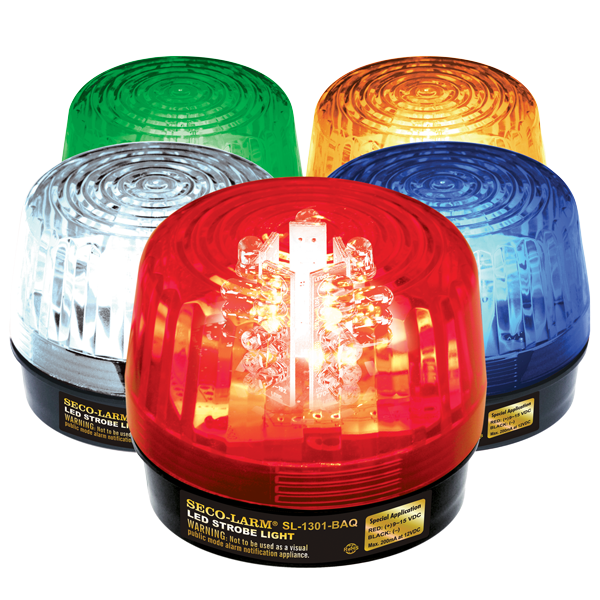

• Lens colors: Available in amber, blue, green, red, and clear.
• Visibility: 5 vertical LED strips (32 LEDs) for enhanced multi-angle visibility.
• Flash modes: 8 selectable flashing patterns with adjustable flash speed.
• Backup power: Optional backup battery support for continuous lighting applications.
| Operating Voltage | 9-24 VAC/VDC |
| Current Draw (Max.) | 70~350mA |
| No. of Flash Patterns | 8 |
| Flashing Speed | Adjustable 80~160 times/min |
| Vertical LED Strips | 5 |
| Total No. of LEDs | 32 |
| Backup Battery | Steady ON – Up to 4 hours. Strobe flashing – Up to 5 hours. |
| Operating Temperature | -4°~144° F (-20°~65° C) |
| Electrical Protection | Reverse polarity protection |
| Built-in Siren | No |
| Operating Life | Over 50,000 hours (Over 5.7 years) |
| IP Rating | Weatherproof IP66 |
| Dimensions | 3-15/16″ x 2-29/32″ (100 x 74 mm) |
