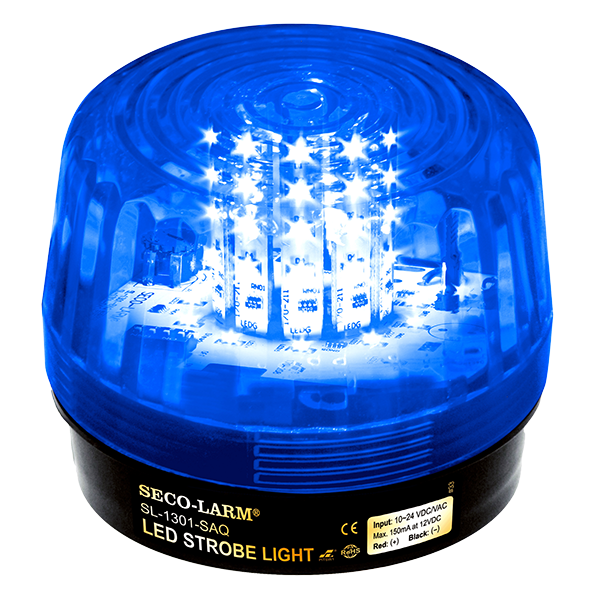

SECO-LARM - SL-1301-SAQ/B - 10~24 VDC LED Strobe Blue Light Siren Lens

Part number:
SL-1301-SAQ/B
Price:

The SECO‑LARM SL‑1301‑SAQ/B is a 10–24 VDC LED strobe light with a built‑in programmable 100 dB siren, featuring 54 LEDs with a 50,000‑hour operating life — over 160 times longer than traditional strobe bulbs, eliminating the need for replacements. It offers 8 selectable flash patterns (six listed, with additional patterns available), adjustable flashing speed, and unique LED placement for enhanced visibility from multiple directions. Designed for indoor or outdoor use with a blue lens, the SAQ series also includes an optional 9V backup battery for continuous lighting applications, along with adjustable duty cycle and strobe speed settings for versatile signaling needs.



Key Features:

  • • Operating life over 50,000 hours
  • • Same size as the SL-126Q strobe light & uses the same lenses
  • • Simple 2-wire installation
  • • High-impact resistant case
  • • High-impact and heat-resistant lens
    ​• Weatherproof (IP55)
  • • Reverse polarity protection
  • • 5 lens colors available: Amber, Blue, Green, Red, and Clear
  • • 10 Vertical LED strips (54 LEDs) increase visibility from various directions.
  • • 8 different flashing options, plus adjustable flashing speed
  • • Backup battery available for continuous lighting applications
  • • Built-in 100dB siren (programmable)
Operating Voltage9~24 VAC/VDC
Current Draw (Max.)90~550mA
No. of Flash Patterns6
Flashing SpeedAdjustable 80~160 times/min
Vertical LED Strips10
Total No. of LEDs54
Backup BatterySteady ON – Up to 2 hours. Strobe flashing – Up to 2 hours.
Operating Temperature-4°~144° F (-20°~65° C)
Electrical ProtectionReverse polarity protection
Built-in SirenYes (100dB)
Operating LifeOver 50,000 hours (over 5.7 yrs.)
IP RatingWeatherproof IP55
Dimensions3-15/16″ x 2-29/32″ (100 x 74 mm)
