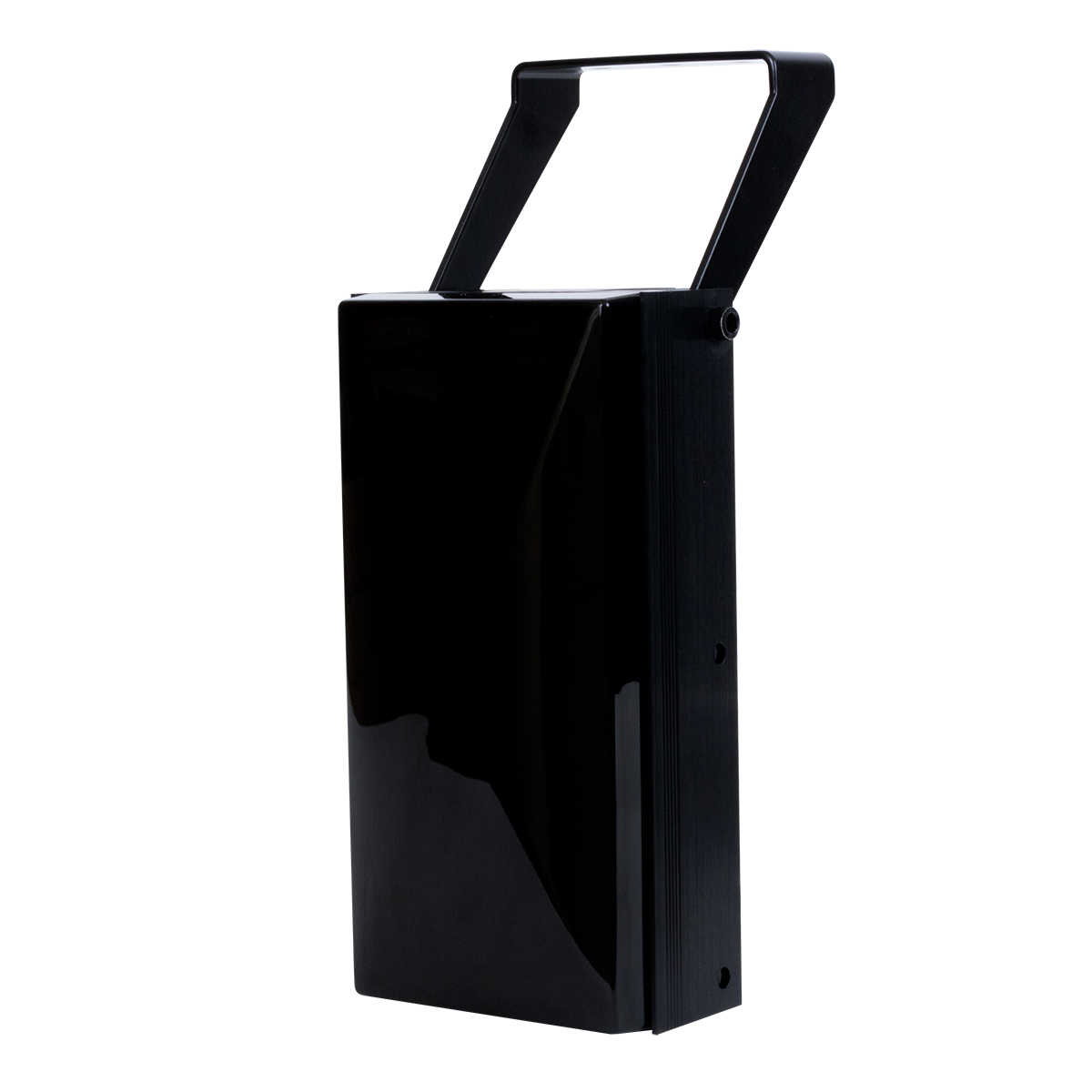

Long Range External IR Illuminator, SMT LED Technology, 236' (72m) Distance, 100⁰ Angle, 850nm Wavelength, Power: 12-32VDC / 24VAC

What is IR Illumination?

Active or near infra-red (NIR) illumination is energy which is invisible to the human eye but can be seen by a high quality true day/night camera (IR cut filter removed). The energy from IR illuminators resides just outside the visible red section of the electromagnetic spectrum, above 700nm and below 1000nm.

IR illumination is an ideal source of illumination for security cameras for the following reasons:

• It is invisible to the human eye but visible to black/white and true day/night cameras
• Avoids the problem of light pollution.
• Longer range than visible light

All Iluminar illuminators provide superior IR lighting for video surveillance systems. They are available with a range of angles to cover different distances and scenes. Supplied with an IP67 rating, they are vandal proof and can be used indoors and outdoors. The anodized aluminum housing provides protection from the harshest weather conditions. Professional Illuminators vs Camera Builtin Illuminators

There are many advantages of using separate, professional illuminators versus built-in camera infrared illuminators

Features:

• Longer life on the LED’s
• No hot spots
• Wider angles
• Longer range
• Avoids attracting insects to obscure camera view
• Super long range IR illuminator
• SMT LED technology
• Distances up to 919’ (280m)
• Angles 10o, 30o, 60o, 100 o & 120o
• 850nm or 940nm Wavelengths
• Low power consumption (48W)
• Long life
• 5 year warranty
• IP67 weatherproof rating
• Built-in photocell IR on/off
• Telemetry input for remote switching
• 12-32VDC or 24VAC input
