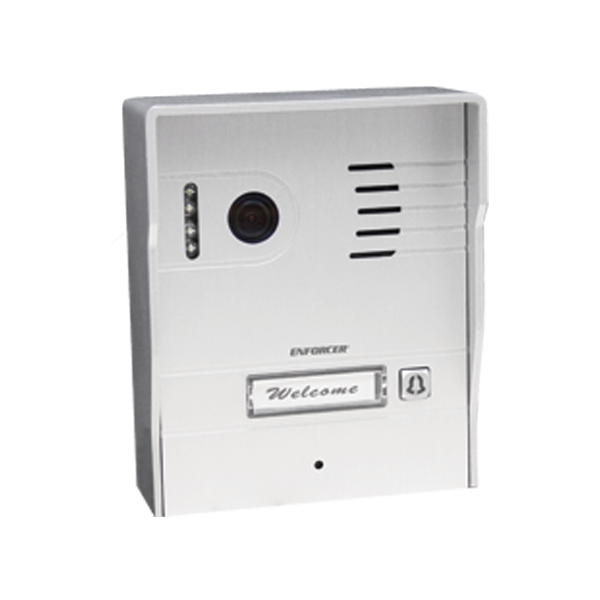

SECO-LARM - DP-264-1C7Q - Hands-Free Color Video Door Phone. Includes color CMOS camera with 700 TV lines, 2.1mm lens, and monitor with 7-inch TFT display. Four LEDs for Day/Night use. Simple 2-wire connection. Optional secondary monitor available DP
Part number:
DP-264-1C7Q
Price:
Hands-Free Color Video Door Phone. Includes color CMOS camera with 700 TV lines, 2.1mm lens, and monitor with 7-inch TFT display. Four LEDs for Day/Night use. Simple 2-wire connection. Optional secondary monitor available DP-264-M7Q, and secondary camera DP-264-CQ.
Features:
- Simple 2-wire connection
- Remotely and securely talk to visitors and unlock doors, gates, etc. from the monitor
- Easily connect 2 additional monitors and an additional camera
- Camera has four IR LEDs for nighttime operation
- Built-in microphone and speaker for hands-free two-way communication
- Soft-touch button operation
- Adjustable color tone, brightness, speaker, and ringer volume
- 700 TV Lines resolution, large 7″ screen
- (IP65) Weatherproof
| Current draw | 150mA |
| IP Rating | IP65 Weatherproof |
| Type | Color camera |
| CMOS | 1/3″ CMOS sensor |
| Resolution | 700 TV lines |
| Lens | 2.1mm |
| Relay output | 3A@30VDC max. dry contact |
| Operating temperature | -13°~149°F (-25°~65°C) |
| Weight | 1-lb, 6-oz (750g) |
| Dimensions | 4-7/16″x5-3/8″x2-1/16″ (112x136x52 mm) without sunshield |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
Manual
1.5mb
