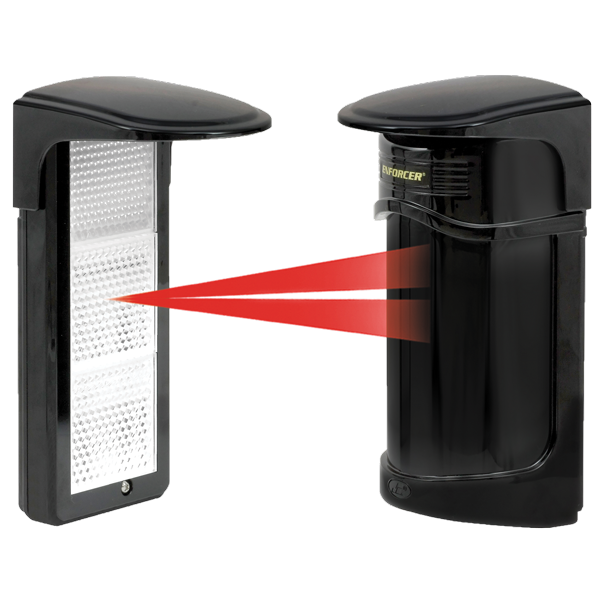

SECO-LARM - E-931-S50RRLQ - 50ft Large Reflective Sensor. Range: Up to 50 ft. 12~250 VAC/VDC. Larger sensor and reflector for more convenient alignment and adjustment. Wall or pole-mountable. Includes hood for sensor and reflector.
Part number:
E-931-S50RRLQ
Price:
50ft Large Reflective Sensor. Range: Up to 50 ft. 12~250 VAC/VDC. Larger sensor and reflector for more convenient alignment and adjustment. Wall or pole-mountable. Includes hood for sensor and reflector.
Features:
- Up to 50ft (15m) sensing range
- Large sensor with patented design and large reflector for a large sensing area and easier alignment
- Reflective beam provides reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
- Lensed optics reinforces beam strength and provides excellent immunity to false alarms due to rain, snow, mist, etc.
- Response time adjustable from 50~700 ms for nearly all situations
- NO/NC Alarm output
- 12~250 VAC/VDC operation
- Weatherproof (IP55), sunlight-filtering case for indoor and outdoor use
- Includes large reflector, hoods for sensor and reflector, and mounting hardware
Typical Applications
- For garage or overhead doors, outdoor gates
- Industrial automation: detect objects onmanufacturing line
| Type | 50Ft Large Reflective Beam Sensor |
| Current Draw | 100mA |
| Sensing Range | Up to 50′ (15m) |
| Operating Voltage | 12~250VAC/VDC |
| Reaction time | 50~700 ms (adjustable) |
| Light Source | IR LED |
| LEDs – Red | No beam signal, triggered |
| LEDs – Yellow | Poor beam signal |
| LEDs – Green | Connected to power |
| Alarm Output | NO/NC Relay, 0.5A@120VAC, min. 1s |
| Tamper Output | N.C.. Switch, 0.5A@30VDC |
| Switching Capacity | Alarm- 0.5A@120VAC, min. 1s, Tamper- 0.5A@30VAC |
| Operating Temperature | -13º~131º F (-25º~55º C) |
| Dimensions | 3-3/16″ x 7-3/16″ x 3-9/16″ (81 x 182 x 91 mm), Dimensions include hood. With hood, sensor and reflector have the same dimensions. |
| Alignment Angle | Horizontal: ±90º, vertical: ±5º |
| Weight | Sensor- 14.5-oz (410g) (with hood), Reflector- 8.8-oz (250g) (with hood) |
| Enclosure | Weatherproof IP55 |
