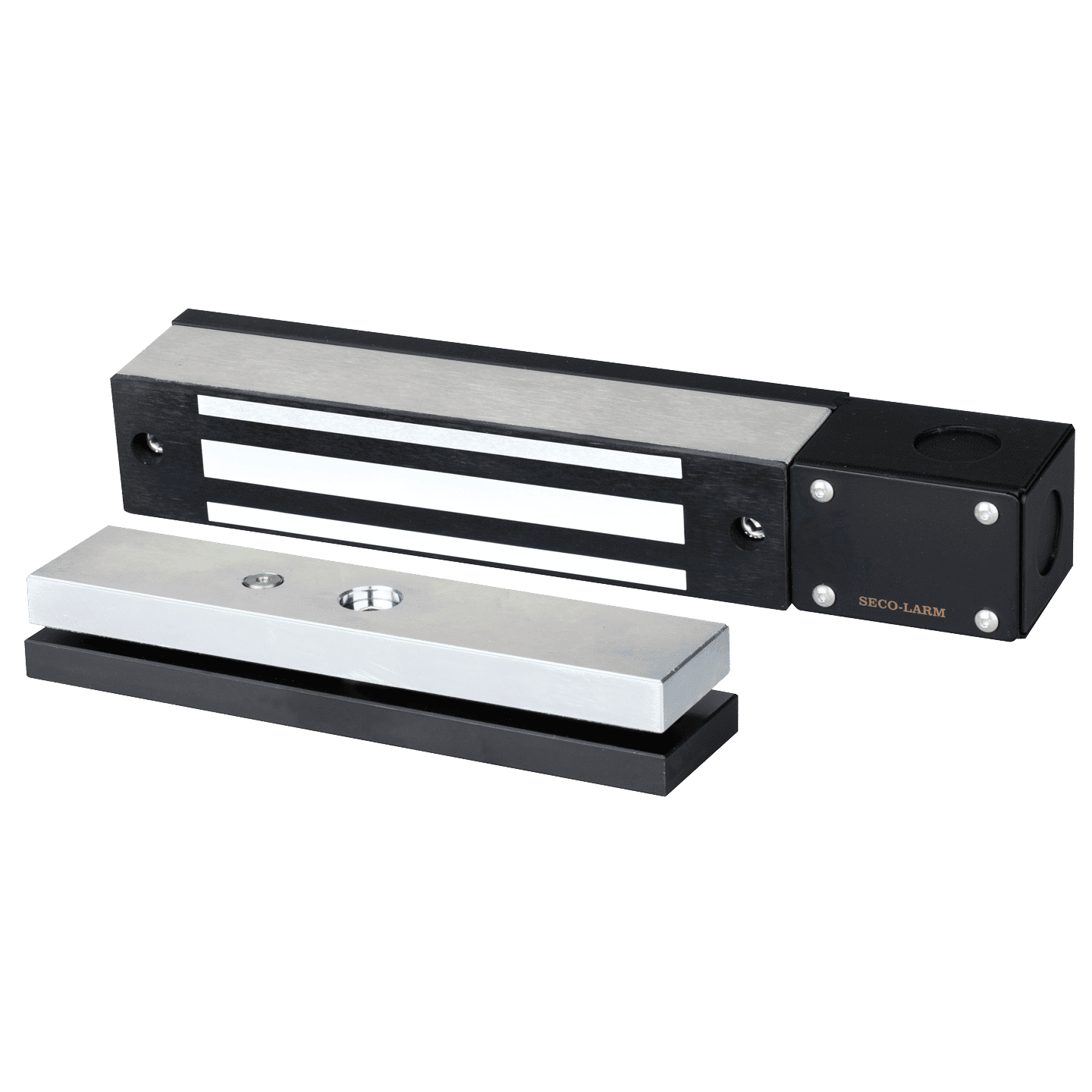

The SECO-LARM Electromagnetic Gate Lock with Weldable Bracket combines a strong and durable gate lock with a weldable bracket for ease of installation and greater security. With variants of both 1,200-lb (544kg) and 600-lb (272kg) holding force, it is suitable for almost any gate installation and can be installed horizontally as well as vertically.

Features:

• 12/24 VDC
• For use with nearly all types of outdoor sliding and swinging electric gates
• Low current draw of 500mA@12VDC, 250mA@24VDC
• Can be welded or bolted directly to gate and mounted horizontally or vertically
• Includes a magnetic lock with brackets for armature and magnet, mounting hardware included
• Zinc-plated brackets for corrosion resistance
• Maintenance-free, factory-sealed design, IP67 Waterproof
• Water- and vandal-resistant stainless-steel with black finish to match most gates
• Fail-safe operation (releases if power is removed)
• Four knockouts on junction box
